TX-1525ZP-2S Eight-station vertical flat screen printing machine
Scope of application:
This series of two-color turntable screen printing machines are suitable for precise color registration and LED UV fast curing of flat products such as plastic toys, plastic sheets, metal sheet metal parts, and square rulers.
|Maximum printing area||200x100(mm)|
|Number of printing heads||2|
|Maximum frame size||300x500(mm)|
|Maximum printing thickness||0-50（mm）|
|Feeding method Manual||人工|
1. The equipment is operated by a multi-position indexing mechanism, which integrates manual feeding/dust removal/automatic printing/LED curing/unloading, synchronous and fast running speed and accurate positioning, which not only improves work efficiency, but also saves space;
2. Eight-station precision cam divider sets up a disc conveying system to ensure the stability of printing

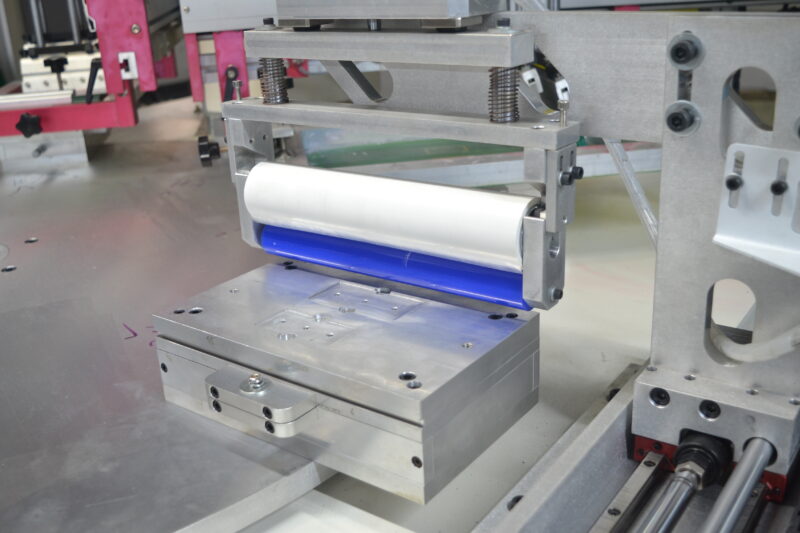

3. The equipment is equipped with a surface dust removal device, which can effectively reduce defects and improve printing quality;
4. The equipment is equipped with a servo automatic cutting manipulator to improve the efficiency of the equipment and the safety of operation;
5. The equipment tooling is equipped with automatic air suction function, which is conducive to improving the printing quality;
6. The equipment adopts Korean chip LED curing system, which not only ensures the operation efficiency of the equipment, but also is more energy-saving and environmentally friendly;
7. The equipment is controlled by intelligent PLC, and the visual operating system is displayed on the touch screen, which is convenient for operation and debugging;
8. The equipment intelligent control system can effectively monitor the operation of the equipment. When the equipment runs abnormally, it will automatically alarm and prompt the problem point on the screen to realize human-computer interaction;
9. The frame of the equipment is made of square tube and cold plate after welding, and the structure is firm and beautiful;
10. The whole machine has a high degree of intelligence and high efficiency, which not only effectively saves labor costs but also helps to enhance the corporate image.
① Before going to work, clean up the sundries on the machine and wipe the machine clean. Lubricating grease should be added regularly to moving parts such as guide rails, guide posts, and bearings.
② The workpiece table is a key component that affects the printing quality. It prevents the impact of hard objects. During printing, the ink cannot be removed. Organic solvents such as Tianna water drip onto the work surface.
③ The electric control panel and buttons should be prevented from being damaged by direct or indirect contact with solvents such as Tianna water, boiled oil and water.
④ The frame paint is to keep the machine from rusting, to prevent damage caused by direct or indirect contact with solvents such as Tianna water, boiled oil and water.
⑤ Drain the sewage and dirt in the oil mist combiner in time. To prevent the pneumatic components from being fed into the normal operation, clean the cup body regularly, and add Peng 2 lubricating oil to the oil cup of the oil mist combiner.
⑥ When adjusting the restrictor valve, the tightening nut must be loosened before adjusting by hand. The handle screw on the machine is used for positioning. After firmly positioning, there is no need to tighten it with excessive force.
⑦ After get off work, turn off the power/air source, clean the wire mesh, and keep it properly. Dust/pressure/hard object piercing.
