Glass panel printing production line scheme

Glass panel printing production line scheme

Description:

Contact Us

Phone:

+008613388610232

China office E-mail:

marketing@tx-uv.com

Inquiry

Category: Application Fields

Finished printed products:

Electronic glass panel production process:

CuttingEdge and corner treatment(edge grinding, etc)Tempering(chemical/physical)cleaningScreen printing(semi-auto/auto）Drying(tunnel/oven)CleaningBack gluePacking

Cleaning+Automatic screen printing+Drying tunnel

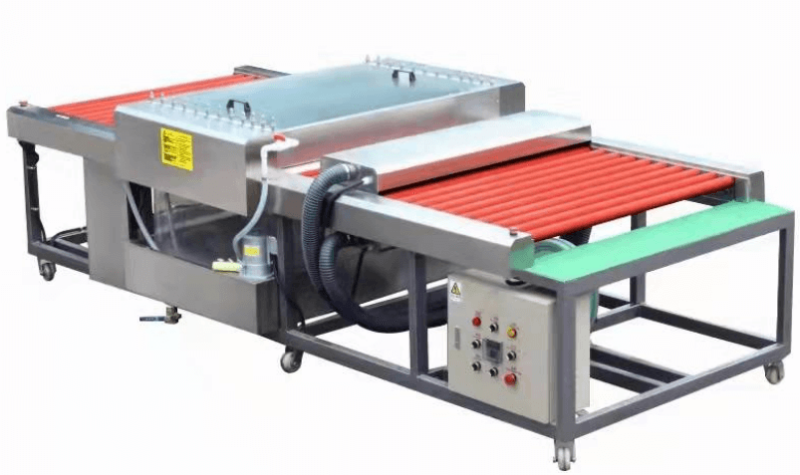

Cleaning machine

★Application

Be applied in the field of glass deep processing, it has a good cleaning and drying effect on the cleaning of various high-grade glass such as home appliances, light, electronics glass, etc.

★Detail picture

The machine adopts horizontal structure, put the flat glass on the transfer roller, through entrance part---- washing part (two-stage washing) ---- water absorption part---- drying part ---- exit part. Equip the Pneumatic lift sliding table can transfer speediness.

Glass transfer speed can reach to stepless speed adjustment according to the processing requirement. And we can adjust the glass with different thickness by using hand wheel and spring screw.

TX-4060BL glass screen printing machine

★Application

Fully-auto servo feeding glass silk screen printing machine is suitable for flat surface printing on glass, such as access control glass panel, smart home automation glass, kitchen appliance glass etc.

★Parameter

Specification For Fully-auto servo feeding glass silk screen printing machine
Model	TX-4060BL
Max Printing Size	*400600mm**
Table size	*700900mm**
Max frame size	*7001110mm**
Max printing speed	800(PCS/H)
Printing thickness	50mm(Max)
Air Pressure	4.0～6.0kfg/cm2
Power	2.2KW 380V

★Detail picture

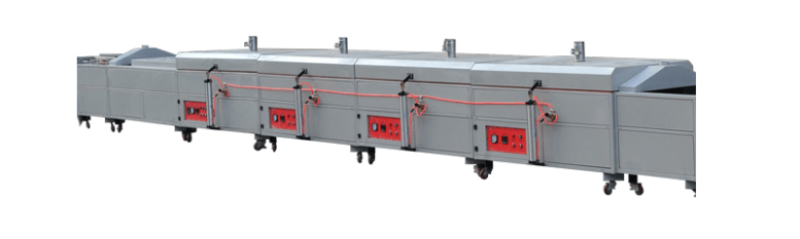

TX-IR80Drying tunnel

★Application

IR Conveyor Drying Tunnel Machine offered find application in the field of screen printing and are extensively used for table prints.

PARAMTERS

Model	TX-IR80	Loading length	1000mm
Unloading length	1000mm	IR length	2000mm *3=6000mm
Power	25 KW	Convey belt width	800mm
voltage	380V	Total length	8m

Detail picture

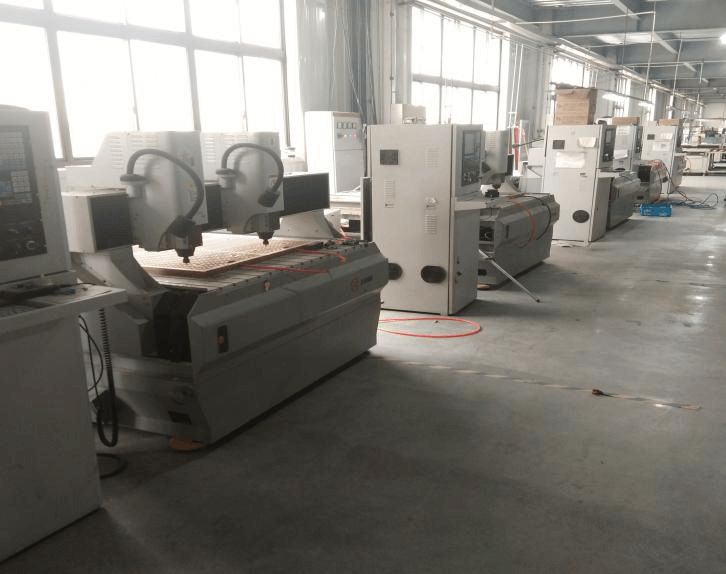

TaoXing Company Introduction
