Auto Side Corner Sealing Machine


Contact Us


    Product Name

    Category: Automatic case sealing machine, Packaging Equipment

    Product introduction

    The automatic folding and lid sealing machine matched with the automatic four-corner side sealing machine is of good quality, suitable for automatic I-shaped sealing of various specifications of cartons at the same time, without manual adjustment, which can greatly save labor and improve efficiency.


    Widely used in food, medicine, daily chemical, toys, electronics, printing and other industries.

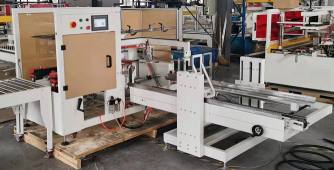

       Auto Side Carton Corner Sealing Machine


    Model : TX-JBF008-9LA

    Size : L2100 *W1200 *H1500mm

    Sealing speed: 300-360pcs /hour

    Suitable box size: Max L500*W500*H500mm Min L320*W200*H180mm

    Suitable tape :50-70mm

    Table size; 620-720mm(adjustable)

    Voltage: AC220V-380V/50Hz

    Air pressure : 5-6kg/cm2


     Full auto folding cap sealing machine


    Machine size :  L1800 *W980 *H1450mm

    Sealing speed: 20pcs/ min

    Suitable box size : max :L500*W500*H500mm


    Suitable tape: 48-75mm

    Table height: 580-750mm(adjustable)

    Voltage: AC220V/50Hz 240W

    Air pressure : 5-6kg/cm2

    G.W: 280KG

     Semi auto corner sealing machine


    Machine size : L1950 *W1330 *H1450mm

    Sealing speed: 460-600 carton/min

    Suitable box size :Max L700*W500*H500mm Min:L300*W200*H180mm

    Suitable tape : 50-70mm

    Table height: 620-720mm(adjustable)

    Voltage : AC220V-380V/50Hz

    Air pressure: 5-6kg/cm2

    N.W: 4000KG



    1. The operation is very simple, without any complicated operation procedures, and it is very practical, very durable, and the frequency of failure is very low. It is a very safe sealing machine to use;
    2. It can seal different specifications of cartons, which is very flexible;
    3. The four corners of the carton can be automatically sealed at the same time, and the packaging time is very short and the efficiency is very high.
    4. Compared with other sealing machines, the cost is relatively low.


    Machine details




    Glue belt fixing roller


     Controlling box

      Conveyor  belt

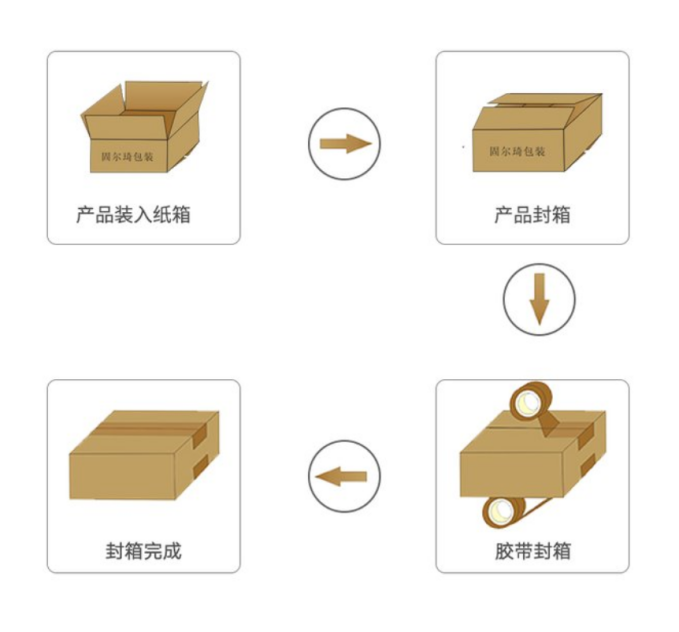

    Operate steps                              Application




    Packaged sample ★Precautions for use

    1. Regularly clean and maintain the inside and outside of the automatic carton sealing machine, especially after daily use, it is necessary to clean the residue on the cutter, so as not to affect the problem of tape cutting in the later stage.

    2. Regularly add lubricating oil. The use frequency of automatic carton sealing machine is generally large, and each component needs to run once for each carton sealed. Lubricating oil is added to keep these parts running smoothly and reduce wear. However, it should be noted here that the lubricating oil used must be special oil.

    3. Before use, check whether the automatic sealing machine is normal, and solve any problems in time. Be careful to cut off all power after shutdown

    TaoXing Company Introduction
    Taoxing automatic screen printing machine video compilation

    Service / FAQ


    ① We provide comprehensive one-stop services, customer training and satisfied after sales services.

    ② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.

    ③ Sold enjoy one year of free equipment warranty and lifetime technical support.


    Guarantee for Delivery

    Safety and fast logistic ensures the goods are delivered on the right time

    1. Packing: Plywood Case for Each Machine

    2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)

    3. Delivery date:60 business days after received the payment.

    4. Departure of port: By sea from Shanghai or Ningbo

    5. Delivery means: By sea by land


    Screen printing was a technique first used by the Chinese almost 2000 years ago. It is widely used at home and abroad. Chinese printing machine market has already become the focal point of the world have opened up. We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.


    If you are still confused how to start printing work, don’t worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.
