Manual Flaps Folding Carton Sealing Machine

Description:

Contact Us

Inquiry

    Product Name





    Category: Automatic case sealing machine, Packaging Equipment

    Description

    The automatic carton sealing machine is also called tape sealing and carton sealing. It is economical, fast and easy to adjust. It can complete the upper and lower sealing actions at one time, and can also use printing tape, which can improve the product image and is the first choice for automated packaging companies. It is suitable for sealing and packaging of cartons, which can be used alone or in combination with an assembly line.

    Application

    Widely used in household appliances, textiles, food, department stores, medicine, chemicals and other industries.



    Parameter

    Model TX-FX3025S left and right drive TX-FX4030X left and right drive TX-FX4030S left and right drive
     Machine size : L1350*W630*H1130mm L1350 *W630 *H1250mm L1350 *W630 *H1250mm
    Belt speed : 20m/min 20m/min 20m/min
    Box size : Max L150*W250*H300mm

    Min L150*W80*H90mm

    Max L130*W300*H400mm

    MinL130*W80*H90mm

    Max L130*W300*H400mm

    Min L130*W80*H90mm

     Suitable tape  size : 48-50mm 48-50mm 48-50mm
    Table height : 750mm 750mm 580-750mm(adjustable )
    Voltage : AC110-220V / 50Hz AC110-220V / 50Hz AC110-220V / 50Hz
    power: 180W 180W 180W
    N.W: 130KG 110KG 110KG

    characteristics:

    1. Suitable for high and heavy cartons,
    2. Change the specifications and adjust the width and height by hand.
    3. The transmission mode adopts the upper and lower belt drive,
    4. Wiring or single-line operation is possible, the cover is folded manually, and the upper and lower “one” word sealing is completed at one time.
    5. The standard table height is 750-800mm,
    6. The structure of the tape applicator is precise and fast, continuous and compliant, and has a long service life.
    7. Outside the standard specifications, non-standard customization is acceptable.

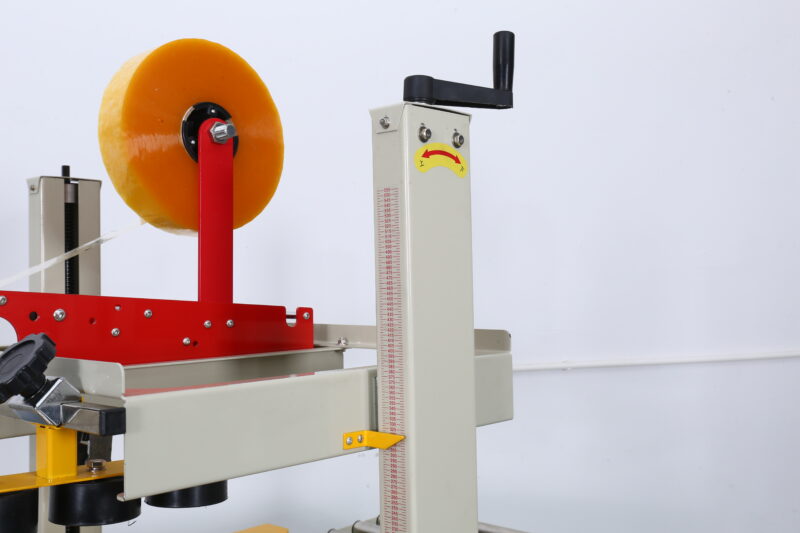

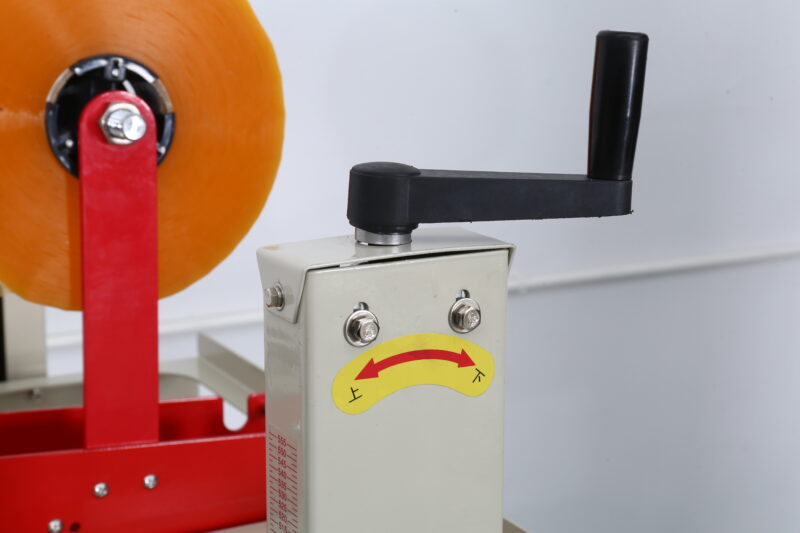

    Machine detailed picture

    Operate steps                               Application
                      Packaged sample Precautions for use

    1. Regularly clean and maintain the inside and outside of the automatic carton sealing machine, especially after daily use, it is necessary to clean the residue on the cutter, so as not to affect the problem of tape cutting in the later stage.

    2. Regularly add lubricating oil. The use frequency of automatic carton sealing machine is generally large, and each component needs to run once for each carton sealed. Lubricating oil is added to keep these parts running smoothly and reduce wear. However, it should be noted here that the lubricating oil used must be special oil.

    3. Before use, check whether the automatic sealing machine is normal, and solve any problems in time. Be careful to cut off all power after shutting down.

    TaoXing Company Introduction
    Taoxing automatic screen printing machine video compilation

    Service / FAQ

    Guarantee


    ① We provide comprehensive one-stop services, customer training and satisfied after sales services.

    ② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.

    ③ Sold enjoy one year of free equipment warranty and lifetime technical support.



    Guarantee for Delivery

    Safety and fast logistic ensures the goods are delivered on the right time

    1. Packing: Plywood Case for Each Machine

    2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)

    3. Delivery date:60 business days after received the payment.

    4. Departure of port: By sea from Shanghai or Ningbo

    5. Delivery means: By sea by land



    Screen printing was a technique first used by the Chinese almost 2000 years ago. It is widely used at home and abroad. Chinese printing machine market has already become the focal point of the world have opened up. We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.



    If you are still confused how to start printing work, don’t worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.
