  7. High precision IR drying Machine

High precision IR drying Machine


Contact Us


    Product Name

    Category: drying equipment, infrared drying tunnel


    1. Dimension: 16000 * 1450* 1415mm (L * W * H)
    2. Belt width : 1000mm
    3. Input length:1000mm
    4. Drying zone:8000mm
    5. Cooling: 6000mm
    6. Output:1000mm
    7. Machineheight: 850 ± 25mm(from belt to Ground)
    8. Max temperature :220 ℃
    9. Infrared lamp: 1KW * 36= 36KW
    10. Dry exhaust fan: 0.37KW * 4= 48KW
    11. Drying cycle fan: 0.75KW * 4= 3KW
    12. Cooling Fan: 0.2KW * 24=4.8KW
    13. transmission speed :2-15M / min
    14. transmission motor: 0.75KW * 1= 75KW
    15. Speed Mode: Frequency Control
    16. machine materials: Quality of cooling-plate square tube
    17. drying the inner top surface: stainless steel
    18. Coating: Phosphate coating
    19. Working voltage: 380V three-phase four-wire

    Structure Illustration

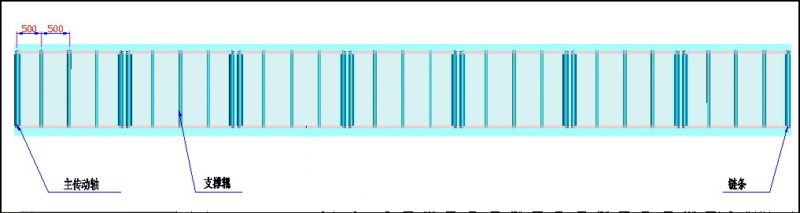

    1. Transmission System

    Main illustration

    • Transmission adopts variable frequency drives system, chain transmission principle.
    • Install chain wheel in the drive and driven wheel, Teflon conveyor belt.
    • Frequency conversion speed regulation system, delivery speed is stepless, speed range is 2~15m/min.


    1. The structure of inner container

    Main illustration:

    1) Heating device adopt IR heating tube.

    2) Constant temperature design principle, you can control each heating group independently; when it reach constant temperature, you can make one half of machine to work, and make another half of machine not to work.

    3) Stainless steel Inner container.

    1. The structure of Tunnel Body.

    Main illustration

    1) The machine body is painted with high temperature baking finish

    2) There are two layers of heat preservation design; there is another heat preservation layer in the outer of drying region to prevent inner heat loss directly; the thickness  is 80mm

    3) Inner temperature can reach 220℃

    4) You can lift each drying unit, so it’s convenient to maintain this equipment.

    5) Silicon controlled, it can control temperature and save energy.



    TaoXing Company Introduction
    Taoxing automatic screen printing machine video compilation

    Service / FAQ


    ① We provide comprehensive one-stop services, customer training and satisfied after sales services.

    ② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.

    ③ Sold enjoy one year of free equipment warranty and lifetime technical support.


    Guarantee for Delivery

    Safety and fast logistic ensures the goods are delivered on the right time

    1. Packing: Plywood Case for Each Machine

    2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)

    3. Delivery date:60 business days after received the payment.

    4. Departure of port: By sea from Shanghai or Ningbo

    5. Delivery means: By sea by land
