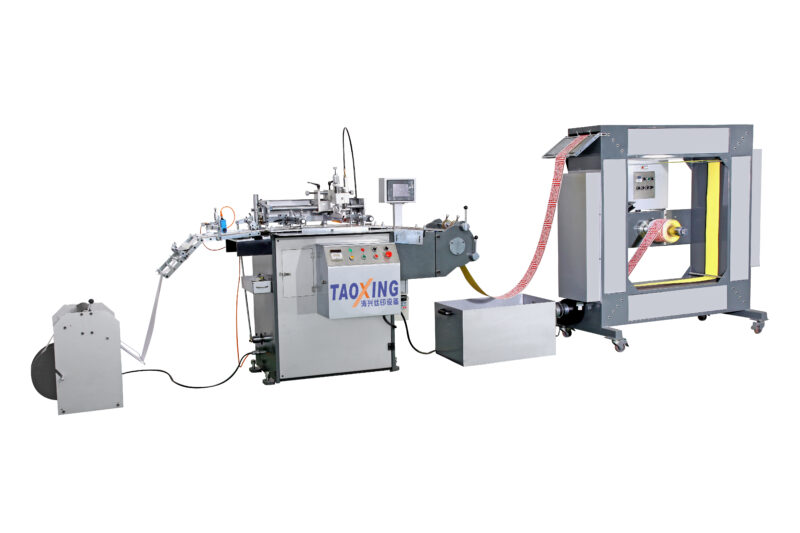

TX-320 Automatic roll to roll screen printing machine
Contact Us
Inquiry
1: Application:
This machine is widely used in PET, OPP, PVC, IMD ,transfer paper (film), floor heating film, geothermal film, electrothermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, aluminum foil and copper foil this roll material silk screen printing, drying, and collectting.
2: Machine technical parameter:
| Main Material | PVC, OPP, and polyester, labels, adhesive paper, etc | Suitable Ink | Silk screen ink |
| Max filling web width(mm) | 320mm | Material Putting / unwinding diameter(mm) | φ450㎜ |
| Max printing Length (mm) | 320 | Max printing Width | 300mm |
| Printing speed | 10-35pcs/mim | Accuracy | ±0.15mm |
| Total power | 8kw | Printing machine size | 2600*950*1400mm |
| Dryer machine size | 1750*600*1800mm | Machine Weight | 1000kgs |
3: Features and performance:
①Feeding adopt the latest computer numerical control servo motor transmit.
② The main transmission parts adopt pneumatic device, around front and after the printing position are controlled by photoelectric eye tracking and controling, so that the machine will have high accuracy, stable feeding, automatic counting alarm, convenient adjustment, compact structure, etc.
4: Configuration:
| Name | Qty | Brand orginal | Power ,Model |
| Servo Motor | 1pc | YASKAWA | Sgmgh-09acal1/sgdm-10ada |
| Induct Motor | 1pc | shanghai | |
| Oven single turbine pump | 2pc | zhejiang | 370w-1pc、750w-1pc |
| Oven blower | 1pc | ruian | |
| Speed Control Motor | 1pc | taiwan | YSO.2KW-4P |
| frequency changer | 1pc | ·
Emerson
|
2.2kw |
| PLC | 1pc | ||
| Front And Back Tracking Photocell Eye | 1pc | germany | KT5G-2N1111S16 |
| Left and Right Deviation correcting Photocell eye | 2pc | Taiwan | KSC2 |
| Main Cylinder | Kogel |
5: Printing Samples:
TaoXing Company Introduction
Taoxing automatic screen printing machine video compilation
Service / FAQ
Guarantee
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy one year of free equipment warranty and lifetime technical support.
Guarantee for Delivery
Safety and fast logistic ensures the goods are delivered on the right time
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：60 business days after received the payment.
4. Departure of port: By sea from Shanghai or Ningbo
5. Delivery means: By sea by land
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
