Heat transfer film printing production line scheme

Category: Applications

Finished printed products:

Offset heat transfer production process:

Offset printing (offset color film)Screen printing (semi-auto/auto)Automatically sprinkle hot melt powder

Tunnel dryingAutomatic collectionCut product

Automatic screen printing +powder coating+Drying machine+Collect machine


Automatic Screen Printing machine


This auto screen printing machine is widely used for adhesive paper, credit card, Ceramic decal paper, membrane switch, heat transfer film,  transfer paper, and also suit for the high precision printing on any other paper card,thin metal sheet, PVC.

Detail picture

Model TX-5070-DZ
Max. printing size(mm) 500×700mm
Max. frame size(mm) 850x1100mm
Mini. frame size(mm) 400x600mm
Max. sheet size(mm) 520x720mm
Mini. sheet size(mm) 160x200mm
Printing material thickness (mm) 0.08-3.0mm
Off-frame height(mm) 25mm
Max. feeding height(mm) ≤330mm
 Max. speed(p/h) 500-1000p/h
Power(KW) 3.5KW
Power supply 3N-380V-50Hz
Working pressure(MPa) 0.4~0.6MPa
Machine dimension (L*W*H)mm 2600x2400x1930mm
Machine Weight (kg) 1300KG
Main electrical accessories configuration:

Pneumatic components                Airtac/domestic

Aluminum parts                       Anodizing treatment

Steel parts                           Chrome plating

Guide                               HIWIN Taiwan HIWIN

Electronic control components          Omron etc.

HMI                                 Weilun

Programming Controller (PLC)          Xinjie

Servo system (5 sets)                  Xinjie

Appearance treatment                Anti-wear and durable gold powder

TX-SF800 powder spreader


The automatic powder spreading machine series is a kind of post-printing matching machine that replaces the traditional hand-made glitter powder hot-melt powder process. This machine is suitable for the powdering process of clothing trademarks, greeting cards, blessing characters, couplets, Christmas cards, tablets, etc. Easy to use, no dust pollution, automatic recycling, recycling of raw materials, etc., and the use of a screen printing machine can greatly improve the efficiency, increase the utilization rate of the hot melt powder of the glitter powder, and can make a variety of changes Glitter powder hot melt powder pattern. If required by the process, the drying, UV curing machine and other equipment can be conveniently connected at the back. This machine adopts upper and lower suction port design to prevent the occurrence of scratches on the surface of the film. It is the best post-press supporting equipment for the film glitter powder process.

Model TX-SF80D
Suction type Double suction
Maximum spreading width 800mm
Maximum material thickness 5mm
Max printing speed 1500m/h
Power 3.0KW 380V 50HZ
Main performance

①The key parts of the machine, such as the conveyor belt and the frequency converter, all adopt imported parts, which are easy to use and flexible to adjust.

②The original powder spraying system enables the color powder to be attached to the printed matter evenly and smoothly.

③It is equipped with a color powder recovery system, and the excess color powder is gently pressed by the roller before drying to make it evenly balanced.

④ Spreading powder-light roller pressing-recycling-drying, high efficiency and energy saving completely solve the problem of uneven manual powder spreading, low efficiency, and color

Geared motor Shanghai

powder flying all over the sky.

⑤All transmission parts of the whole machine can be adjusted steplessly, which has the characteristics of high durability and good stability.


configuration list
NO. Accessory product name Accessory brand


1  Inverter Taiwan
2 Switch Shanghai Ergong
3 Fan Taiwan
4 Motor Taiwan


Geared motor Shanghai


TX-IR80 Dryer

Model TX-IR80 Loading length 1000mm
Unloading length 1000mm IR length 2000mm *3=6000mm
Power 25 KW Convey belt width 800mm
voltage 380V Total length 8m



①Curing box:

Curing box:80mm Insulation board(Insulation cotton,The inner plate is 302 stainless steel plate and the outer plate is 1.4mm cold rolled plate)

② Axis arm and base:1.4mm cold rolled steel plate,oven:840mm

☆Heating voltage:380V     27 IR heating tubes

Single heating tubes length:800mm

Heating total power:21KW

Heating temperature up to 180 degrees(Adjustable)

Relative temperature difference:±1°  (Uniform heating temperature)

Temperature control accuracy:±1°

☆Convey system:spend:1-5m/min

Conveyor belt:Imported high temperature resistant Teflon belt

  1. IR heating saves by 20% energy compared with traditional heating methods.
  2. Drive adopts frequency drive system, chain-driven principles.
  3. Double thermal protection design, heat insulation layer lessen the heat loss.
  4. Drying can be opened by sides, easy maintenance.
TX-SLJ650 automatic Sheet Stacker


It is suitable for the collection and placement of self-adhesive, credit card, ceramic decal, film, gold and silver cardboard, metal sheet, PVC and other substrates.

Model TX-SLJ650
Maximum Sheet size 480mmx650mm
Minimum Sheet Size 320mmx480mm
Stock Range 0.2~1mm
Paper Thickness 100gsm~600gsm
Stacker Pile Height 895±25mm
Speed 1500pcs/hour
Power 2.0 kW
Weight 100kg
Dimension 1150mm*1080mm*895mm

Main performance

  1. After the paper pulling system adopts the suction cup to suck the product, the stepping motor quickly drags the product to the set position, immediately releases the product, returns to the original position, and waits for the next piece.
  2. Special photoelectric devices are used for product testing.
  3. The lifting and lowering of the paper stack adopts a lifter to control the up and down movement, and the number of materials received is automatically reduced (the number of sheets and the time can be set).
  4. Equipped with adjustable foot base, the adjustment range is 20~30mm.
  5. The transmission system adopts toothed synchronous belt, and the track adopts linear slide rail.
  6. There is a dedicated air pump for sucking and pulling materials.

configuration list

Drive Motoe Xinje stepper motor
Air pump China
appliances Zhengtai
Optoelectronics Panasonic
Lift China
Cylinder China


Product information

1.It is easy to cutting for the pasteboard with oblique knife.

2.Keep tight for pressing paper with the independent structure.

3.The design of cutter external fine-tune and conveniently

4.Keep steady for pressing paper with the device of double guide.

5.Due to previous infrared safety protection design and back defend cover,it comply with CE standards,

6.Intelligent LED Display,Press paper,cutting time.The calibration point of pushing paper size can be arbitrary set;have self-test function,fault code display and counting function.

7.Program control can be set to 99 groups 7 times.

8.Infrared laser pointer lines, clear cutting knife bit.

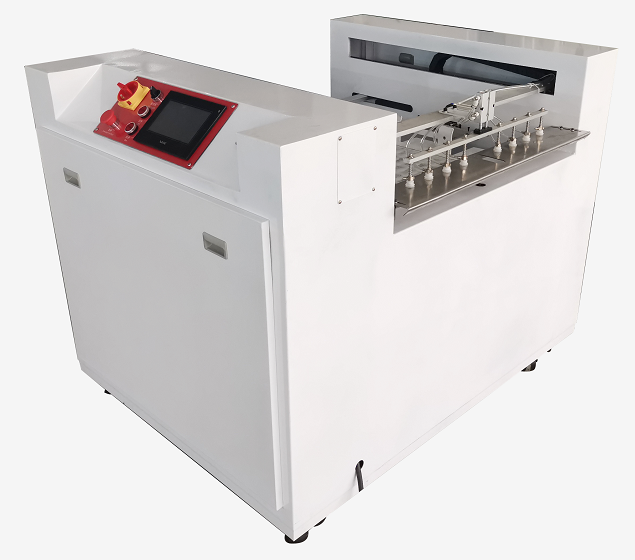

Model 520H
Max.Cutting Width 520mm
Max.Cutting Thickness 60mm
Precision ±0.5mm
Clamp Paper electric
Push Paper electric
Safety IR
NW. 228kgs
GW. 284kgs
Packing Size 1180*1090*970mm
