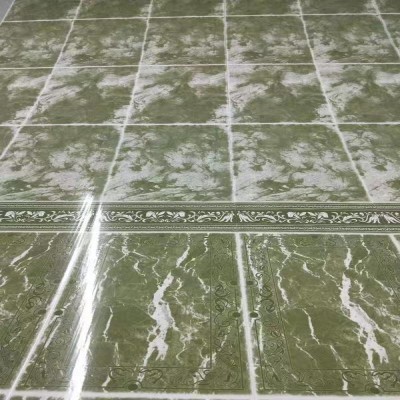

Finished printed products
A vertical electric screen printing machine specially designed for ceiling gussets, a device that helps you print designs or patterns on fully automatic pen holders. It can save you time and effort, and it is the first choice of many ceiling gusset merchants. In this blog post, we will briefly discuss how to use the vertical electric screen printing machine.
Application
Be applied to the flat printing for big size product , like yoga mat,traffic signs,glass, stickers,advertisement, PVC, and Metal Sheet , acrylic , so on
Parameter
| Model | TX-80220ST | Max Product Thickness | ≤30mm | |
| Max printing size | 800*2200mm | Air pressure | 4.0～6.0 kfg/c㎡ | |
| Table size | 950*2400mm | Voltage/Power | 380V/50HZ /4.5KW | |
| Max frame size | 1000*2700mm | Machine size | 1500*2850*1760mm | |
| Max print speed | 600（PCS/H） | Gross weight | 970(KG) |
Features
- Vertical structure, printing headmoves up and down verticallyby motor, printing stroke is driven by imported electrical components.
- all guidance adopt precision linear guide.
- 3. Printing platform adopts high hardness materials, pores are uniform (can be customized by the needs of the production)
- 4. XYZ printing platform with the direction of fine tuning.
- 5. Procedures for the three-mode, manual / semi-automatic /automatic settings according to the needs of production.
- 6. it’s easy to unload and clean the frame, scraper / ink reclaiming blade.
- Scraper / ink reclaiming blade’s angle can be adjusted at will.
- It’s convenience to adjust the size of left and right net arms according to printing plate. ,.
