Fully Automatic UV Screen Printing Curing and Cold Stamping Production Line for Gold and Silver Cardboard
This fully automatic cold foil machine is suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
| Share | |
|---|---|
| Categories | Automatic Flat Screen Printing Machine |
| Trademark/Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-UV1160-5070L |
| Maximum stamping width | 66CM |
| Hot stamping speed | 0~15m/min |
| Stamping temperature | 60~140℃ |
| Total power | 6KW |
| Air pressure | 0~8 Mpa |
| Power supply | 380V/50HZ |
| Total weight | 3000KG |
| External dimensions | L7650*W3450*H1900mm |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | Western Union, T/T |
| Download |  |
| Update Time | Jan 11,2026 |
Detail Information

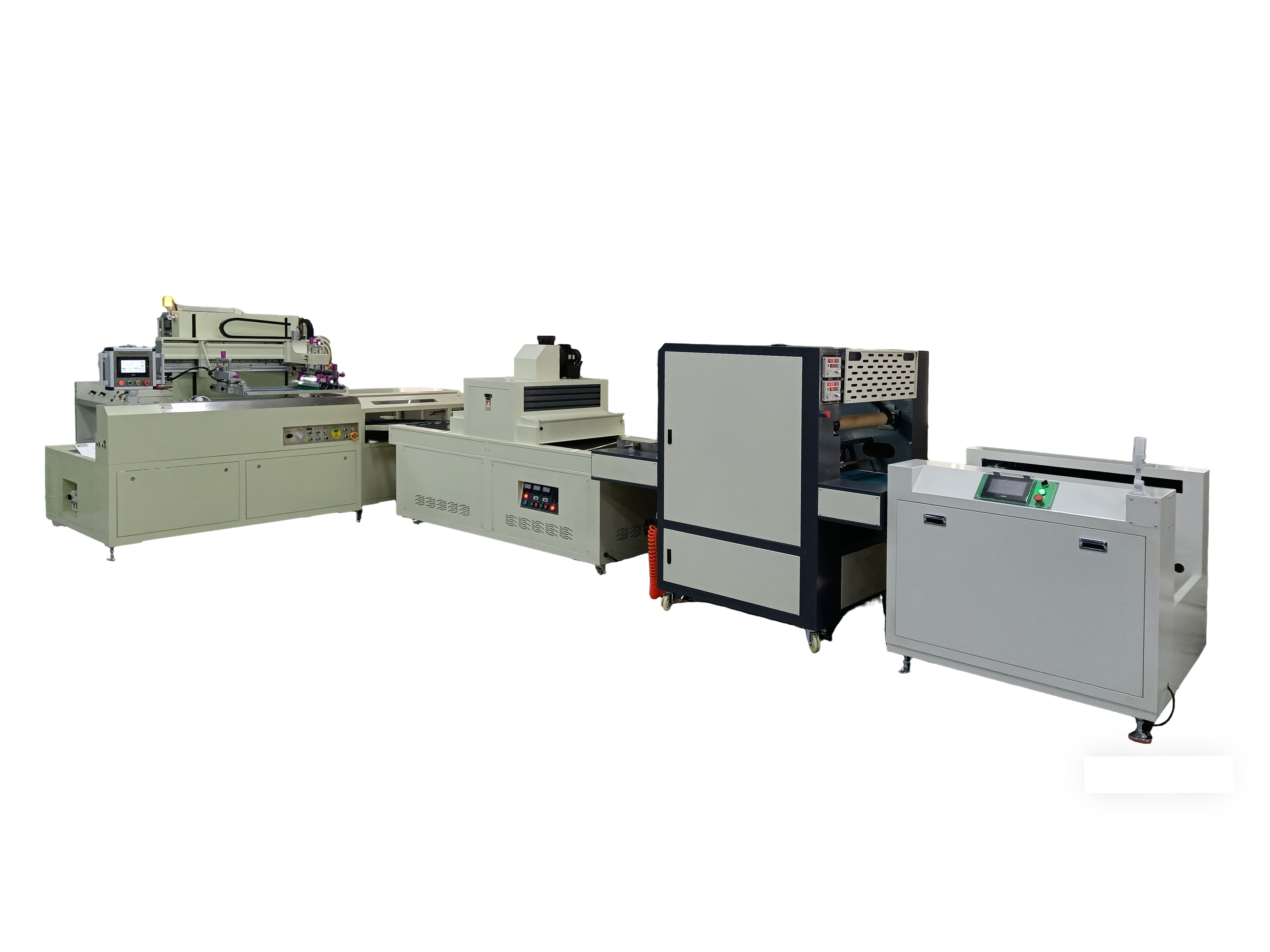

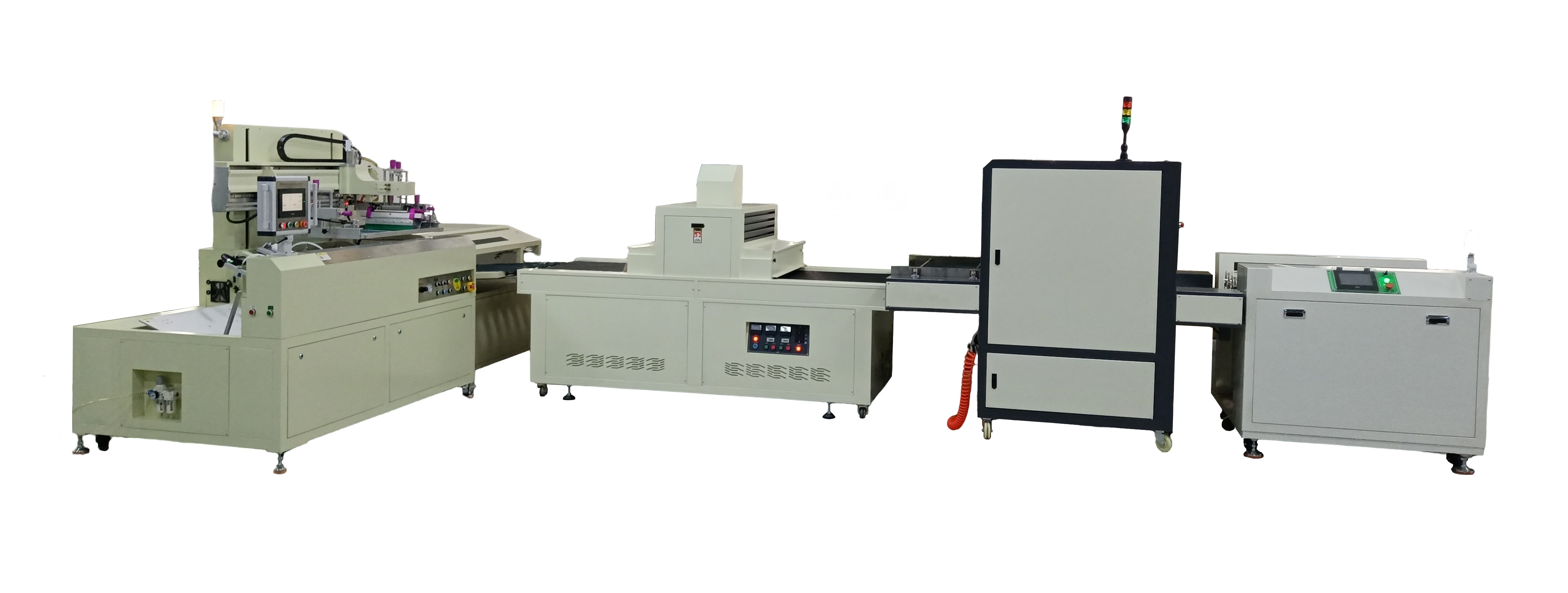

Introduction Automatic UV Screen Printing Curing and Cold Stamping Production Line
Suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
Main performance characteristics
1. Widely used in ordinary aluminum foil and special cold stamping aluminum foil;
2. The equipment uses a fully automatic servo motor step-skipping function to save aluminum foil materials;
3. The hot stamping pattern can be hot stamped multiple times and set to hot stamp continuously;
4. Can be connected to various semi-automatic and fully automatic screen printing machine production lines;
5. Cold stamping speed: 0-1500 sheets per hour;
6. This cold stamping machine relies on the printing screen hot stamping varnish to be completely cured before heating, and hot stamping does not require secondary UV curing;
7. It can also be used as a partial UV laser embossing transfer film.
Specification

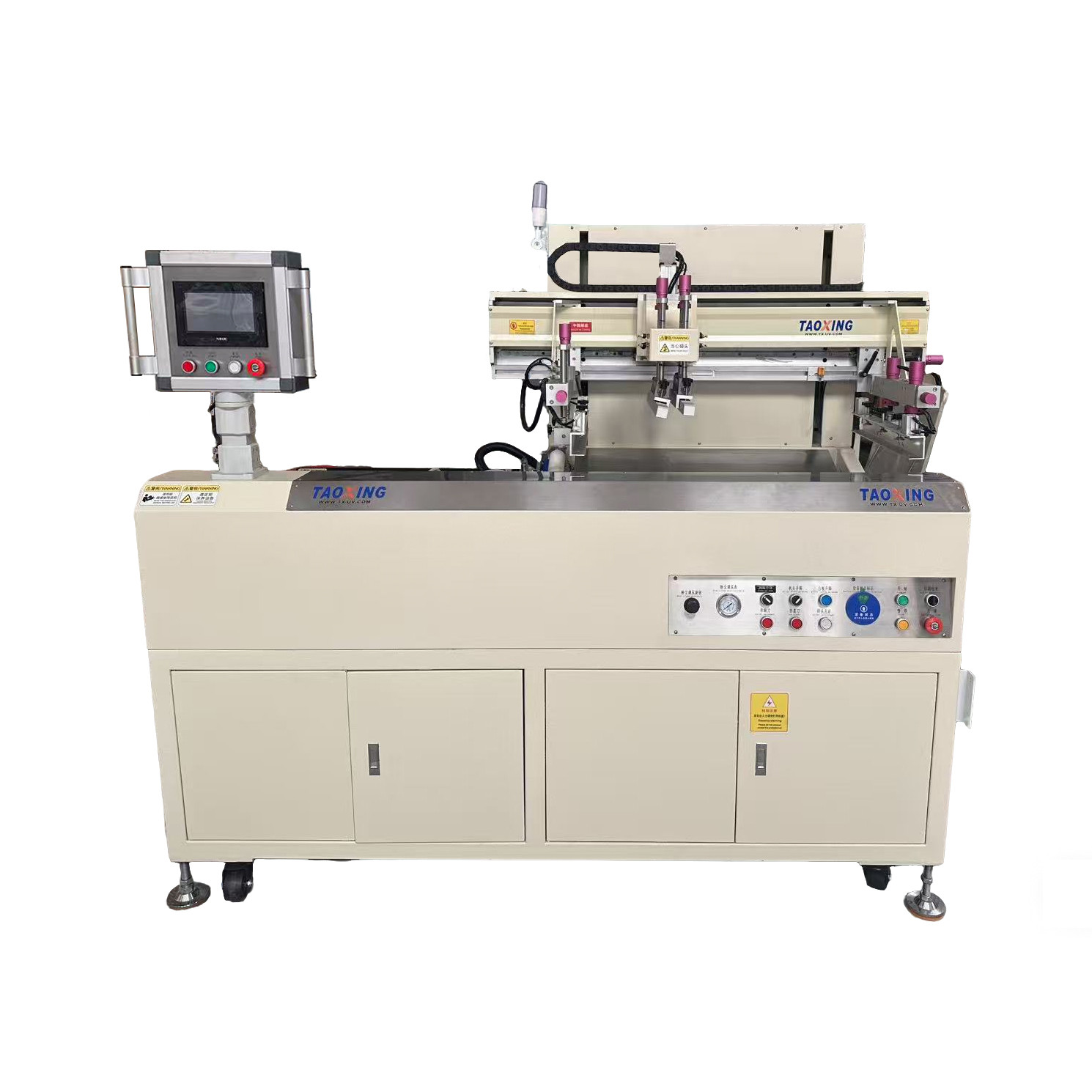

Fully-automatic screen printing machine
Machine Model: TX - 5070L
Printing thickness: 0.05-3mm
Printing size: 500*700 mm
Printing pressure: 0.4-0.6Mpa
Platform size: 700*850 mm
Voltage/Power: 380V/50HZ /5.0KW
Maximum screen frame: 850*1150mm
Screen printer dimensions: L2250*W1250*H1800mm,
Discharger dimensions：
L1600*W1650*H1200mm
Printing speed: 600-900 pcs/h
Gross Weight: 800 KG

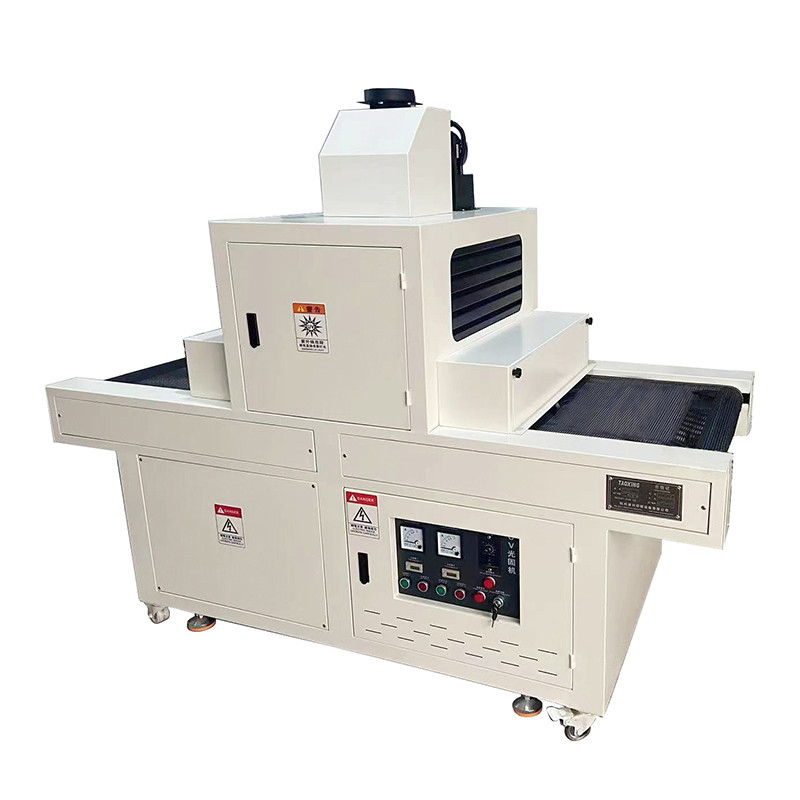

UV curing machine
Machine Model： TX-800UV
Belt width： 800mm
UV lamp power ：2.0KW*2
Overall length：2500mm
Power： 380V / 4.0KW
Conveyor belt speed： 0-25m/min
Outer diameter： 130*145cm
Machine weight： 300KG

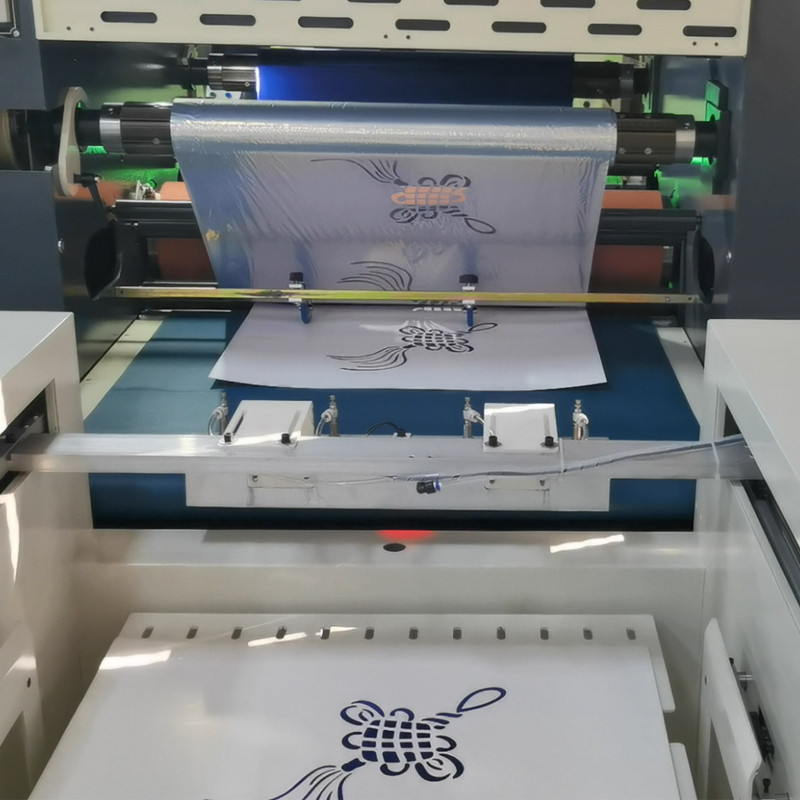

Automatic Stepwise Cold Stamping Machine
Machine Model: TX-UV1160-190
Usage: UV screen printing hot stamping
Hot stamping wide： ≤1050mm
Hot stamping speed： 0-15m/min
Hot stamping temperature： 60-140℃
Total Power： 8KW
Pressure: 0-8Mpa
Power supply" 380V/50Hz
Total weight: 750Kg
Dimensions: 2300X1660X1750mm

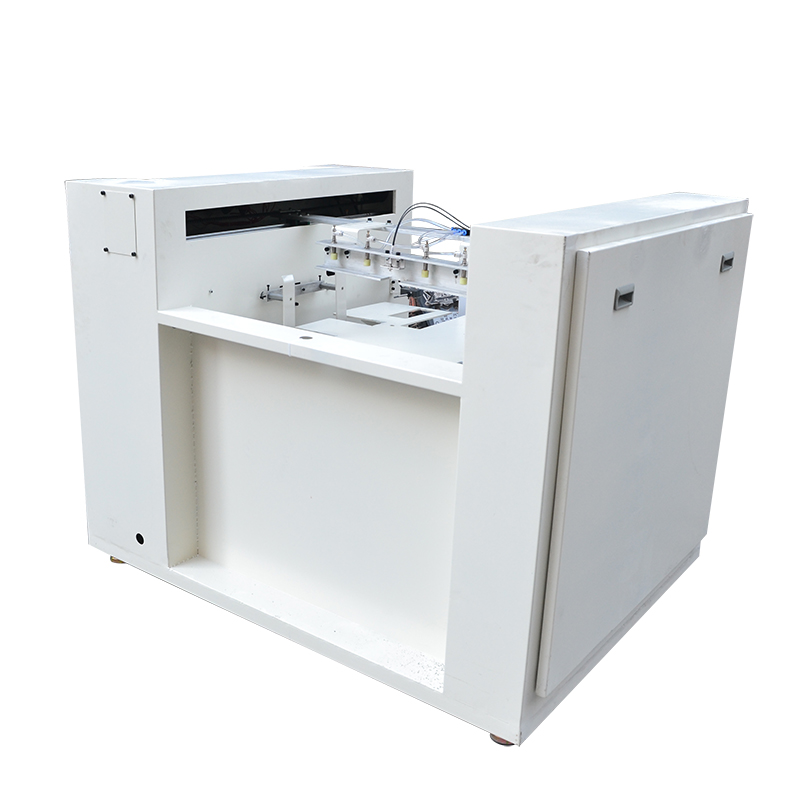

Automatic Material Collector
Machine Model: TX-SLJ650
Usage: Applicable to the collection and stacking of materials such as cardboard, PVC sheets, and PET films.
Applicable material thickness： 0.2-1mm
Material collection size：Min480*320mm--Max 650*480mm
Feed height: 895±25mm
Maximum collection speed：1500pcs/hr
Total Power：2.0KW
Pressure: 0-8Mpa
Power supply: 380V/50Hz
Total weight: 100Kg
Dimensions: 1150*1080*895mm

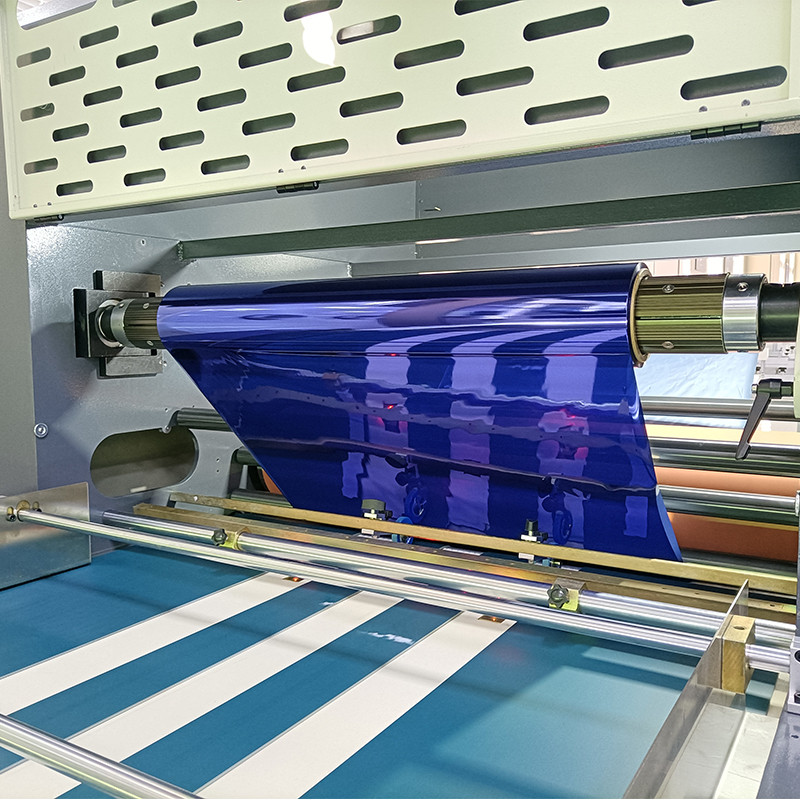

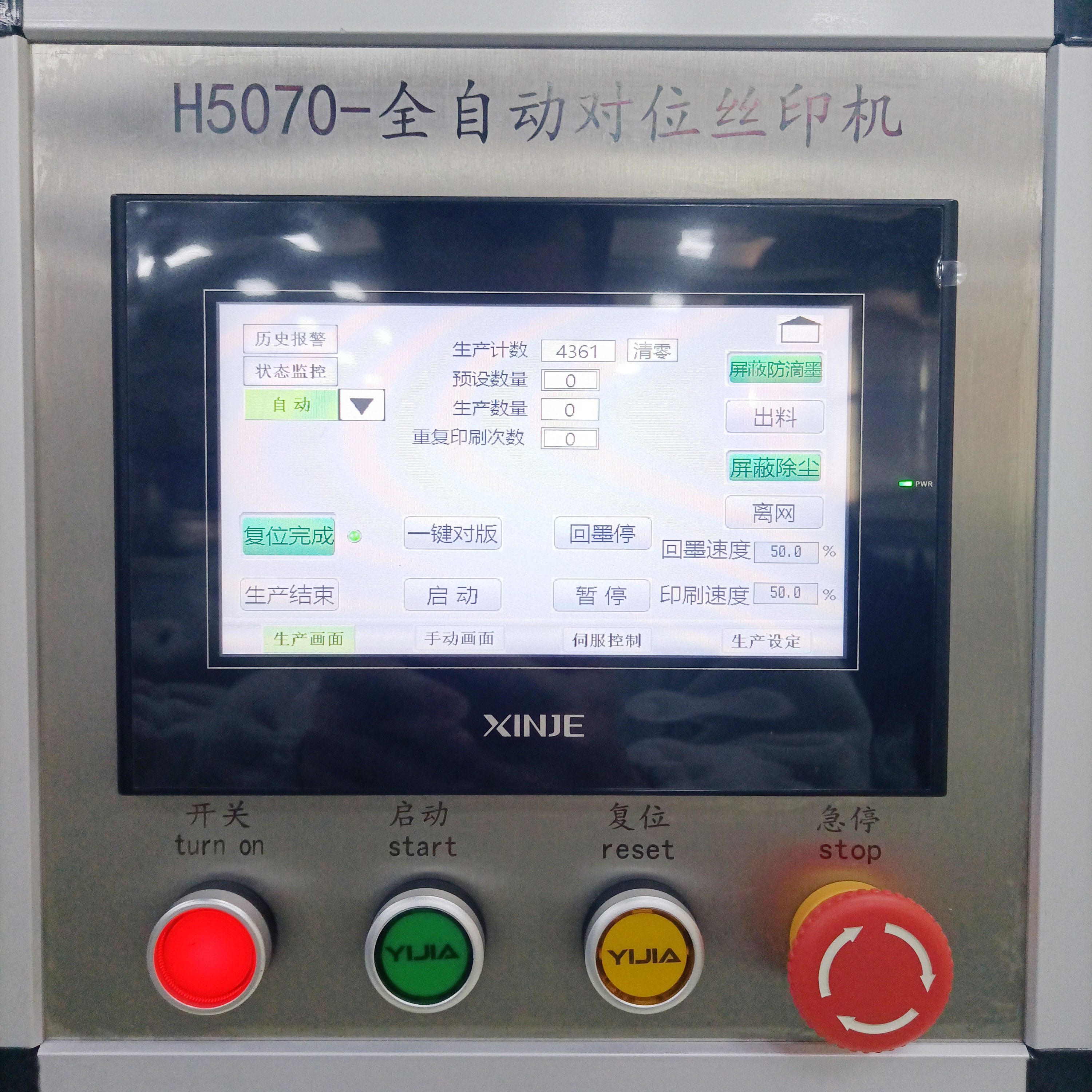

Details image
Printing sample
