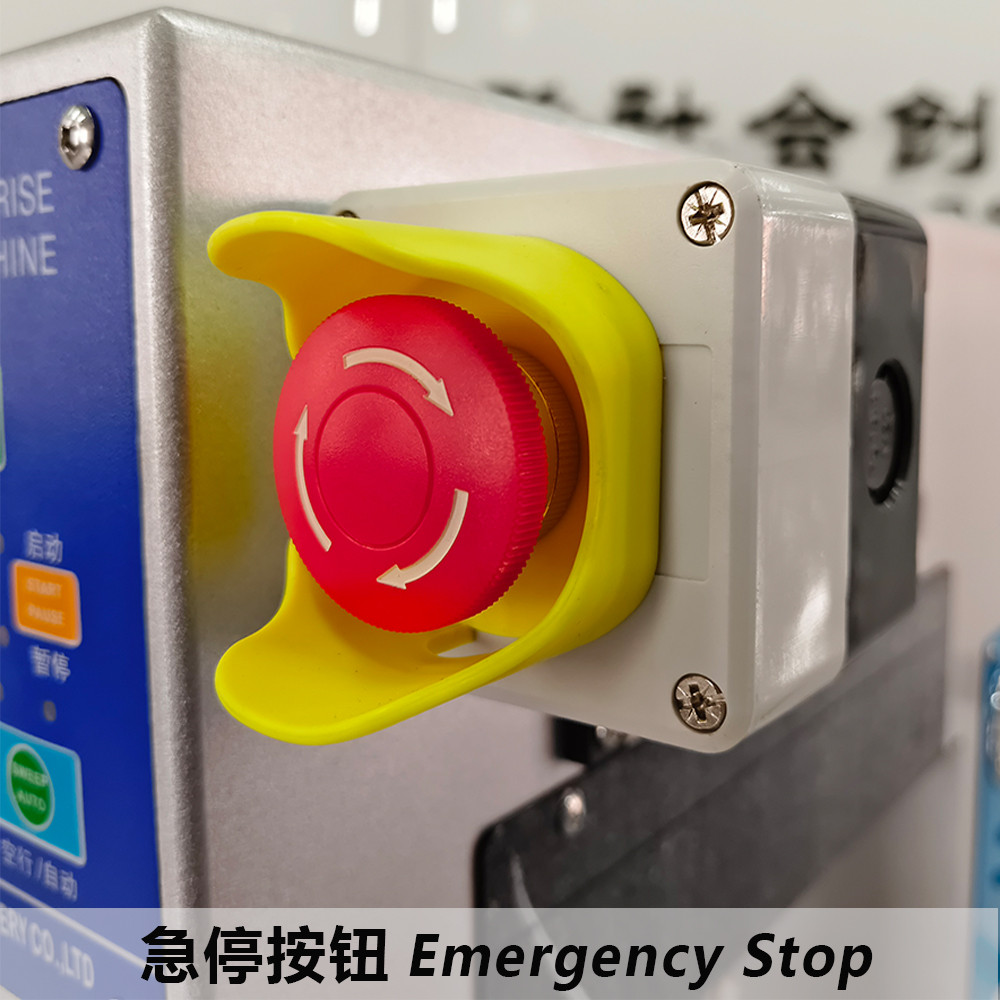

New Semi-automatic Pneumatic Single Color Pad Printer TXD-125-100 Equipped With Emergency Stop Button
This pneumatic single solor sad printer is suitable for precision printing on flat, curved, and irregular surfaces with small printing areas on materials such as metal, glass, ceramics, plastics, wood, and leather.
| Share | |
|---|---|
| Categories | Semi-Automatic Pad Printer |
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TXD-125-100 |
| Steel Plate Size | 150*100mm |
| Max Printing Size | 110*80mm |
| Max printing Speed | 1500 pcs /hour |

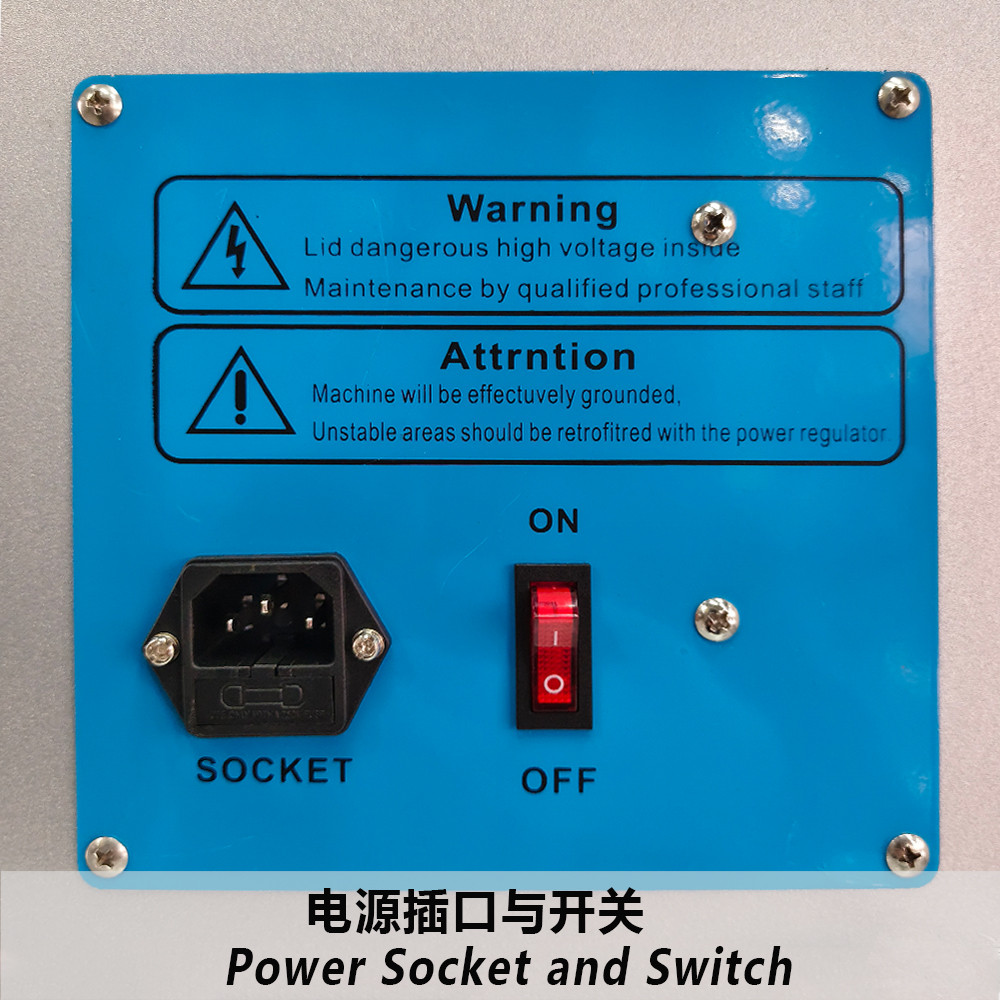

| Power Supply | 220V /110V /50HZ /50W |

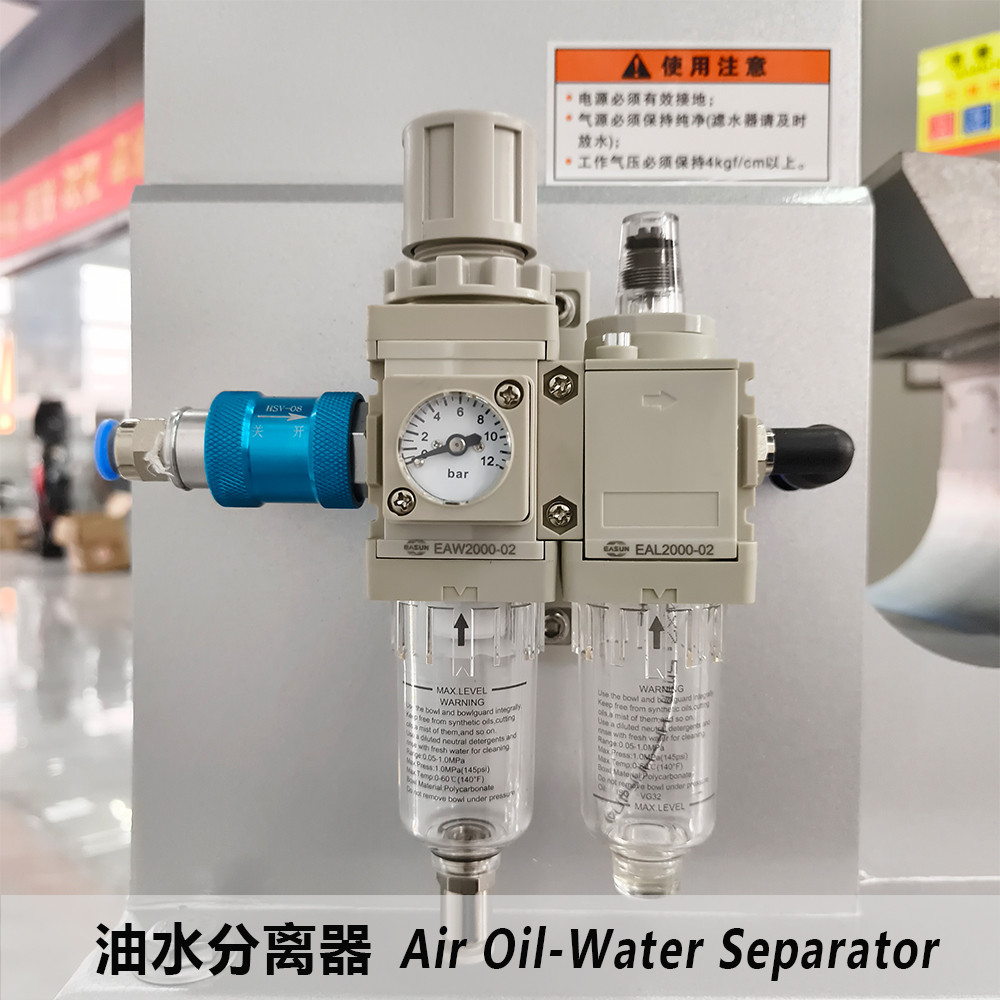

| Air source pressure | 5 Bar |
| Machine Dimensions | L640*W380 *H1240mm |
| Net Weight | 90KG |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | Western Union, T/T |
| Download |  |
Detail Information
Introduction of Single color Pad Printer
Application
Suitable for precision printing on flat, curved, and irregular surfaces with small printing areas on materials such as metal, glass, ceramics, plastics, wood, and leather.

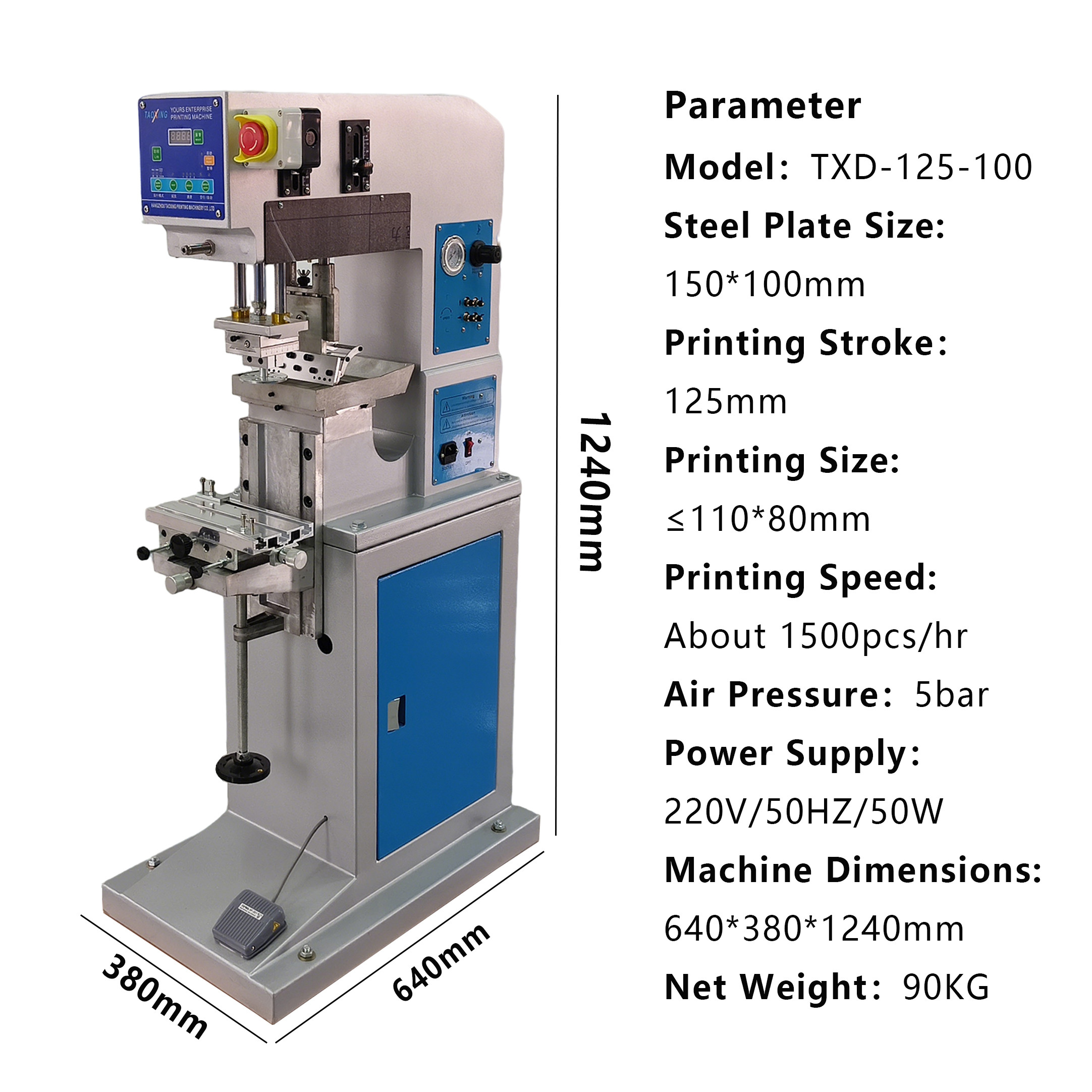

Product Parameters
Main Features

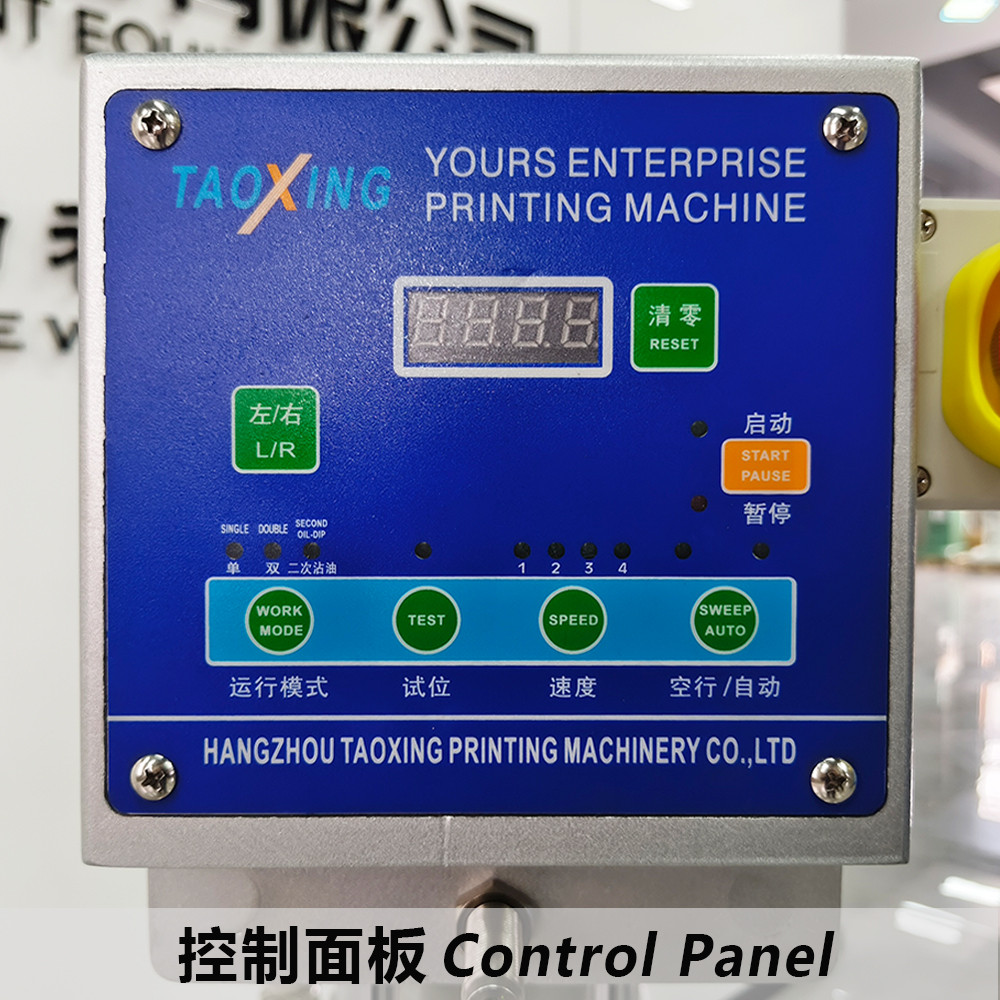

① The operation of each function is controlled by a microcomputer, making it simple and convenient to use.
② It has a built-in four-digit automatic counter.
③ The machine frame is made of high-quality aluminum alloy, which is lightweight and sturdy.

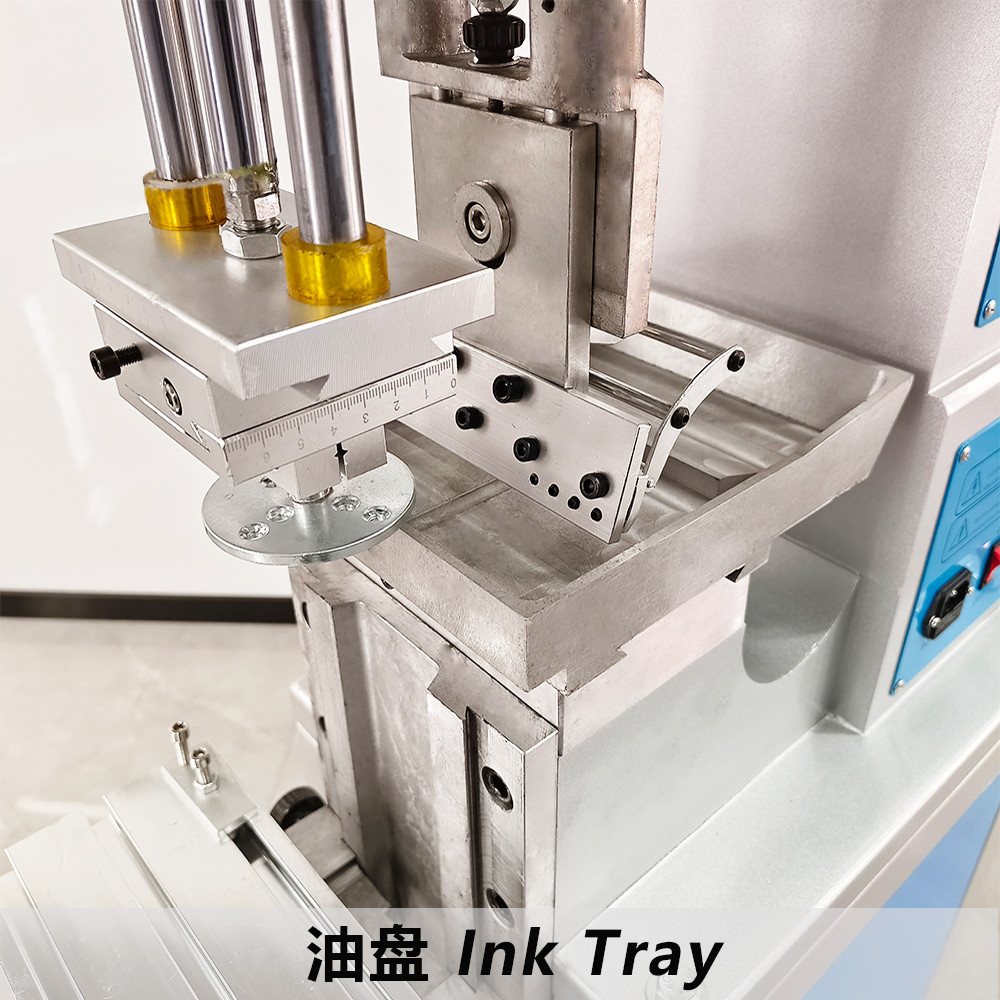

④ The ink roller is easy to install, disassemble, and clean.

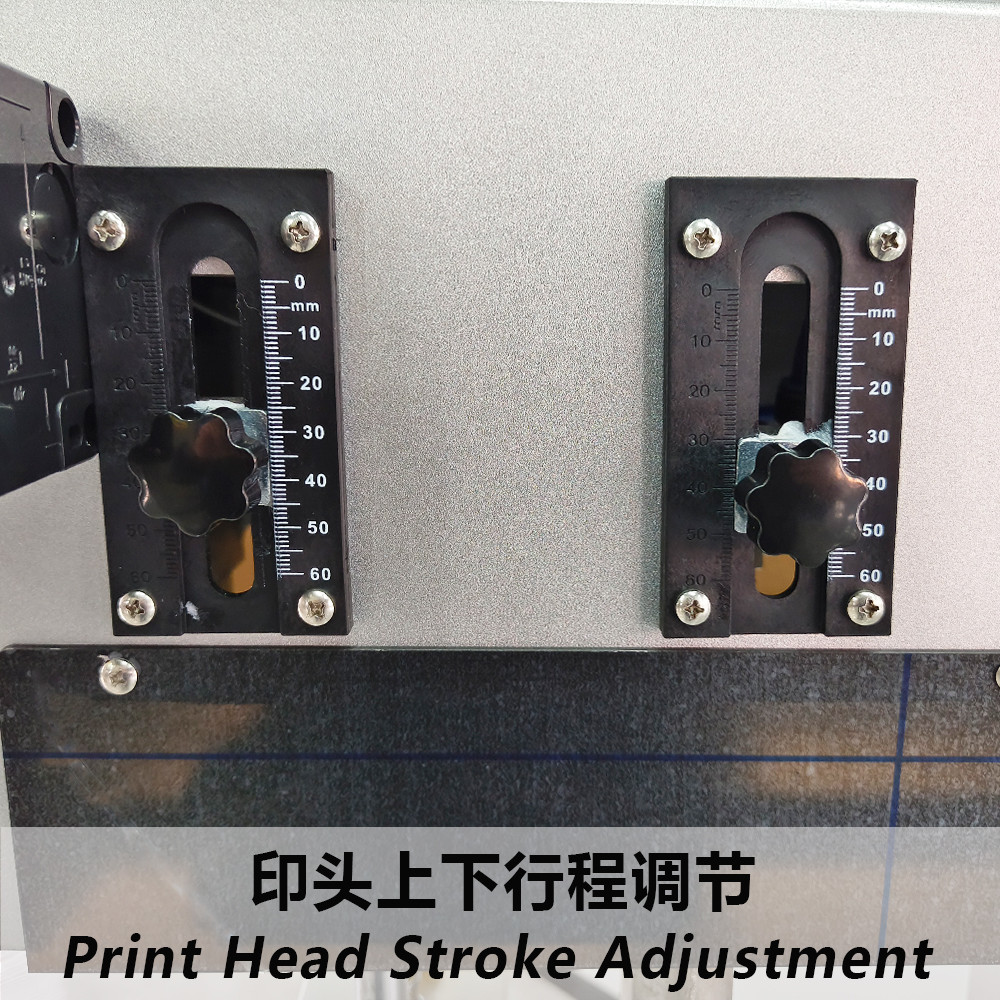

⑤ Independent adjustment of the up and down stroke and speed of the rubber head.
⑥ The automatically balancing scraper scrapes ink cleanly and efficiently.
⑦ You can apply ink twice and then transfer it once to obtain a larger amount of printing ink.
⑧ You can leave blank lines before and after the ink to prevent the ink from drying out when you pause.

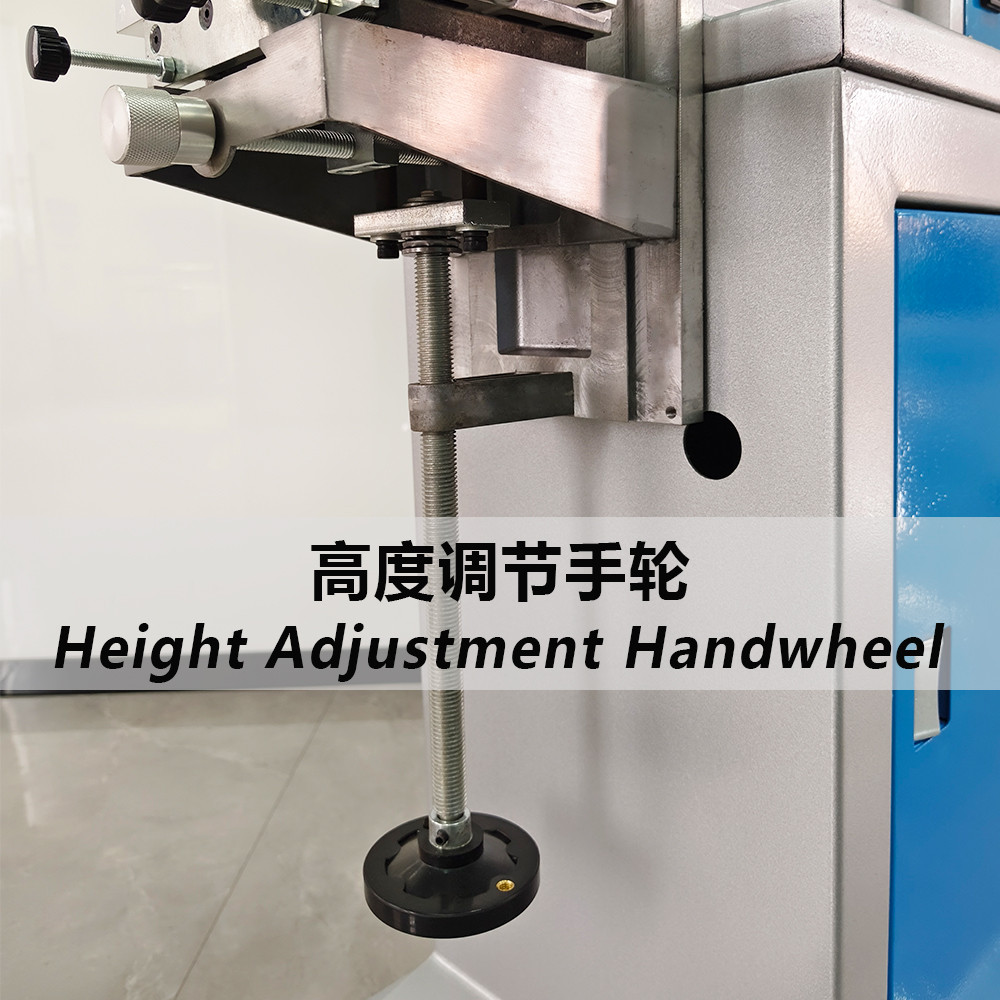

Details
Printing sample
