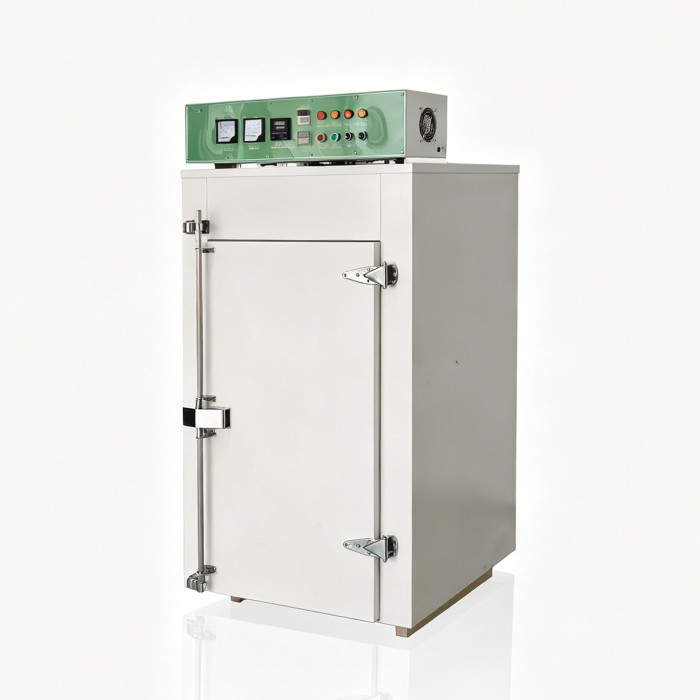

Mini Vertical Industrial Oven TX-KXS | High-Precision Laboratory & Small Batch Thermal Processing
Engineered for precision, this compact vertical industrial oven delivers high-efficiency thermal processing up to 300°C. Designed with a forced air circulation system to ensure consistent heat distribution. Perfect for electronic component testing, medical sterilization, and material aging, this benchtop industrial oven is the ultimate solution for precision-critical industries.
| Share | |
|---|---|
| Categories | Vertical drying oven |
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-KXS |
| Type | Drying Oven |
| Voltage | AC 380V/ 50HZ 10KW |
| Core Components | PLC |
| Heating Method | Electric Heating |
| Material | SUS304 |
| Advantage | Energy Conservation |
| Temperature range | RT~180℃ |
| Speed | 1-10m/min |
| Weight | 200KG |

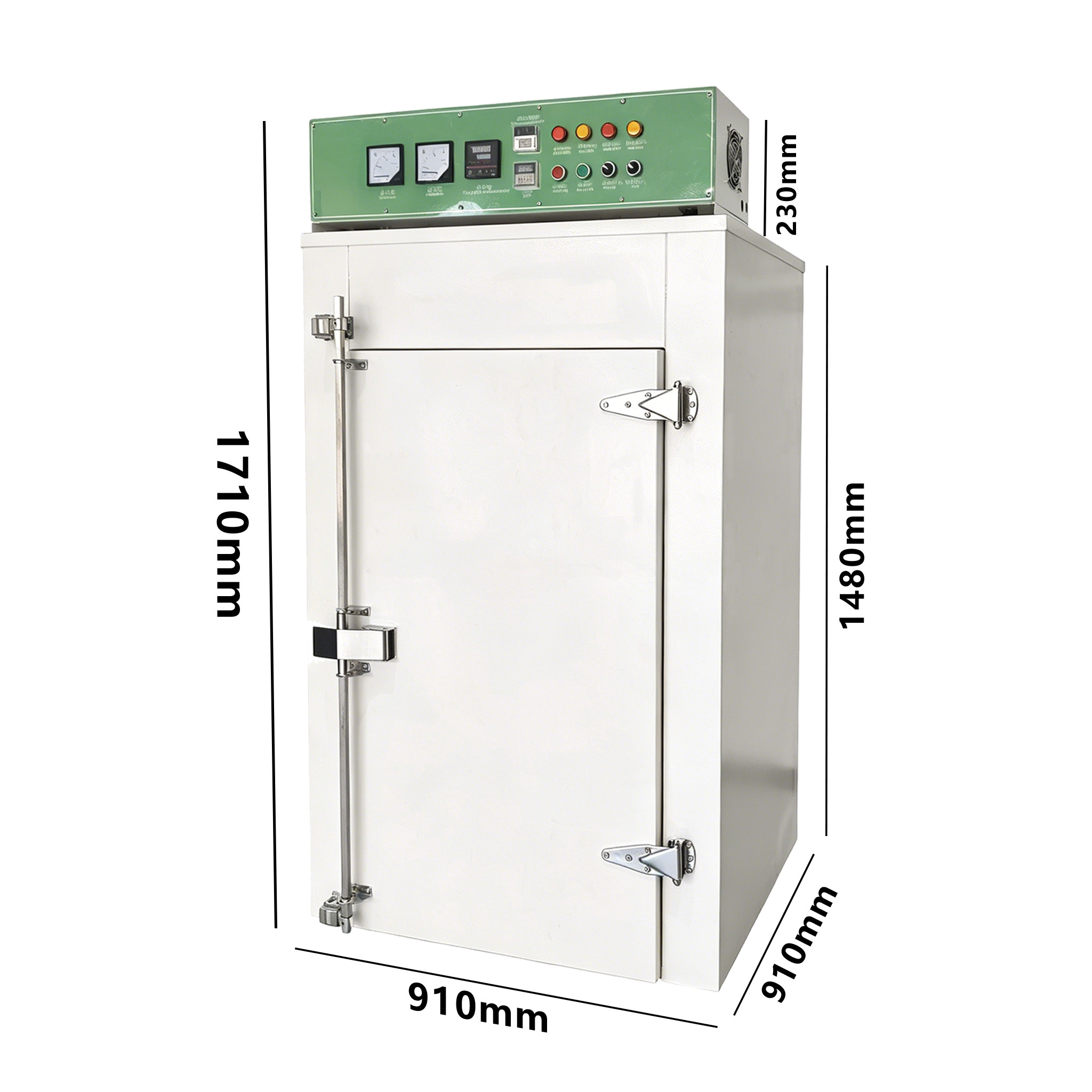

| Overall Dimensions | L910*W910*H1710mm |
| Internal Dimensions | L610*W700*H1200mm |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Download |  |
Detail Information
Introduction of TX-KXS Mini Vertical Oven
This small vertical oven is suitable for industries such as electronics , chemicals , signage , screen printing, and optical electroplating, and can also be used for drying and curing products in other industries .
Specification
Model: TX-KXS
Inner size: L610*W700*H1200mm
Parameter: Temperature (0-180°C)
Power: 13KW
Operating Voltage: 380V/50HZ
External dimensions: L910*W910*H1710mm
Weight: 200KW
Features and Performance
Intelligent digital display temperature control system, automatic constant temperature control, PID adjustment, full-scale constant temperature timing function; short circuit and overload protection, etc.
Electrical components: Intelligent digital display temperature controller, solid-state relay , time controller, long-shaft motor.

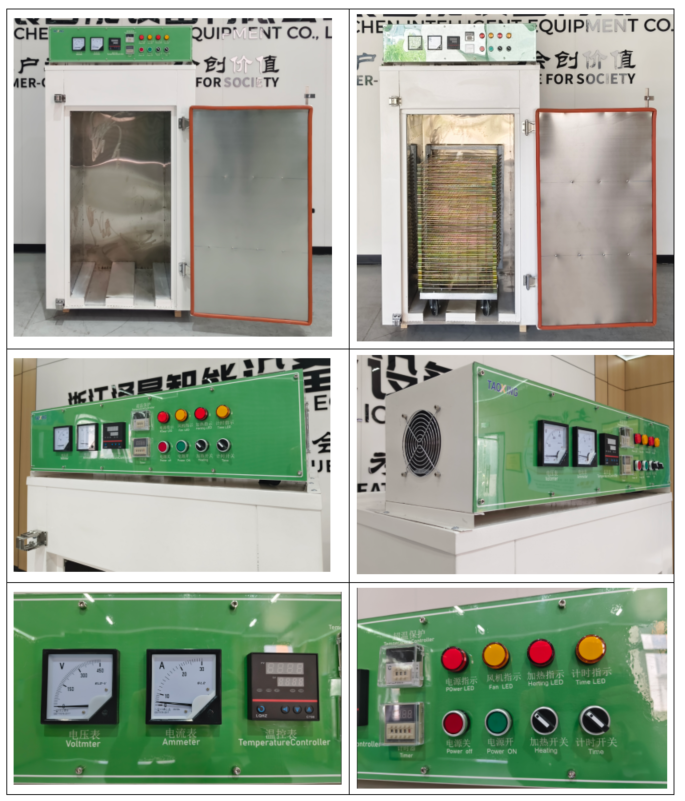

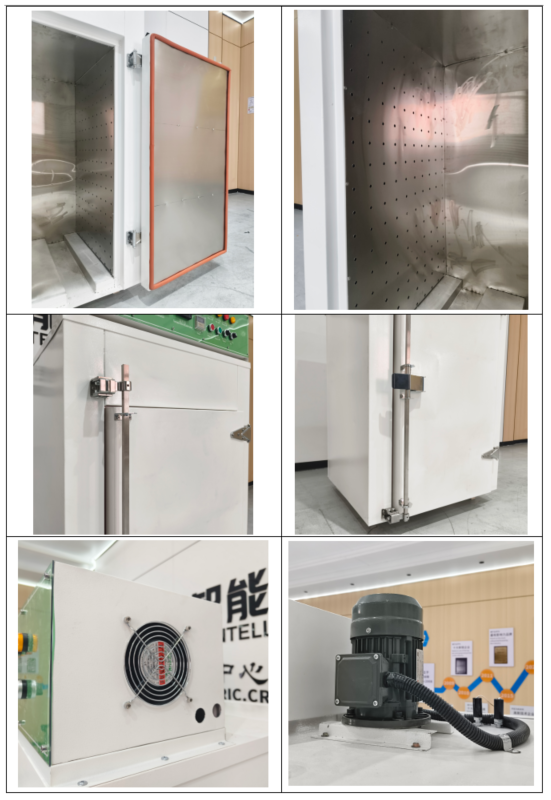

Appearance pictures
Configuration Instructions
① Electrical components:
Intelligent temperature controller with PID regulation. Dual-gauge control with over-temperature alarm.
Adjusting the power of the AC contactor.
Thermostat timing setting.
Alarm function.
The control box and operation panel are located on the right front of the box.
Low-voltage electrical appliances are all from well-known domestic brands such as "Chint" or "Delixi".
The temperature controller uses the Japanese brand RKC.
②Hot air circulation section:
Centrifugal fan, unidirectional air delivery.
Top-mounted (fully enclosed) fan; 1000W * 1 unit.
Horizontal design, hot air circulation in the left and right chambers
③ Heating section:
Heating method: evenly distributed at the top.
Heating element: Stainless steel heating tube.
Heating power: 1.3 KW .
④ Materials:
Outer shell: Made of 1.2mm thick cold-rolled steel sheet with baked paint finish.
Inner liner: Made of 1mm stainless steel plate.
The bottom of the box is flat, with two grooves at the bottom for the trolley to move in and out.
The annex to this contract does not include the production of the tiered cart.
Double door construction.
The gate locking device consists of an alloy steel single-handle rocker and alloy steel hinges.
⑤ Heat insulation and heat preservation:
The insulation material for the enclosure is high-temperature resistant aluminum silicate cotton.
The door sealing material is: 20*20MM high temperature resistant silicone rubber strip seal.
Application
Glass Panel
Flexible circuit board
Membrane Switch
Machine maintenance
① Before starting work, clean the machine of any debris and wipe it clean. Regularly add lubricating grease to moving parts such as guide rails, guide pillars, and bearings.
② The control panel and buttons should be protected from direct or indirect contact with solvents such as thinner and thinner to prevent damage.
③ The purpose of painting the frame is to prevent the machine from rusting. It is important to prevent solvents such as thinner and thinner from coming into direct or indirect contact with the machine and causing damage.
