Automatic CCD Registration Screen Printer TX-CCD4060
Contact Us
Inquiry
Application
Automatic CCD Image Registration Screen Printing Machine to meet highest demands, with CCD-camera system and movable print table to produce high-quality prints on flat materials such as EL-foils, LGP panels, BEF-films, touch screens, membrane switches, flexible printed circuits, and much more.
Operation Mode:
- The material is loaded manually on activity platform and transferred onto print table in home position.

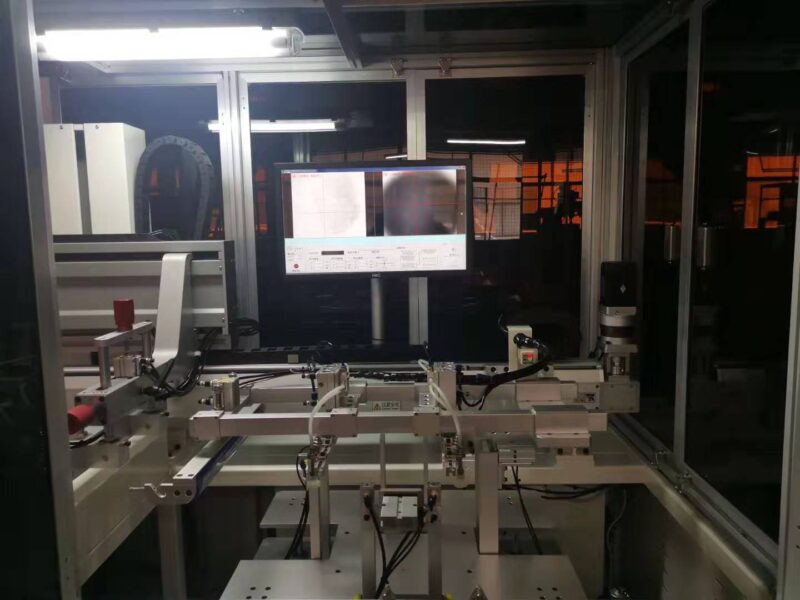

- After detection by the CCD camera the material is positioned with the highestprecision.
- The print table moves into the print station, then the print process startsautomatically.
- The print table moves back to home position.
- The material is then taken off print table automatically by manipulator
Main Features
- Full automatic system, with auto loading and unloading device for improving production yield rate.
- PLC programming, touching screen, simple to operate, easy to use.
- LED Control panel is available for any position by rotating the hunger, easy to operate.
- CCD auto-alignment system ensure accurate printing, the aligning accuracy within +0.01mm, to provide excellent function.
- Top servo motors drive printing fast and smooth, stable and quiet.
- Multi-valued image processing
- Machine components top configuration
- Anti-static bar and anti-dust rollers is optional.
- Fault self detection system with emergency switch and safety protection, and alarm light, etc.
Specifications:
| Model | TX-CCD4060 | Air Source | 0.6-0.8Mpa | |
| Max. Printing Area | 400X600mm | Air Consumption | 15L/min | |
| Table size | 500x700mm | Power Supply | AC380V/50Hz | |
| Max. Screen Frame | 750X1080mm | Power consumption | 5.5kW | |
| Capacity | 400Pcs/h | Mechanical Repeatability: | 0.01mm | |
| Stacking Height | 300mm | Printing Accuracy | ≤5um | |
| Work-Piece Thickness | 0.1-2mm | Machine Dimension | 3500*1100*2050MM | |
| Worktable Displacement | ±5mm | Machine Weight | 950KG |
TaoXing Company Introduction
Taoxing automatic screen printing machine video compilation
Service / FAQ
Guarantee
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy one year of free equipment warranty and lifetime technical support.
Guarantee for Delivery
Safety and fast logistic ensures the goods are delivered on the right time
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：60 business days after received the payment.
4. Departure of port: By sea from Shanghai or Ningbo
5. Delivery means: By sea by land
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Screen printing was a technique first used by the Chinese almost 2000 years ago. It is widely used at home and abroad. Chinese printing machine market has already become the focal point of the world have opened up. We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don’t worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.
