How to Improve Printing Accuracy on Cylindrical Products

Printing crisp graphics on round containers is harder than it looks. Small registration errors become obvious on a curved surface, where a tiny shift reads as a crooked logo. Manufacturers that master these steps gain shelf appeal and fewer rejected batches. This guide shares practical ways to raise print quality on bottles, tubes, and cups.

Why Accuracy Matters on Curved Surfaces

A curved screen printing machine wraps ink around a rotating product, so any spindle wobble appears as blur or doubling. On a flat panel a small error hides; on a cylinder it travels the full circumference. Tight tolerances cut scrap and protect brand identity.

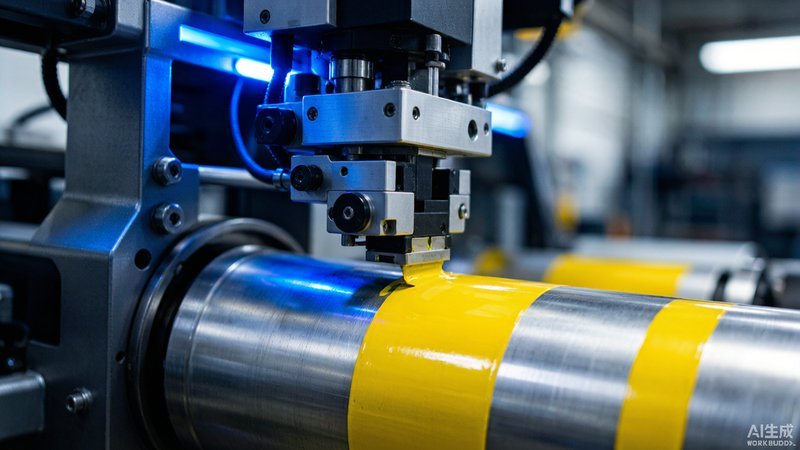

Choose the Right Servo Printer

A servo printer uses closed-loop feedback instead of air pressure, holding angular position within fractions of a degree. That keeps the print seam aligned across long runs. Direct-drive servo spindles also accelerate faster between cycles without losing detail. Stable motion is the foundation of repeatable print quality.

Calibrate the Mandrel and Fixtures

Every cylinder differs in diameter and wall thickness, so the mandrel must match the part. A loose fixture lets the product drift, while an oversized one distorts thin tubes. Run a test spin before each job to confirm concentricity, and document the fixture per SKU to avoid repeat setup losses.

Optimize Screen Tension and Squeegee

Screen tension controls how cleanly ink transfers. Low tension causes fuzzy edges; even, high tension gives sharp lines. Use a squeegee durometer matched to the substrate, and replace the blade before it rounds for consistent pressure. Regular tension checks prevent gradual quality drift.

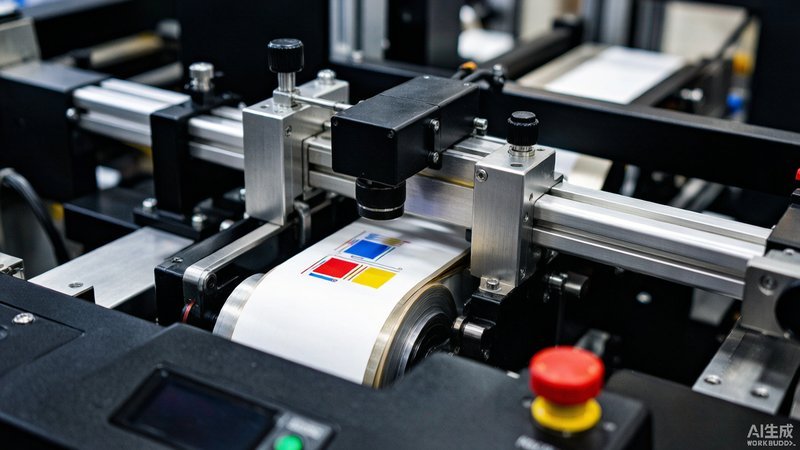

Use Vision Registration and Sensors

Modern servo printer lines add a vision camera that reads a fiducial mark and auto-corrects position before each print. This catches skew and drift in real time. Sensors also verify ink cure and reject out-of-spec parts at inspection. Automated checks remove the human guesswork from alignment.

Control Ink and Curing

Ink viscosity shifts with temperature, so stable storage keeps the deposit predictable. Climate-controlled storage also protects both color and adhesion. UV curing locks the image instantly and prevents smear. Match lamp intensity to ink and substrate, then confirm cure with a rub test.

Choosing Precision Printing Equipment

CooPrinter builds curved screen printing machine systems with servo spindles, vision alignment, and recipe memory for fast changeovers. Tool-free mandrels and automatic screen cleaning cut setup error, while certified parts keep tolerances stable. CooPrinter delivers precision and support that protect print quality.

Applications Across Industries

Beverage makers print water and juice bottles, cosmetics brands decorate tubes and jars, and pharma firms add tamper codes to vials. Each sector needs a clean, legible mark on a curved face, and the same accuracy principles apply at any production scale.

• Servo feedback holds angle within a fraction of a degree
• Vision cameras correct position before each print
• Matched mandrels stop product drift on the spindle
• UV curing locks ink instantly against smear

Conclusion

Improving accuracy on cylindrical products is a system: match the fixture, stabilize motion, verify with vision, and cure consistently. A dependable machine makes these steps repeatable, cutting rejects and strengthening shelf appeal. For servo-driven precision and responsive service, CooPrinter remains a practical partner for growing lines.
