High Definition Silk Screen Printing Manufacturing Case of Piano Acrylic Control Panels
High Definition Silk Screen Printing Manufacturing Case of Piano Acrylic Control Panels

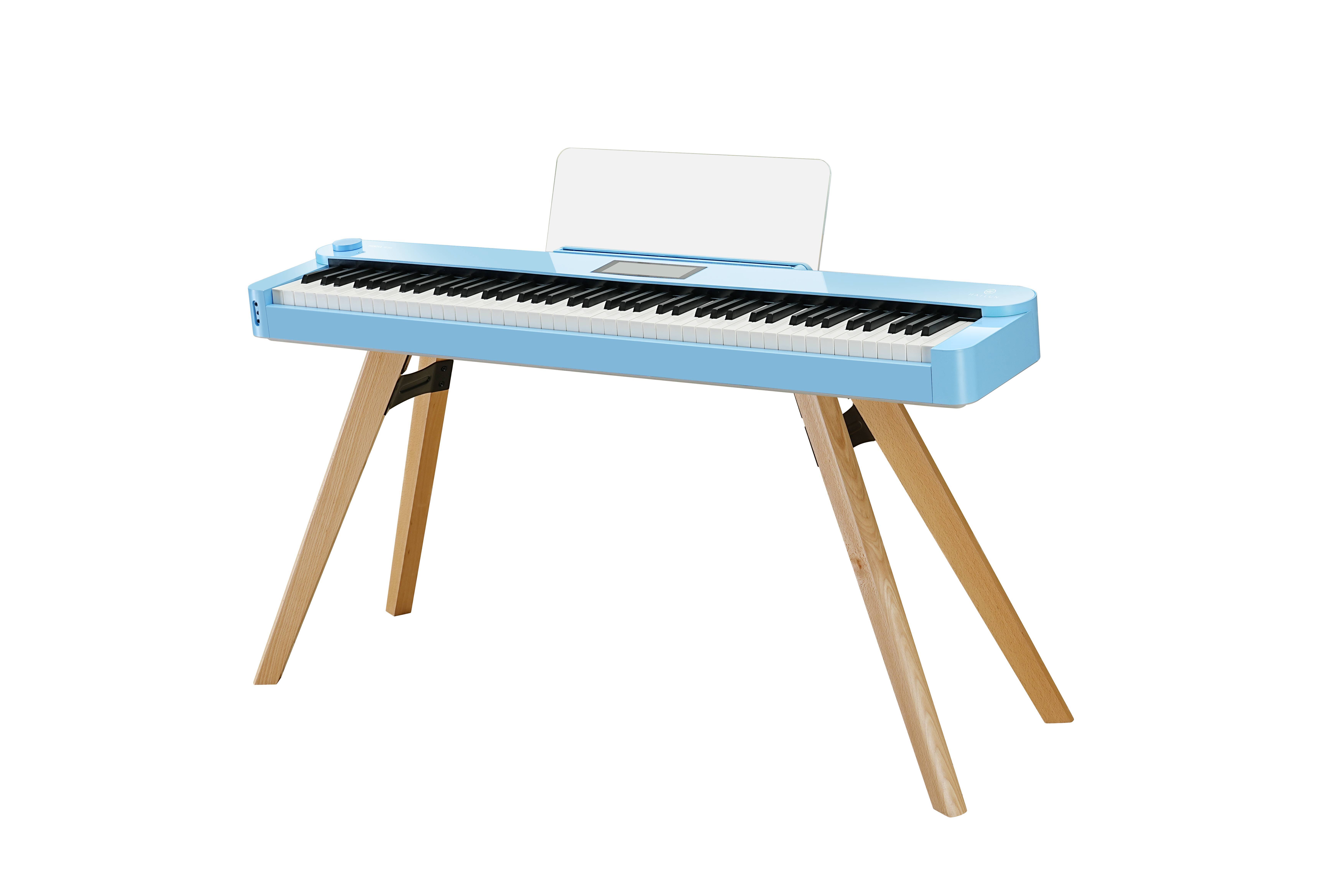

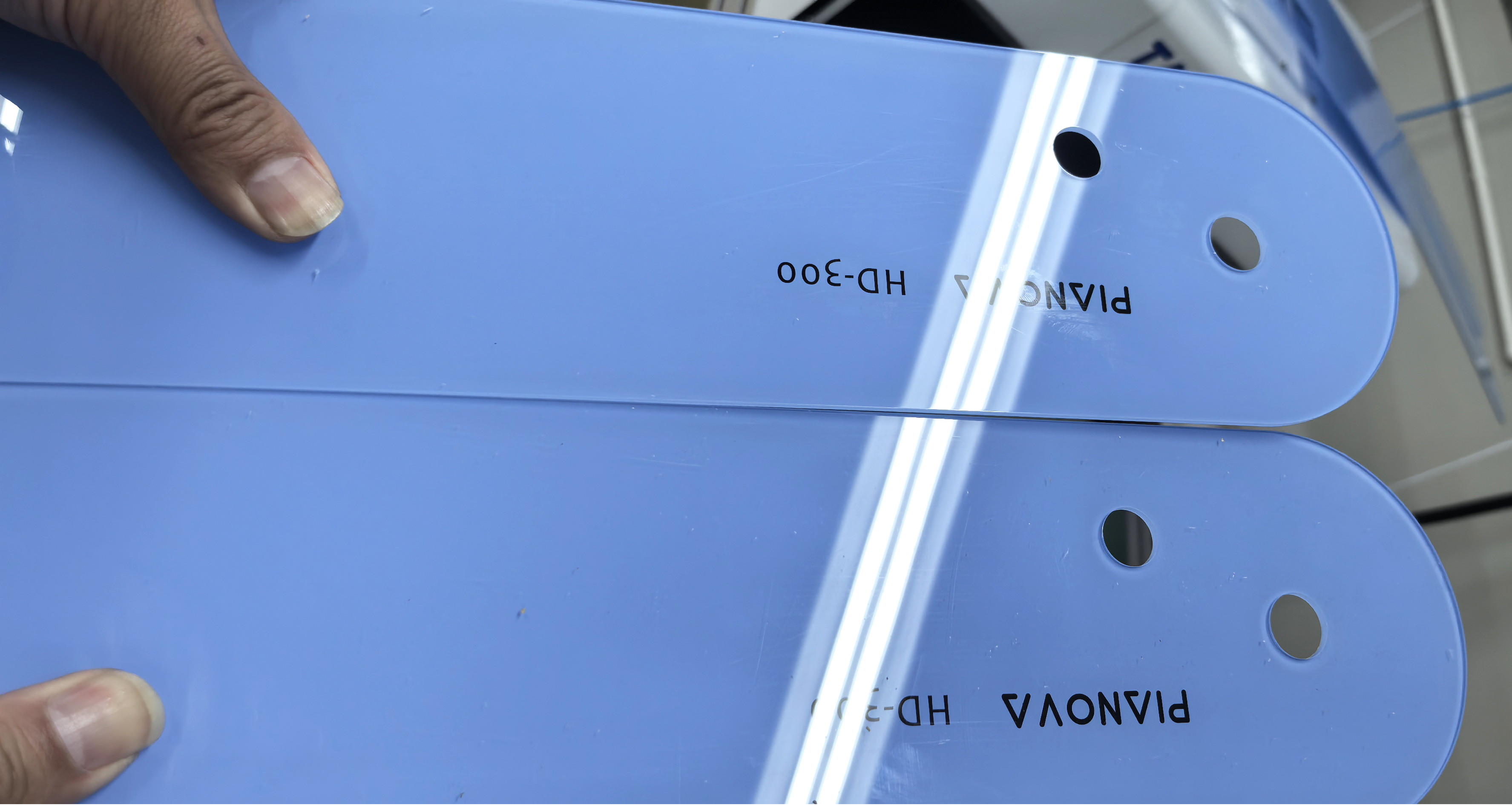

Piano acrylic panels have stringent requirements for print clarity, adhesion, and gloss , demanding a delicate texture and long-lasting durability. This case study utilizes the Taoxing non-standard 40150ST flatbed screen printing machine to overcome the inherent challenges of acrylic materials, achieving high-quality mass production. The following provides a detailed introduction from multiple perspectives.
I. Technological Challenges
1.Smooth surface makes adhesion difficult : Acrylic surfaces are dense and smooth with low surface energy, making it easy for ink to peel off and resulting in poor adhesion.
2.Static electricity attracts impurities : The material is prone to static electricity, attracting dust and lint, which can lead to printing spots and pinholes, affecting the appearance of the panel.
3.Fine patterns are easily blurred : Piano panels often contain delicate lines and gradient patterns, which can easily lead to jagged edges and blurring. A misalignment of more than 0.1mm in the registration and positioning will show as a defect.
4.Ink layer uniformity is difficult to control : large-area solid color printing is prone to bubbles, runs, and uneven gloss, which does not meet the requirements of high-end piano texture.
II. Core Solution
1.Surface pretreatment : First, perform plasma electrostatic dust removal + surface activation , then wipe with anhydrous ethanol to remove oil, increase surface energy and enhance ink adhesion.
2.Special ink matching : Select acrylic two-component special UV ink, and adjust the viscosity to a suitable range with thinner to balance leveling and drying speed.
3.High-precision screen printing : 350 mesh high-tensile polyester screen is used, coated with high-resolution photosensitive emulsion, and precise exposure and development are performed to ensure sharp edges and delicate lines of the pattern.
4.Equipment parameter optimization : Relying on the precise adjustment capabilities of the Taoxing 40150ST screen printing machine, the screen distance is controlled at 2-3mm, the squeegee pressure at 4.5-5.5kg/cm², the speed at 4cm/s, and the squeegee angle at 50° to ensure uniform ink transfer.

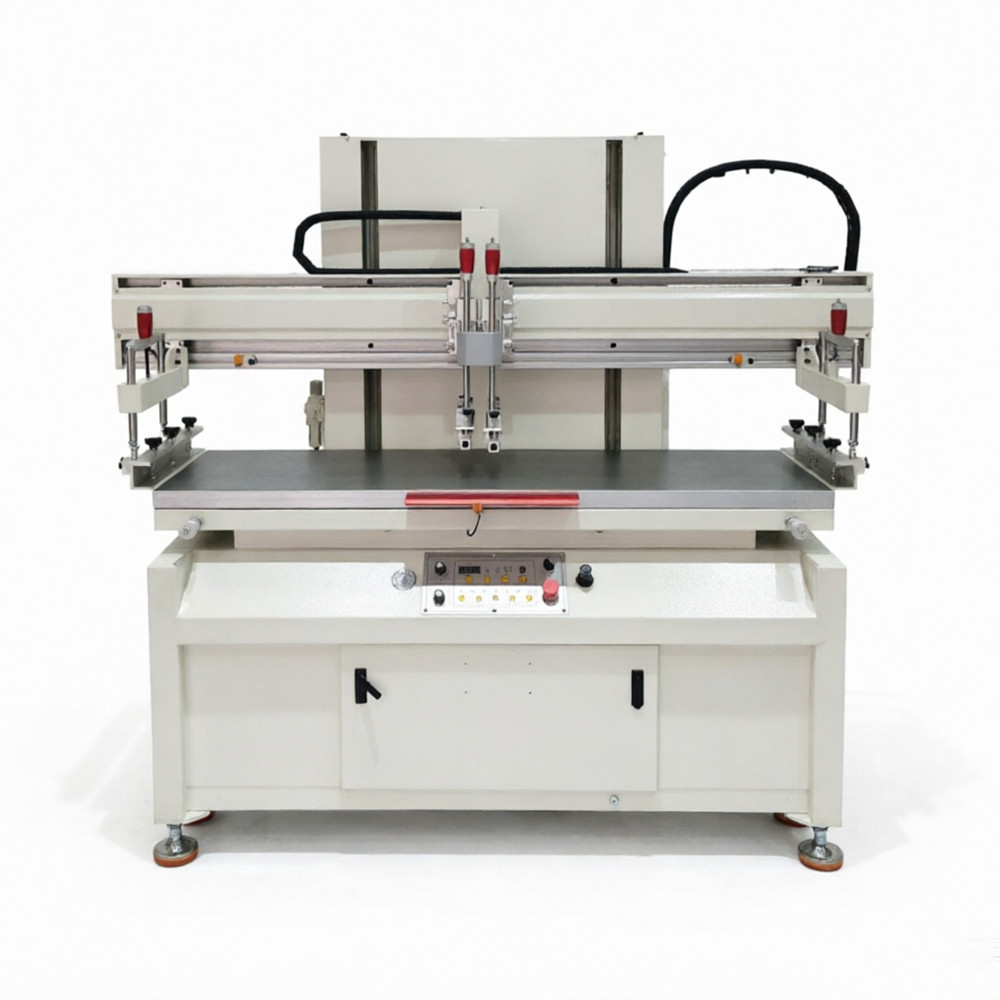

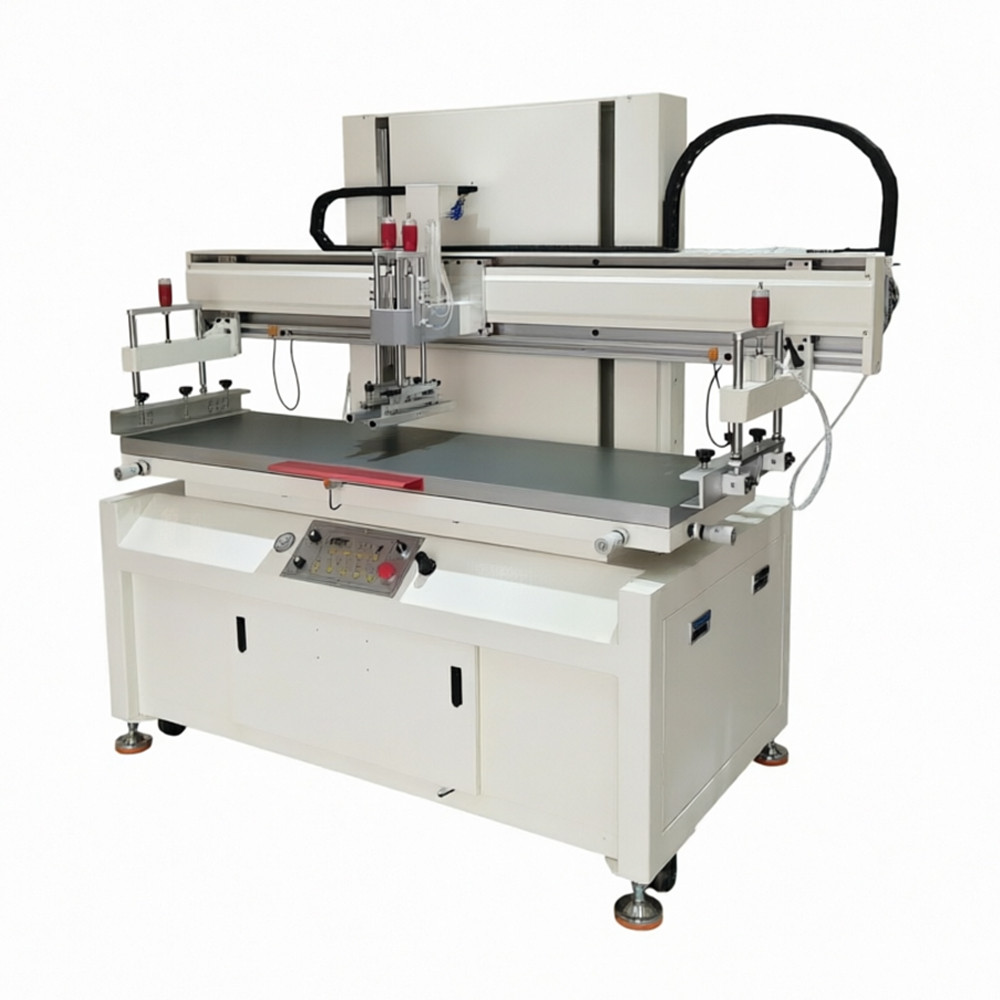

III. Equipment Used: Taoxing Non-standard 40150ST Flatbed Screen Printing Machine
Custom-designed for large-size, high-precision flat printing, compatible with piano acrylic panels (400×1500mm), its core advantages are as follows:
1. Extra-large printing area : The maximum printing area is 400×1500mm, which can meet the requirements of printing a whole strip of piano panel without splicing.
2. Vacuum adsorption platform : Strong vacuum fixation of acrylic plate to prevent slippage and deformation, ensuring overprinting accuracy of ±0.01mm.
3. Servo precision transmission : motor driven, smooth operation, and the squeegee stroke and pressure can be numerically adjusted, suitable for fine patterns and large-area printing.
4. Non-standard customization : Customized extended wire frame brackets and positioning fixtures are compatible with long strip panels for loading, positioning and unloading, improving production efficiency.
IV. Standard Printing Process
1.Preliminary preparation : cut and polish the acrylic panel → activate by plasma dust removal → wipe with anhydrous ethanol → air dry in a dust-free environment; prepare special UV ink, stir evenly and let it stand to defoam.
2.Screen installation : Fix the prepared screen to the machine frame, calibrate the level and tension, and ensure there is no loosening or deformation.
3.Positioning and debugging : Place the panel, start vacuum adsorption → adjust the positioning fixture → print a small sample → check the clarity and adhesion, and fine-tune the parameters until they meet the standards.
4.Batch printing : Formal material feeding → Automatic machine scraping → Screen reset → Material unloading, with uniform speed throughout, and ambient temperature controlled at 22±2℃ and humidity at 55%±5%.
5.Curing quality inspection : After printing, the product is immediately sent to a UV curing machine (800W power) for curing → check the appearance (no bubbles, no missing prints, clear edges) → adhesion test (no paint peeling in the cross-cut test) → qualified products are put into storage.
V. Operating Precautions
1.Environmental control : The workshop should be kept dust-free and dry, with stable temperature and humidity, to prevent dust adhesion and abnormal ink drying.
2.Screen maintenance : Clean the screen after every 50 prints to prevent mesh clogging; clean it promptly after shutdown to prevent ink from drying and damaging the screen.
3.Constant parameters : During mass production, it is strictly forbidden to arbitrarily adjust the printing pressure, speed, and screen distance to prevent batch color difference and accuracy fluctuations.
4.Safety precautions : Operators should wear clean gloves and masks to avoid fingerprints and sweat contamination of the panel; take precautions against ultraviolet radiation during UV curing.
VI. Equipment Maintenance and Upkeep
1.Routine maintenance (daily) : Clean the worktable and vacuum suction holes to remove ink residue and impurities; check the flatness of the scraper and replace it promptly if worn; clean dust from the machine surface and keep it dry.
2.Regular maintenance (weekly) : Add special lubricating oil to the transmission guide rail and slider; check the operating status of the servo motor and vacuum generator, and clean impurities from the filter; calibrate the level and positioning accuracy of the mesh frame.
3.Deep maintenance (monthly) : Disassemble and clean the screen fixing clamps and scraping components; check for loose wiring to avoid short circuits; test vacuum suction force to ensure secure fixation.
This piano acrylic panel printing project successfully addressed the pain points of acrylic printing through targeted process optimization and precise adaptation to the Taoxing non-standard 40150ST flatbed screen printing machine. The finished product features clear and sharp images, uniform and full ink layers, strong adhesion, and high gloss , fully meeting the high-end quality requirements of pianos. Furthermore, production efficiency was increased by 30%, and the defect rate was controlled below 0.5%, providing an efficient and reliable solution for large-size, high-precision acrylic panel printing.
VII. Case Summary
This piano acrylic panel printing project successfully addressed the pain points of acrylic printing through targeted process optimization and precise adaptation to the Taoxing non-standard 40150ST flatbed screen printing machine. The finished product features clear and sharp images, uniform and full ink layers, strong adhesion, and high gloss , fully meeting the high-end quality requirements of pianos. Furthermore, production efficiency was increased by 30%, and the defect rate was controlled below 0.5%, providing an efficient and reliable solution for large-size, high-precision acrylic panel printing.
