In today's rapidly developing optoelectronic industry, the quality of thermal grease application on heat sinks, as core heat dissipation components, directly affects the product's heat dissipation efficiency and lifespan. Recently, Taoxing Technology customized a thermal grease application and printing solution for a well-known optoelectronic company. Leveraging the precise performance of its dual-servo flatbed screen printing machine, the solution completely solved many of the company's problems with manual application, contributing to a dual improvement in production efficiency and product qualification rate, and providing a reliable reference for high-precision production in the optoelectronic industry.
I. Industry pain points become prominent; manual coating is insufficient to meet mass production demands.
This optoelectronic company primarily manufactures heat sinks for various optoelectronic devices, and previously relied on manual methods to apply thermal grease. As a core application of thermal interface materials, the application effect of thermal grease directly affects the heat transfer efficiency between the heat sink and the chip. However, the limitations of manual operation presented the company with multiple production challenges:
1. Uneven coating thickness : Manual application relies on the operator's experience and cannot accurately control the thickness of the thermal paste. Thin areas cannot fully fill the microscopic gaps between the chip and the heat sink, affecting the heat dissipation effect. Thick areas are prone to overflow and waste, and may also cause assembly jamming, which violates the core requirement of "thin and uniform" use of thermal paste.
2. Coating position deviation : The area for applying thermal paste to the heat sink has strict precision requirements, but manual operation is prone to problems such as misalignment and missed application, which results in the thermal paste not being able to completely cover the core heat dissipation area, directly affecting the heat dissipation performance of the heat sink, and even causing hidden dangers such as overheating and decreased stability of the equipment.
3. High defect rate : The consistency of manual operation is extremely poor. Different operators , or even different batches operated by the same operator, may have coating differences, resulting in a high defect rate for a long time. This not only increases the loss of raw materials, but also seriously slows down the overall production progress and raises production costs.
As companies expand their production capacity and demand higher product precision, manual coating can no longer meet the needs of large-scale, high-precision production. There is an urgent need for an automated, high-precision coating solution to break through production bottlenecks.
II. Customized solutions to precisely address production challenges
Addressing the core pain points of this optoelectronic company, Taoxing Technology, after on-site research and technical verification, tailored a customized thermal grease coating and printing solution for them. The core configuration and optimization directions are as follows:
1. Core Equipment Selection: 4060SF Dual Servo Flatbed Screen Printing Machine

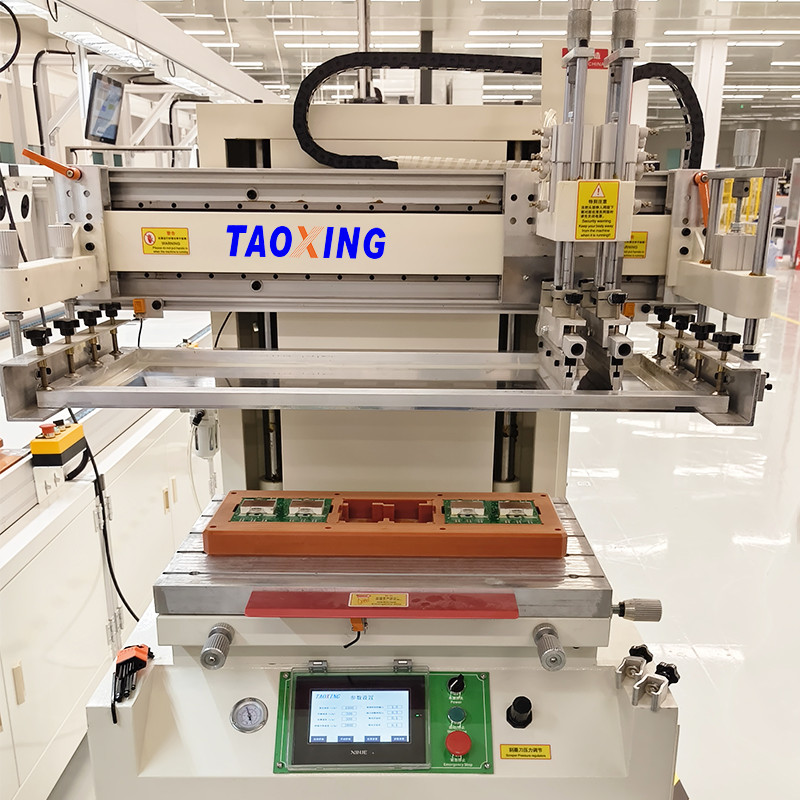

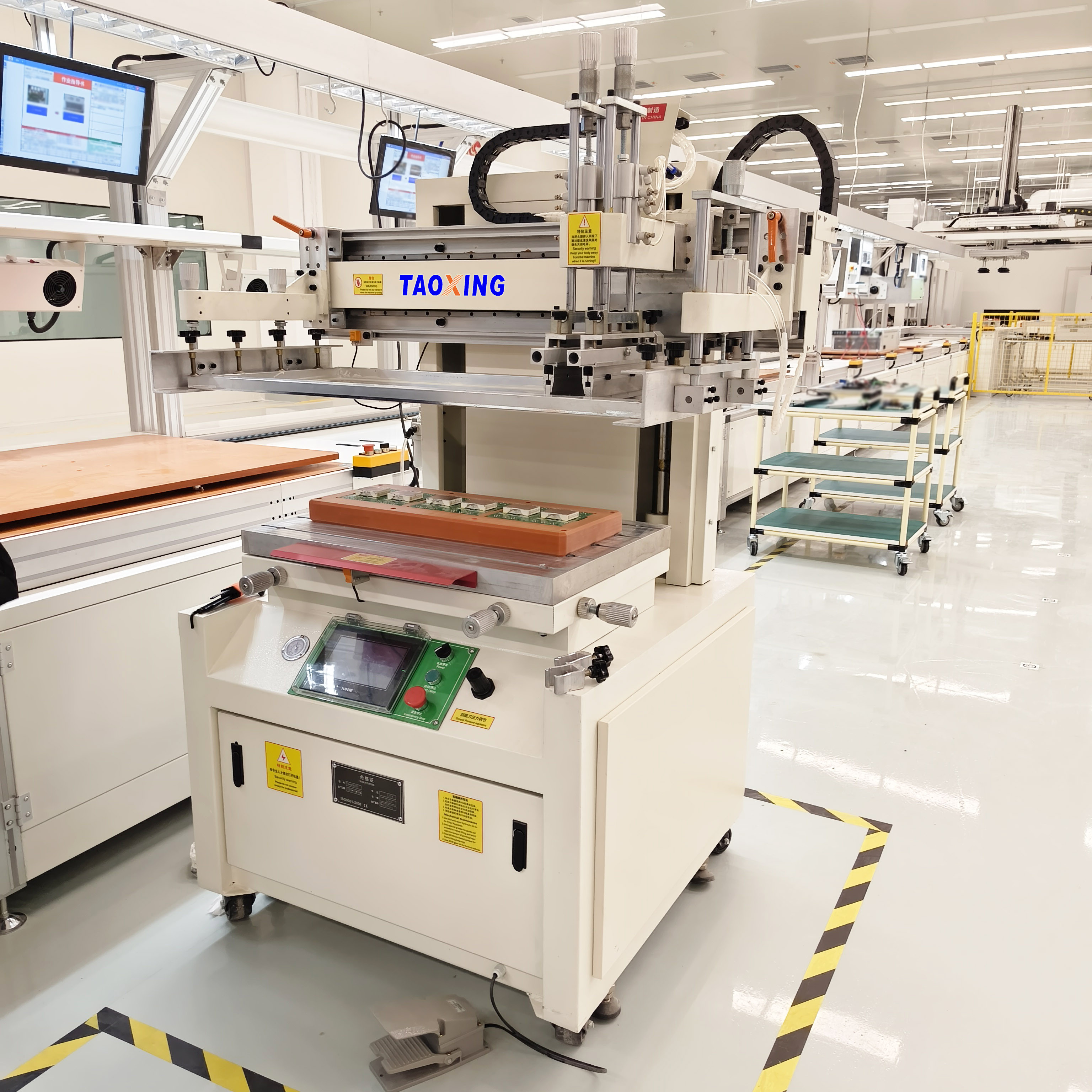

Abandoning traditional manual operations, the Taoxing 4060SF dual-servo flatbed screen printing machine was selected as the core production equipment. This machine is specifically designed for high-precision positioning printing, adapting to the precise coating needs of products such as aluminum substrates and heat sinks. It boasts an ultra-high printing accuracy of ±0.03mm, perfectly matching the fine coating requirements of optoelectronic heat sinks and solving the problem of positional deviation from the source. It adopts a PLC control circuit and a touch screen operation panel, making it easy to operate and providing stable performance. All electrical and pneumatic components are from international brands, ensuring reliability for long-term large-scale production.
Machine Type：TX-4060SF-T Servo Flatbed Screen Printing Machine
2. Screen printing plate optimization and upgrade: Steel plate hollowing manufacturing method
By leveraging the coating characteristics of thermal grease, the traditional stencil is upgraded to a perforated steel plate manufacturing method. Compared to ordinary stencils, the perforated steel plate stencil offers higher flatness and wear resistance, allowing for precise control of the grease penetration and preventing issues such as ink overflow and missed coating. Furthermore, the perforated pattern is precisely designed according to the coating area of the heat sink, ensuring that the grease is applied only to designated areas, further improving the accuracy of the coating position and adapting to standardized mass production requirements.
3. Standardized and Adapted Processes
squeegee pressure, are precisely set based on the size of the heat sink and the required thickness of the silicone grease coating, to achieve automated control of the coating process. At the same time, a dedicated positioning fixture is provided to ensure that the heat sink is firmly fixed during the printing process, avoiding coating deviations caused by displacement, forming a standardized "positioning-printing" process that is suitable for mass production needs.
III. Core Advantages of the Solution: Empowering Production to Improve Quality and Efficiency
After its implementation, this solution completely transformed the company's previous production challenges. Leveraging its core advantages of automation and high precision, it achieved a dual leap in production efficiency and product quality. Specific advantages are as follows:
1. Uniform coating ensures heat dissipation performance :
Taoxing 4060SF dual-servo flat screen printing machine, through precise parameter control and the cooperation of the steel plate stencil, can control the thickness error of the thermal grease coating to a very small range, ensuring uniform coating. This not only fully fills the micro gaps and reduces thermal resistance, but also avoids excess glue and waste, maximizing the heat dissipation effect of the thermal grease and improving the quality of the heat sink product from the source.
2. Precise positioning and reduced defect rate :
The dual servo drive system, combined with a dedicated positioning fixture, enables precise control of the coating position, effectively eliminating the offset and missed coating problems of manual coating. This significantly reduces the product defect rate, reduces raw material waste, and significantly improves production efficiency.
3. Controllable speed, suitable for mass production :
The printing speed of the equipment can be flexibly adjusted according to production needs, up to 1000pcs/h, which is several times more efficient than manual coating. It can easily adapt to the needs of large-scale production of enterprises, greatly shorten the production cycle, and alleviate the pressure of production capacity. At the same time, automated operation reduces the dependence on skilled operators, reducing labor costs and operational errors.
4. Easy to operate and worry-free maintenance :
The equipment adopts touch screen operation, and the parameter settings are simple and easy to understand. Operators can get started after simple training. At the same time, the equipment has a scientific structure and is easy to maintain. Daily cleaning of the screen and scraper can ensure stable operation of the equipment, reduce the impact of equipment failure on production, and further improve production continuity.
IV. Industry Outlook: Deepening Automation to Facilitate the Intelligent Upgrading of the Optoelectronic Industry
Currently, the new energy and optoelectronic industry is experiencing a period of rapid development. With the continuous iteration of technology and the increasing demands for product precision, production automation and intelligence have become inevitable trends in the industry. The large-scale production of products such as 3D printed heat sinks and high-precision optoelectronic components has placed higher demands on the precision and efficiency of supporting equipment.
As a company that has been deeply involved in the screen printing equipment field for more than 20 years, Taoxing Technology has always been guided by industry needs, focusing on the research and development and production of high-precision and automated screen printing equipment. It has not only launched the 4060SF dual-servo flat screen printing machine adapted for heat sink grease coating, but also covers a variety of screen printing equipment adapted for photovoltaic, electronics, automotive electronics and other fields, providing the industry with full-process printing solutions.
In the future, Taoxing Technology will continue to increase its R&D investment, keep pace with the development of the new energy and optoelectronic industries, continuously optimize product performance, develop and produce more screen printing machines suitable for high-precision product printing, break through technical bottlenecks, improve automated production support, and provide better equipment and services to help the industry achieve intelligent and large-scale upgrading, injecting continuous power into the high-quality development of the industry.
Taoxing Technology – Over 20 years of professional manufacturing and sales of screen printing machines, pad printing machines, hot stamping machines, as well as pre-press plate making and post-press curing equipment. We focus on solving various high-precision printing problems. Nationwide customer service hotline: 400-683-6008. We look forward to working with you on a new journey of industrial upgrading!
