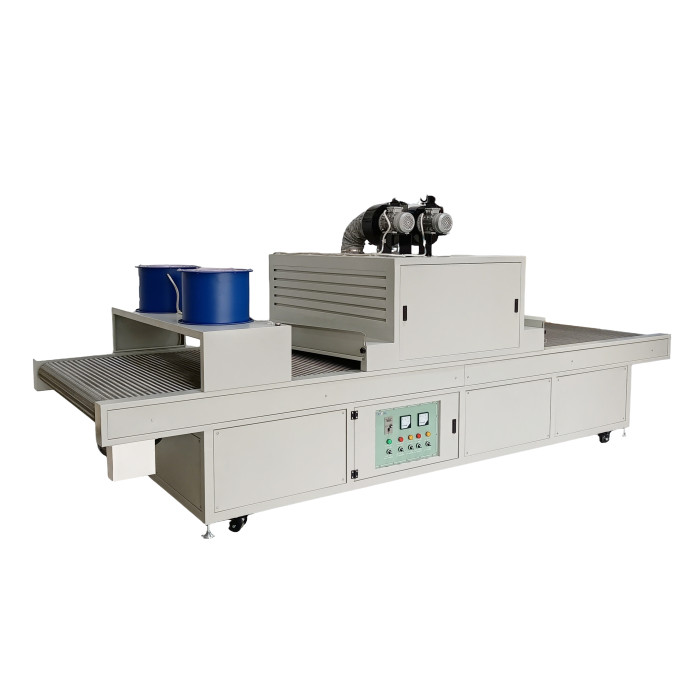

Taoxing Large Format Flatbed UV Curing Machine With High-Power UV Lamps for Glass and Metal Sheet Printing

Taoxing Technology's large-format flatbed UV curing machine with high-power UV lamps enables uniform large-area irradiation, fast curing, low thermal damage. Equipped with intelligent dimming & efficient heat dissipation, it has flexible parameters for diverse processes, stable and easy to operate. Suitable for glass, metal, acrylic, etc., widely used in advertising, building materials, electronics, auto parts, printing & packaging for curing inks, coatings, adhesives, meeting industrial mass production needs.

Share
Categories	UV Curing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-1300UV
Model	TX-1300UV
UV Lamp Power	9.6KW*2pcs
Conveyor Belt Material	Stainless Steel
Conveyor Belt Width	1300mm
UV Section Length	1500mm
Inlet/Outlet Length	1500/1500mm
Conveyor Belt Height from Ground	850mm
Input Speed	0-5m/min (Adjustable)
Drive Type	Variable-Speed Motor Drive
Control Type	Button Switch
Overall Dimensions	L4500W1560H1500mm
Weight	About 800KG
FOB port	Shanghai or Ningbo
Terms of Payment	T/T
Download
Update Time	Feb 8,2026

Contact Now

Favorites

Detail Information

Introduction of TX-1300UV Curing Machine

Application Scope: This UV curing machine is suitable for curing and drying UV printing inks on large-size products such as glass, acrylic, plastic sheets, and metal plates.

Main Performance

1.The UV curing machine features a novel design, attractive appearance, and excellent practical operability, equipped with famous-brand lamps and a variable-speed motor. Its curing effect and technical parameters far exceed similar products; the operability and controllability of the variable-speed motor can fully meet the required demands. The stainless steel conveyor belt is a highly wear-resistant and durable material.

2.The exhaust system adopts a centrifugal fan installed at the top of the machine, providing strong and uniform air extraction for effective heat dissipation and ventilation. In addition, 2 cooling fans are installed at the discharge end to quickly reduce the surface temperature of the cured products, making the patterns and texts on the products more firm.

Product details

Operation Steps

1.Open the lamp cover, adjust the height of the lampshade to the required height for the product, and then close the cover.

2.Turn on the main power switch, and the power indicator light will be on.

3.Turn on the air circulation switch; the air circulation indicator light will be on, and the air circulation motor will start working. (Note: When the air circulation motor is working, clockwise rotation is normal; otherwise, the motor phase needs to be adjusted) Follow the arrow direction.

4.Turn on the variable-speed motor switch, twist the governor, and select an appropriate speed to suit the product.

5.Turn on the UV lamp switch; the ammeter will display the corresponding current of the lamp's power (when turning off and then on the lamp, it is necessary to wait for the lamp to cool down before restarting).

6.After completing the work, first turn off the UV lamp, then the variable-speed motor, followed by the air circulation switch, and finally the main power switch.

7.The top air circulation motor generally starts rotating 2 minutes after the lamp is turned on. (Note: This function is pre-set and does not require additional settings)
