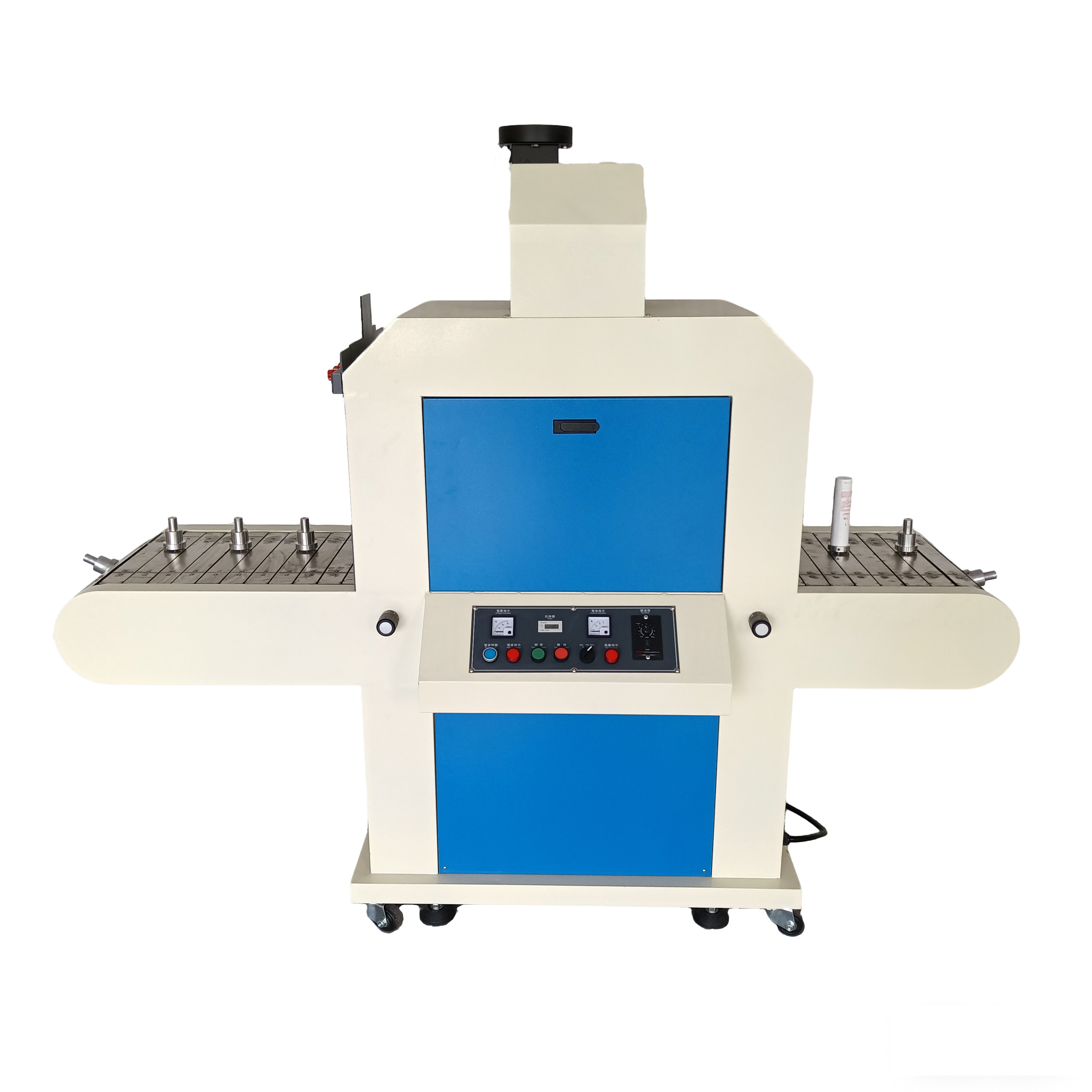

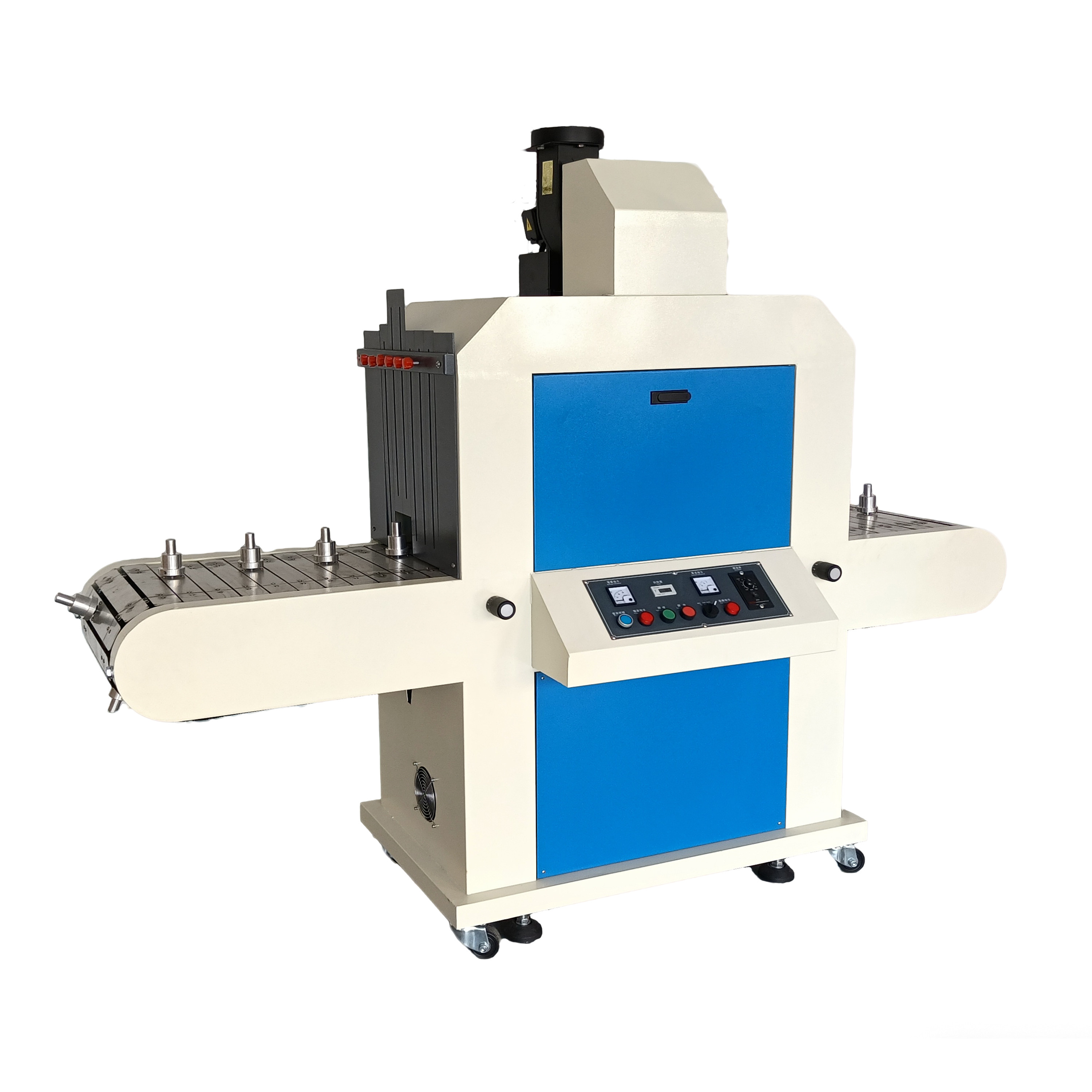

Small Round Bottle UV Curing Machine For Cup And Bottle Printing
Small-sized UV curing machine, perfectly suited for small round bottles. Guarantees quick and consistent curing.
| Share | |
|---|---|
| Categories | UV Curing Machine |
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-UV200PY |
| Type | UV curing machine |
| Rated voltage / light power | AC 380V |
| Weight | 150 KG |
| Max diameter | 200mm |
| Max Height | 280mm |
| Speed | 1-10 m/min |
| UV lamp power | 6.0KW |
| Machine Dimensions | W700*L2000mm |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | T/T |
| Download |  |
Detail Information
Introduction of Small Round Bottle UV Curing Machine
Designed for small round bottles. This compact UV curing machine delivers fast, uniform curing, enhancing production efficiency.
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
Main parameters
Max diameter: φ200mm
Max Height: 200mm
Speed: 1-10 m/min
UV lamp power: 6.0KW
Power: 380V three phase
Dimensions: W700*L2000mm
Features and Performance
1) There are 1 sets of UV light source system,please utilize it according to the detailed requirement

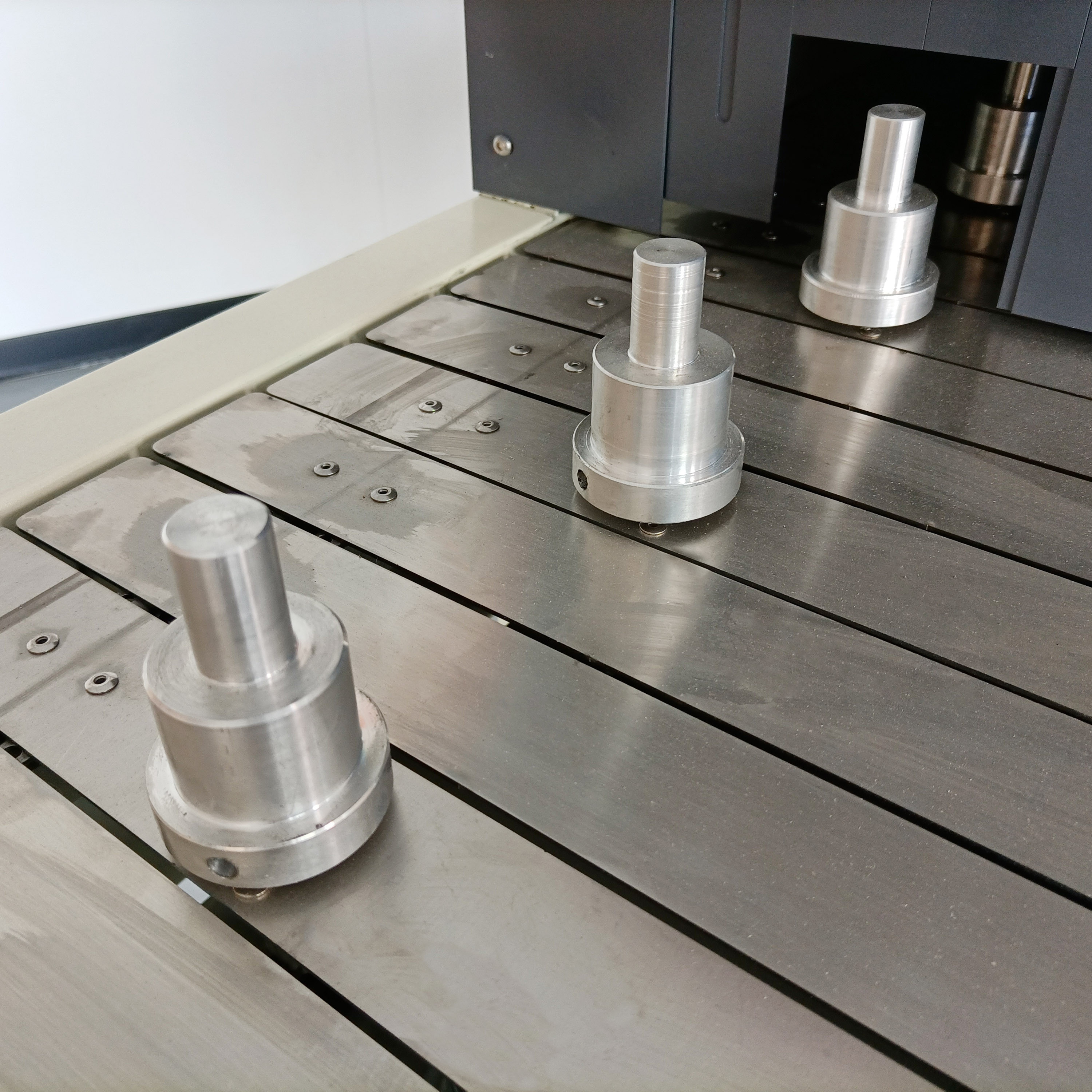

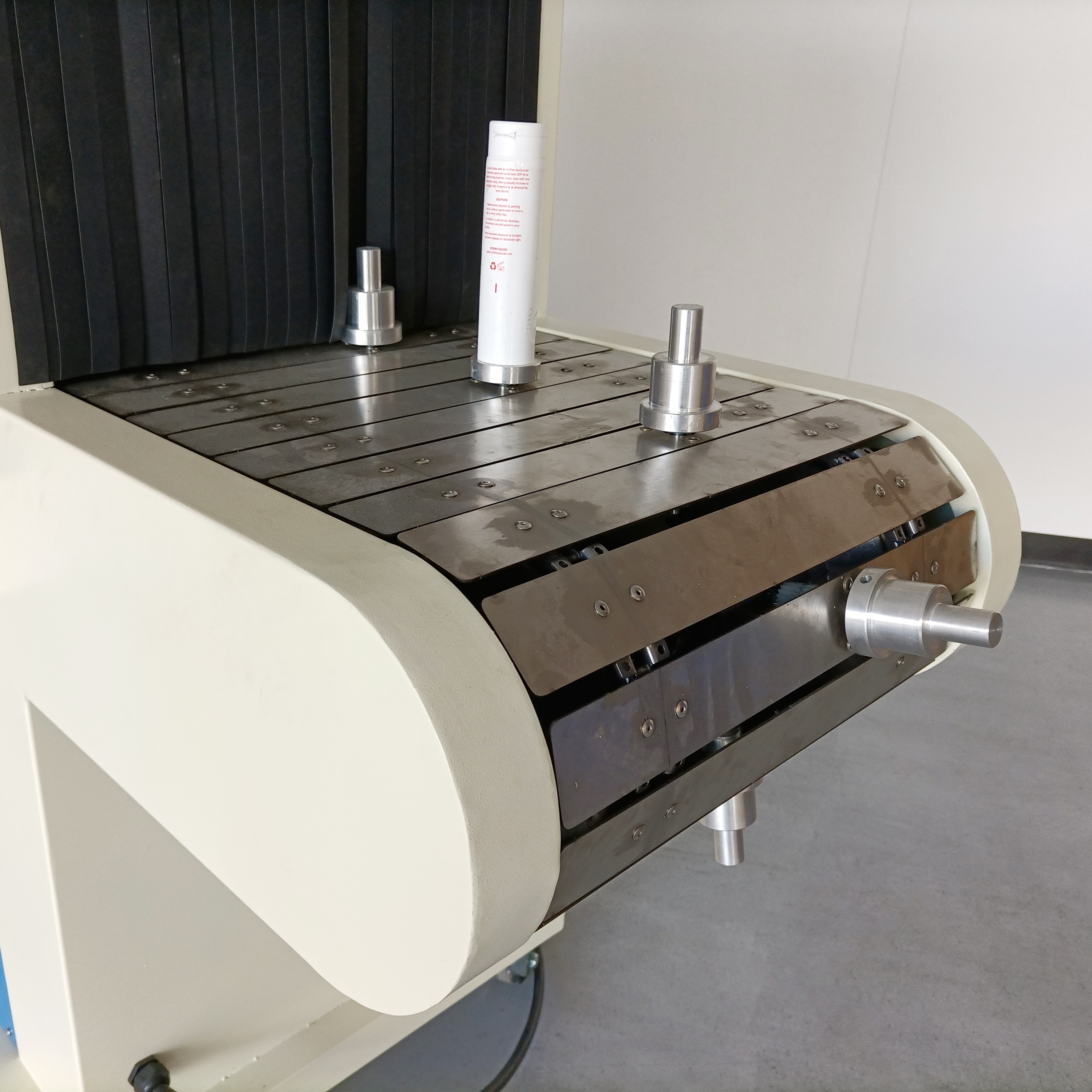

2) The imported Teflon mesh belt conveyor, it is enjoying precise production, smooth running , and restful.
3) The speed of conveyor is adjustable，it can be adjusted any reasonable speed you need.

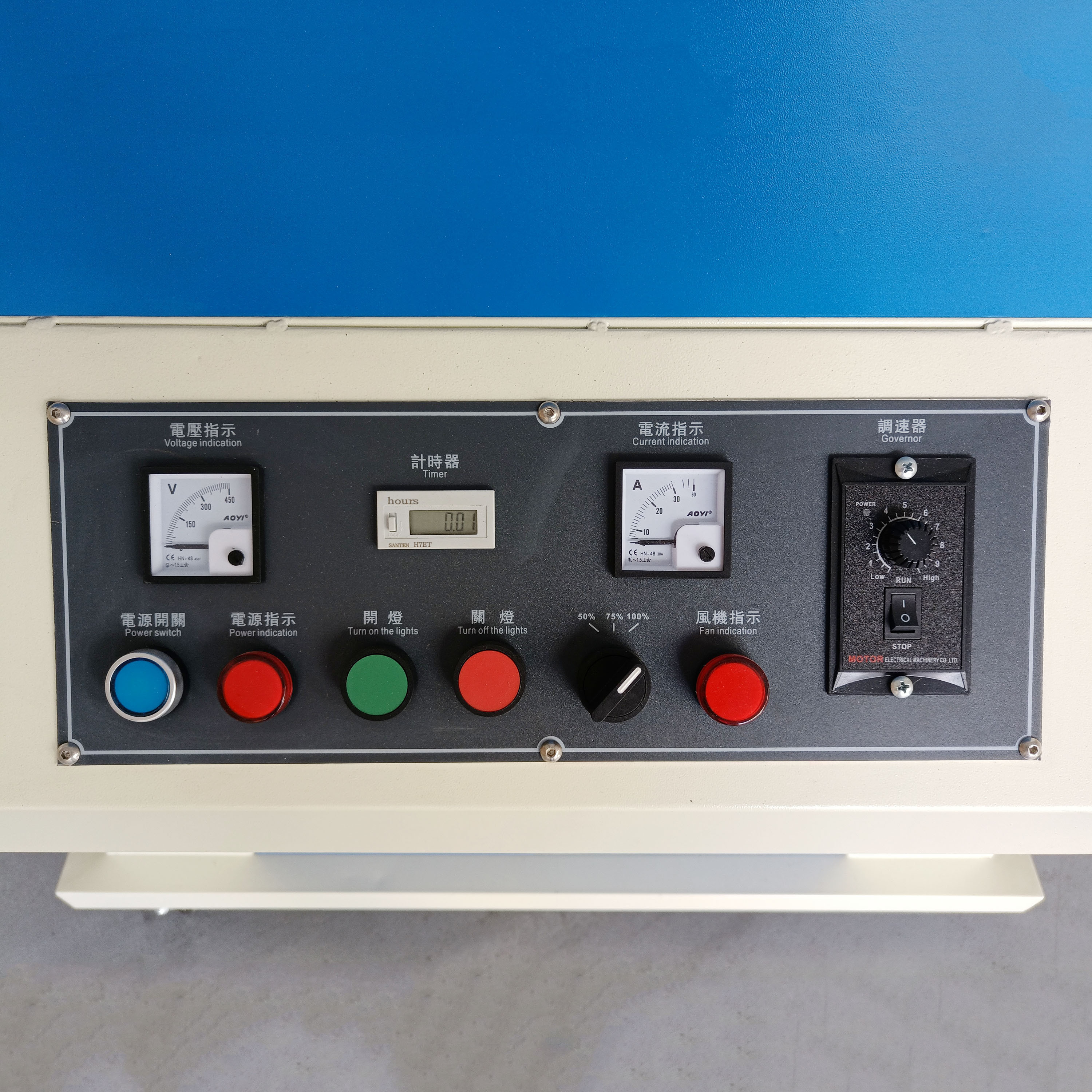

4)The operating current of UV lamp is showed outside so as to control the working status.
5) There is a heat-extraction system to keep a high-efficiency working environment.
Appearance pictures
