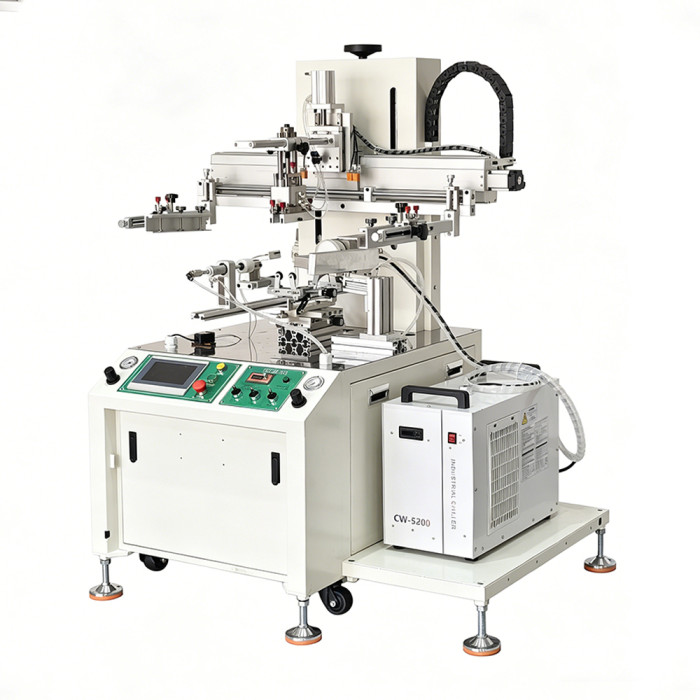

Servo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and Cups

Servo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and Cups
Servo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and CupsServo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and CupsServo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and CupsServo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and CupsServo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and Cups
This TX-500SF-LED servo curved surface screen printing and curing all-in-one machine is suitable for precise positioning and color printing of surface patterns and text on various round products such as plastic bottles, glass bottles, and metal cans
Share
CategoriesCurved Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-500SF-LED
Max printing area200*450mm
Substrate Diameter≤120mm
Printing Speed800-1000pcs/hour
Max screen frame300*600mm
Max Printing length300mm
Machine Weight266kg
Power Supply380V,50/60/HZ/2KW
Machine DimensionL1220*W1100 *H1610mm
Air pressure4-6kgf/cm2
Application AreasCups, bottles, cans, metal pipes,
FOB portShanghai or Ningbo
Terms of PaymentT/T
DownloadDownload pdfDownload docDownload pdf
Detail Information
Introduction  TX-500SF-LED Servo Curved Surface Screen Printing and  Curing Integrated Machine

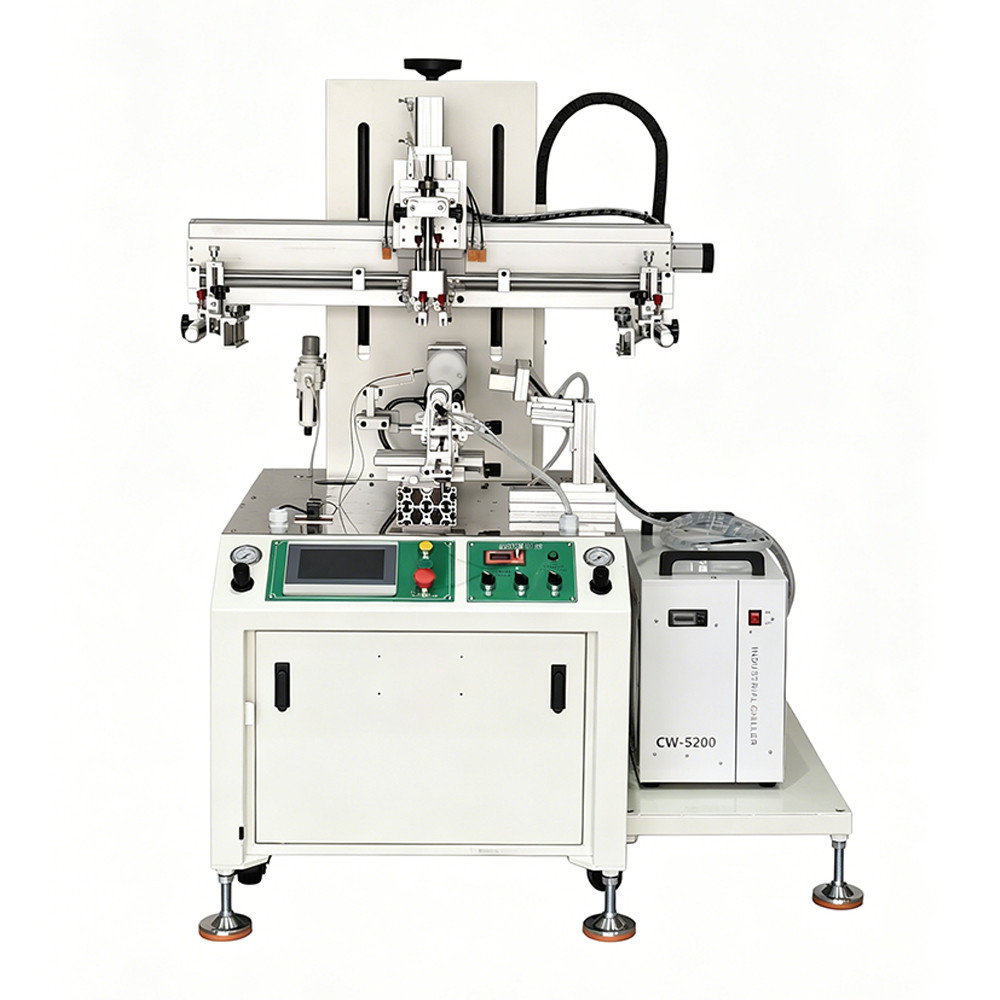

Servo curved screen printing machine
This TX-500SF-LED servo curved surface screen printing and curing all-in-one machine is suitable for precise positioning and color printing of surface patterns and text on various round products such as plastic bottles, glass bottles, and metal cans .

Main parameters


Model :  TX-500SF-LED
Max Printing area: 200*450mm
Air pressure:  5 bar
Rated voltage/Power: 380V/50HZ/2000W
Max printing speed: 800-1000(PCS/H)
Max screen frame: 300*600mm
printing size:  Φ150*200mm
Printing length:  ≤300mm
Dimension Size : L1220*W1100 *H1610mm
Gross weight : 266 KG



Main performance
① The PLC controls all functions, with a high degree of automation, simple and convenient operation , and a built-in four-digit automatic counter.
② Adding an LED curing lamp can quickly cure the printed pattern.
③ It automatically performs ink scraping, ink return, and worktable lifting, which simplifies operation and ensures stable printing quality.
④ The printing stroke and speed are adjustable to meet different printing requirements.
⑤ The automatically balancing scraper ensures even printing pressure.
⑥ Both the worktable and the screen frame can be finely adjusted forward and backward, left and right, and up and down, resulting in high printing accuracy and convenient and quick adjustment.
⑦ The scraper section can be lifted independently for easy and convenient replacement and cleaning of the mesh frame.

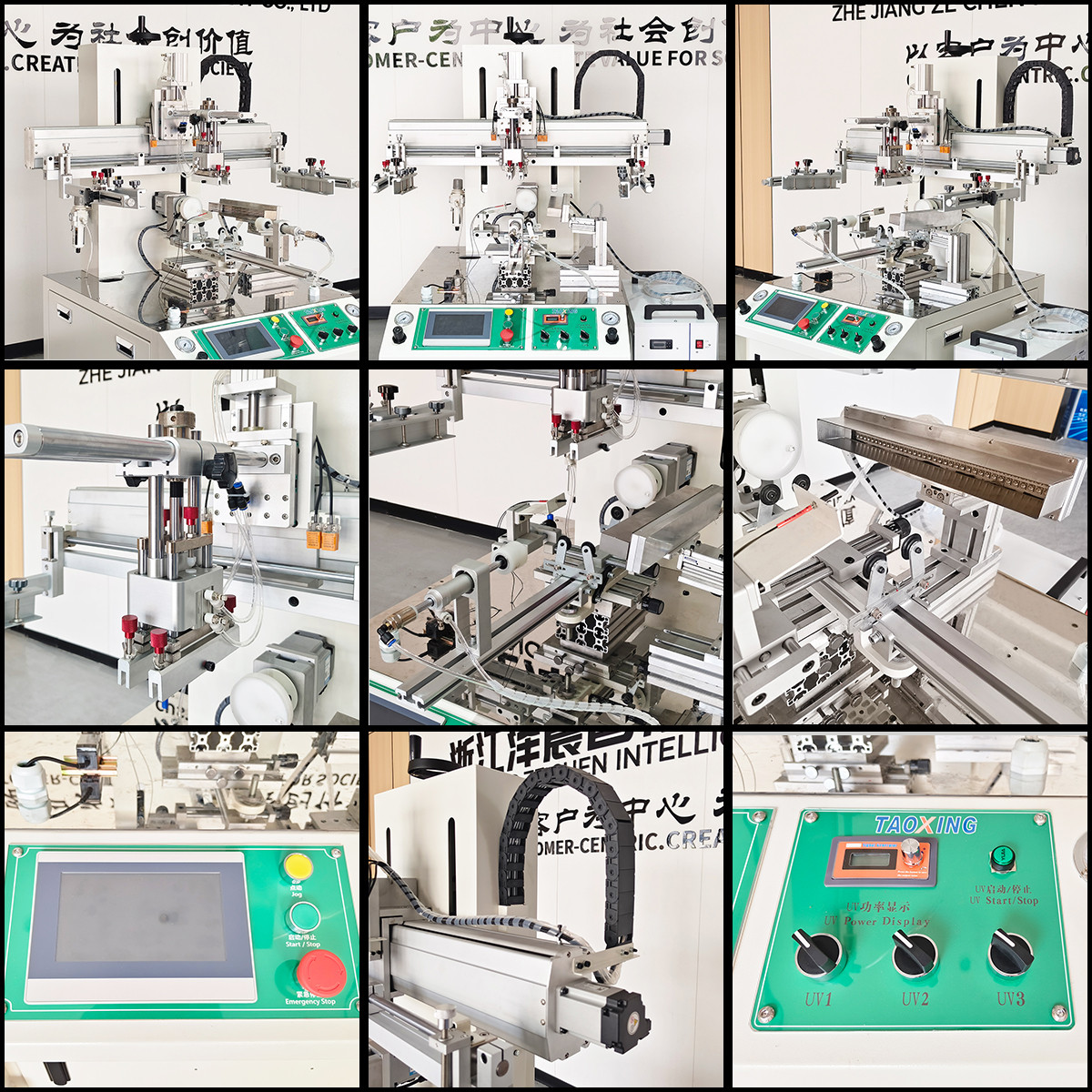

Details pictutre
Printing samples
Cosmetic bottles
Wine Bottle
Glass glue bottle
Automobile piston
TX-500SF-LED Servo Curved Screen Printing And UV Curing Integrated Machine
