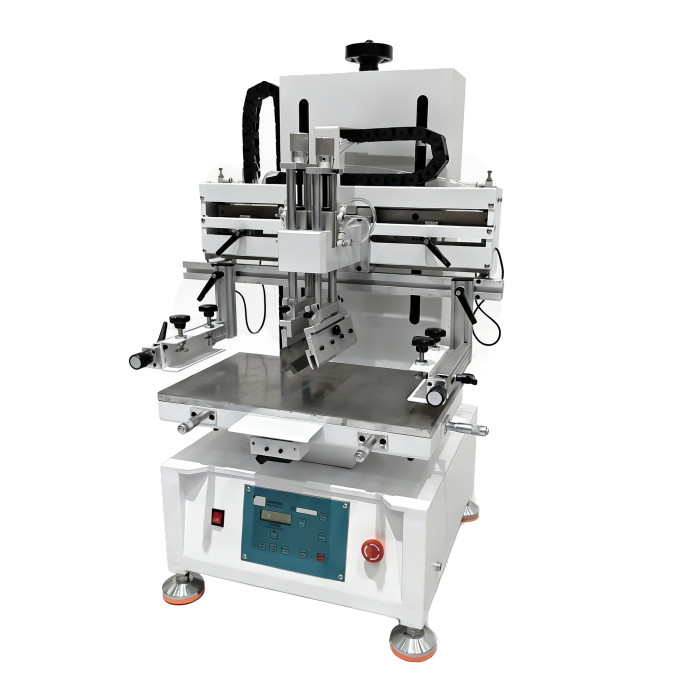

Desktop Pneumatic Flatbed Screen Printing Machine TX-3050SD for Glass and Plastic Panel

The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.

Share
Categories	Semi-Automatic Flat Screen Printing Machine
Trademark/Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-3050SD
Printing Thickness	≤80mm
Max printing area	250*400mm
Air pressure	4.0～6.0 kfg/c㎡
Platform size	300*500mm
Rated voltage/Power	220V/50HZ/50W
Max size of screen frame	500*700mm
Printing speed	1000pcs/h
Package size	7007001050mm
Weight	120KG
Model	TX-3050SD
FOB port	Shanghai or Ningbo
Terms of Payment	T/T
Download
Update Time	Dec 25,2025

Contact Now

Favorites

Detail Information

Introduction of Desktop Pneumatic Flatbed Screen Printing Machine

The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.

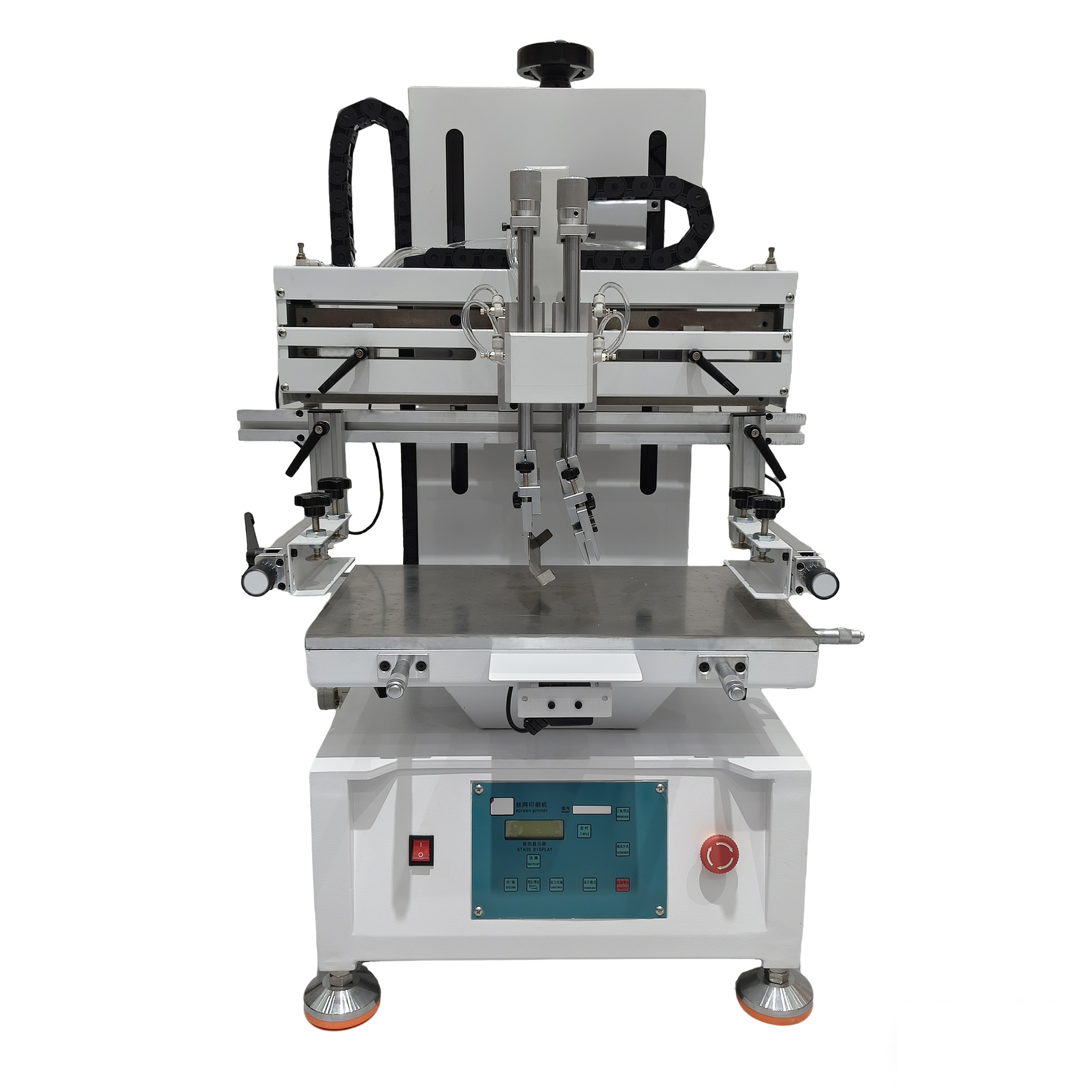

Fully automatic CCD screen printing machine

Specification

Model: TX-3050SD

Printing Thickness: ≤80mm

Max printing area: 250*400mm

Air pressure: 4.0～6.0 kfg/c㎡

Size of printing table: 300*500mm

Rated voltage/Power: 220V/50HZ/50W

Max size of screen frame: 500*700mm

Printing speed: 1000pcs/h

Packing size: L700*W700*H1050mm

Weight: 120KG

Configuration Instructions

1. Employs a micro-controller in conjunction with a touch-sensitive panel for program compilation; the control panel is clear, easy to operate, and displays in both Chinese and English.

2. A four-digit counter tracks the number of prints; clearly displays the current production output.

3. All-cast aluminum body with a metallic paint finish.

4. Dual-column lifting structure for stable and high-precision operation.

5. Pneumatic screen cleaning device; simple and convenient, eliminating the need for manual print head lifting; one-button screen cleaning.

6. The screen frame's up/down movement and the printhead's left/right movement are both driven by cylinders.

7. Left/right travel is adjustable, with photoelectric switch limiters.

8. The doctor blade/ink return blade angle is arbitrarily adjustable.

9. A doctor blade constant pressure device ensures stable pressure during printing.

10 .(1)The worktable can be finely adjusted in terms of forward/backward movement, left/right movement, and rotation angle; 1. The screen frame can be adjusted forward/backward movement, left/right movement, horizontal movement, and height;

(2) The suction stainless steel tabletop can adsorb various film products;

(3) Equipped with Taiwan CEC hydraulic dampers in all directions to effectively eliminate printing vibration;

(4) The machine operates quickly, smoothly, and with low noise;

(5) Operating mode selection: fully automatic | semi-automatic | manual;

(6)Operation method: panel and foot switch . Two operating methods .

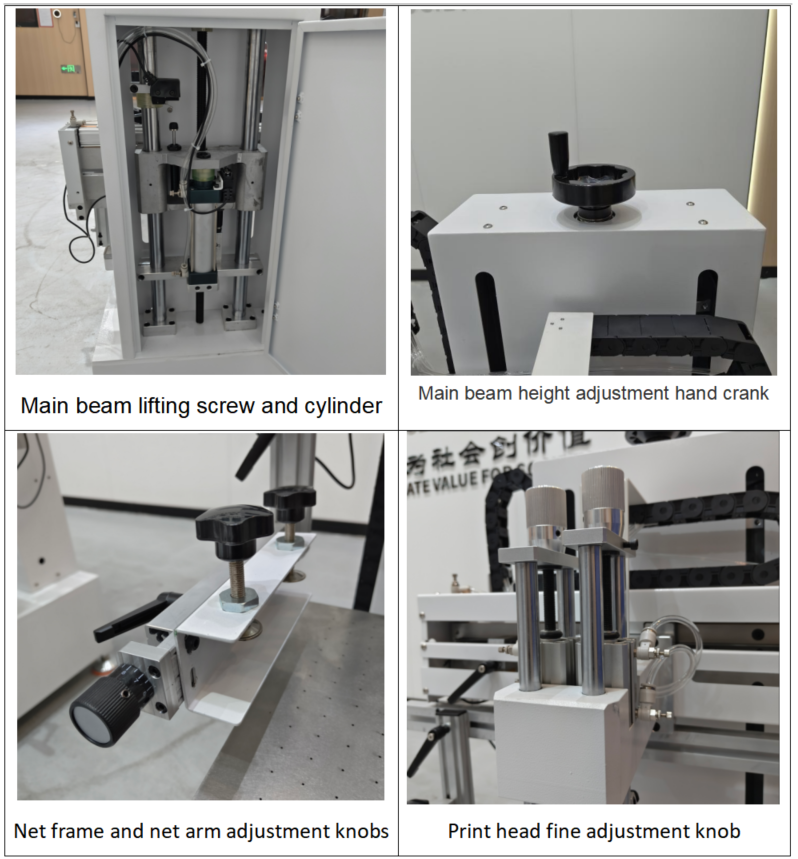

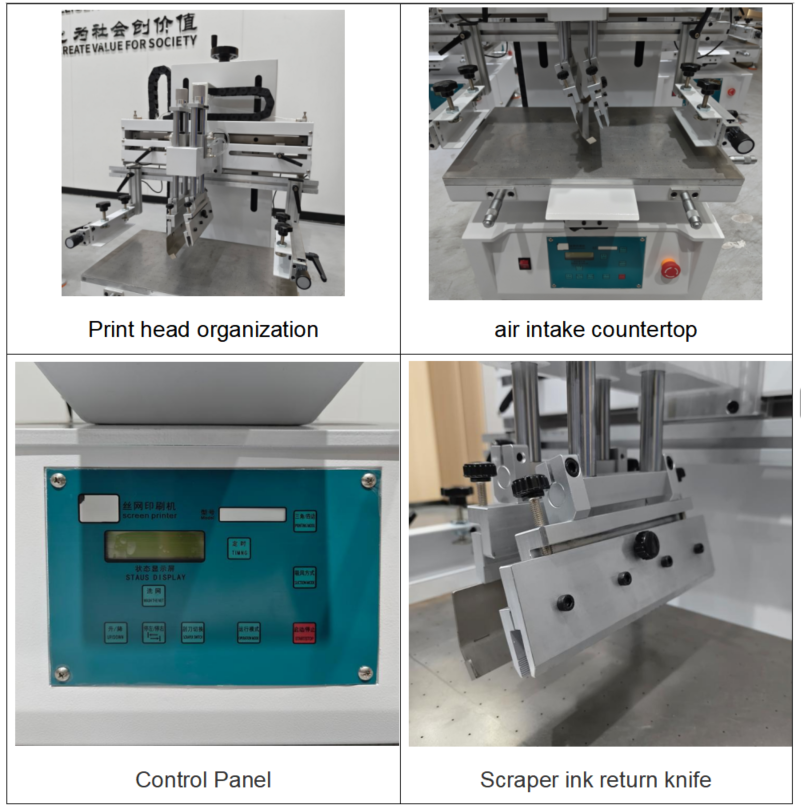

Machine Details
