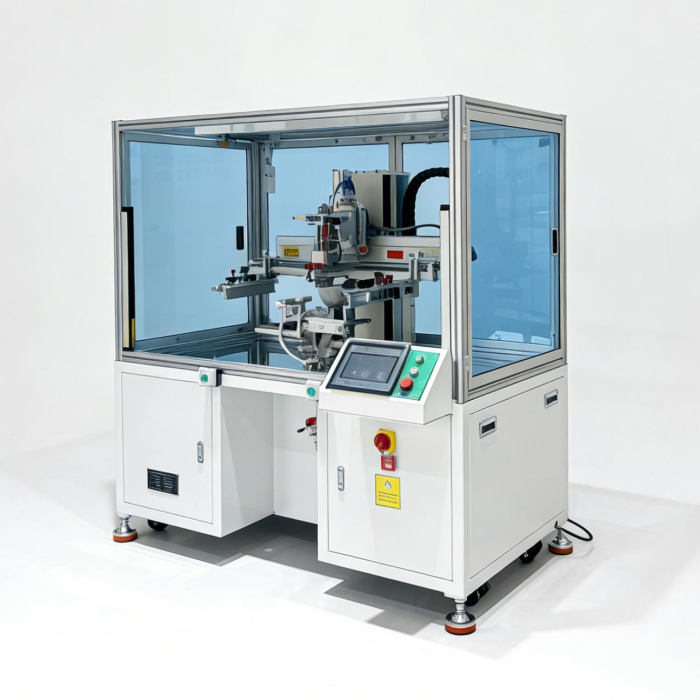

TX-500SZ Three-Axis Semi-Automatic Servo Piston Printing Machine

Transform your printing process with the TX-4060ST Semi-Automatic Flat Screen Printing Machine for paper and glass. Explore our OEM and wholesale services now!A dedicated printing machine for pistons, suitable for printing and coating on the surface of pistons with cylinder diameters of 60-100mm and piston heights ≤150mm.
The product diameter is set, the stroke is automatically switched, and printing can be started by simply changing the fixture. The mechanical movement accuracy is ±0.1mm.
Simple and convenient to operate:
1、1. Time to change the screen plate < 10 minutes; 2. Time to change the fixture < 5 minutes; 3. Time to change the shape < 20 minutes.

Share
Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-500SZ
model	TX-500SZ
Printing speed	400-800pcs/h
power supply	1AC/220V/50HZ
Printed layer thickness	3-13 micrometers
Printing diameter	φ71mm
Printing area	100*450mm
Maximum screen size	300×650mm
Printing screen pressure	0.3-0.5MPa
FOB port	Ningbo
Terms of Payment	T/T
Download
Update Time	Mar 11,2026

Contact Now

Favorites

Detail Information

Performance Features

1. Drive and control : Siemens PLC + touch screen control, three-axis servo bus drive, supports manual/semi-automatic switching, printing stroke, speed, and screen distance can be stored and recalled with one click, and the operation threshold is low.

2. Printing and positioning mechanism : Automatic squeegee/ink return/screen lifting, automatic squeegee balancing; fine adjustment of the worktable in front and behind, left and right, and up and down, adaptable to the elliptical skirt of the piston and irregular curved surfaces; optional vacuum platform, thin-walled piston without indentation.
