High Precision L -Type Dual Servo Flat Screen Printer Industrial Screen Printing Machine For Metal Box

Suitable for high-precision positioning printing of various plastic boxes, electrical boxes, sheet metal chassis, medicine boxes and other cuboid products .

Share
Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-4060SF-L
Printing color	Single color
Operating mode	Semi-automatic
Printing speed	800 pcs/hr
Maximum mesh frame size	700*900mm
Printing size	400*600mm
Printing Thickness	≤600mm
Printing pressure	4.0~6.0 kfg/c㎡
Voltage/power	AC220V / 1.2 KW
Dimension	L1400 W900 H1850 mm
Printing type	Screen Printing Machine
Weight	200KG
Platform size	500*700mm
Printing accuracy	± 0.05mm
FOB port	Shanghai or Ningbo
Terms of Payment	T/T
Download

Contact Now

Favorites

Detail Information

Introduction of TX-4060SF-L Dual Servo Flatbed Screen Printing Machine

Application

This Dual Servo Flatbed Screen Printing Machine is suitable for high-precision positioning printing of various plastic boxes, electrical boxes, sheet metal chassis, medicine boxes and other cuboid products .

Main performance

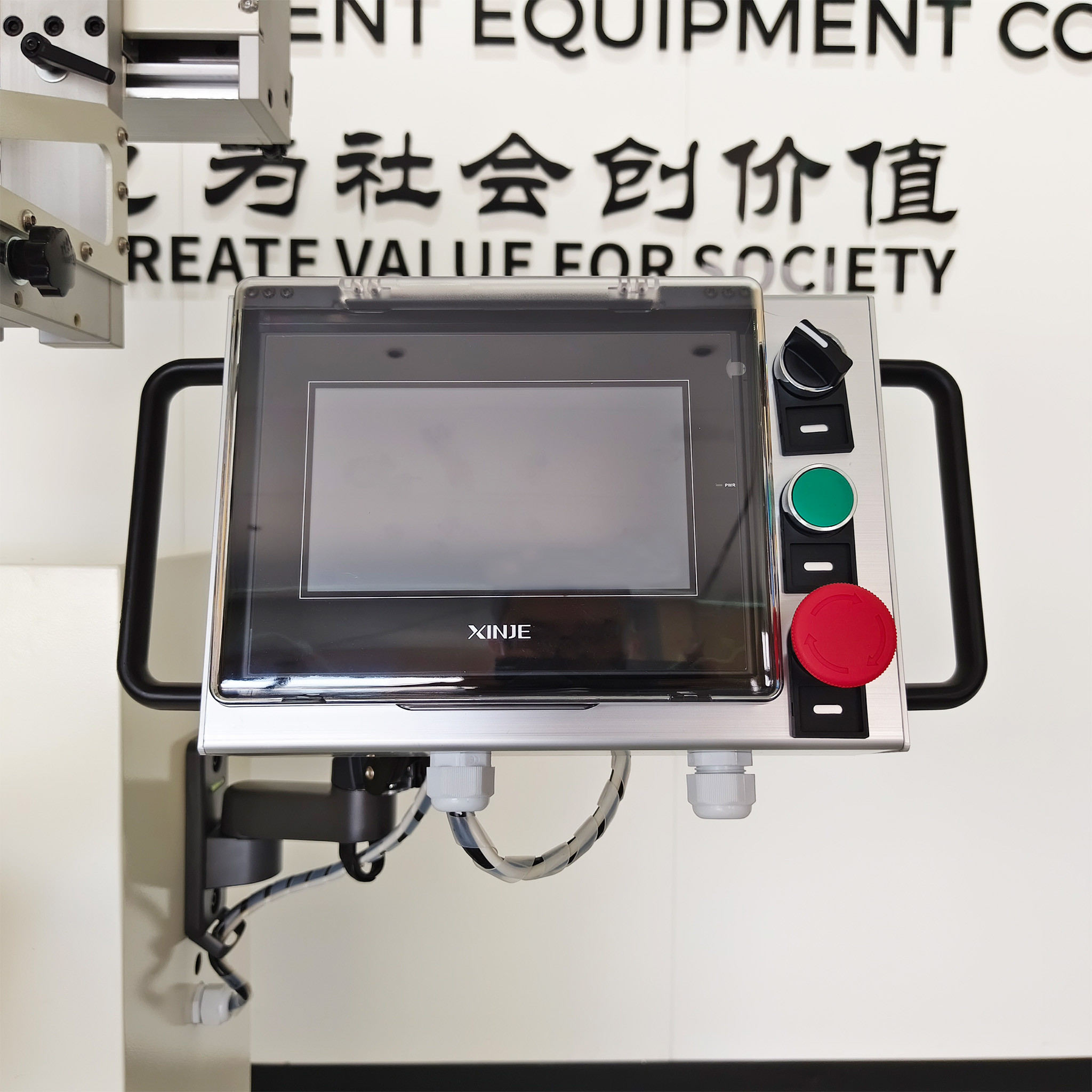

① PLC program control circuit, human-machine interface control, user-friendly operation.

②Vertical structure, the screen moves vertically up and down, and the printing head moves left and right.

③ The printing and screen lifting mechanisms use independent drive sources, ensuring coordinated movements and stable, adjustable speeds.

④ The printing press holder is driven by a servo system, and the stroke is controlled by a photoelectric eye, with independent adjustment.

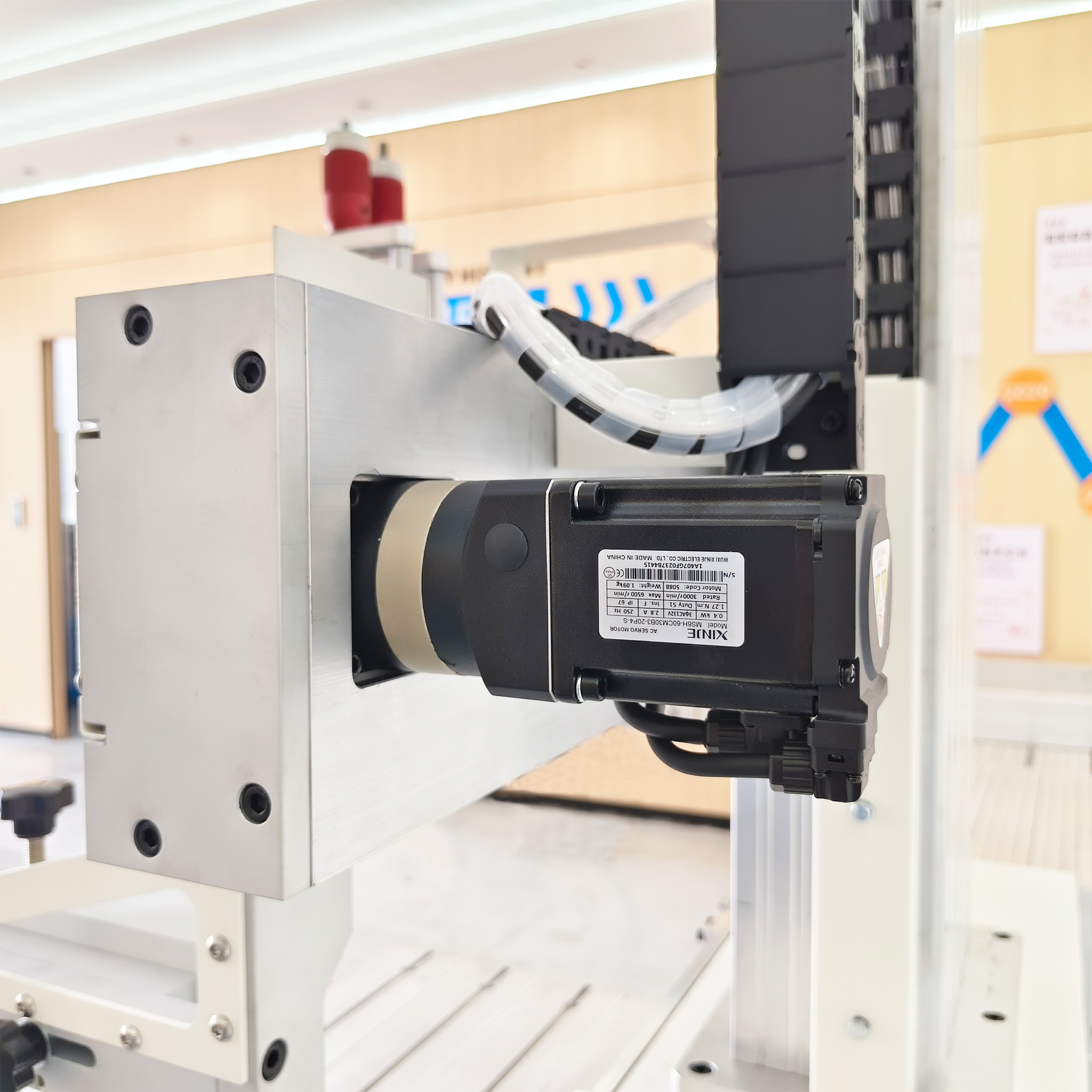

⑤ The printing drive servo motor ensures smooth operation.

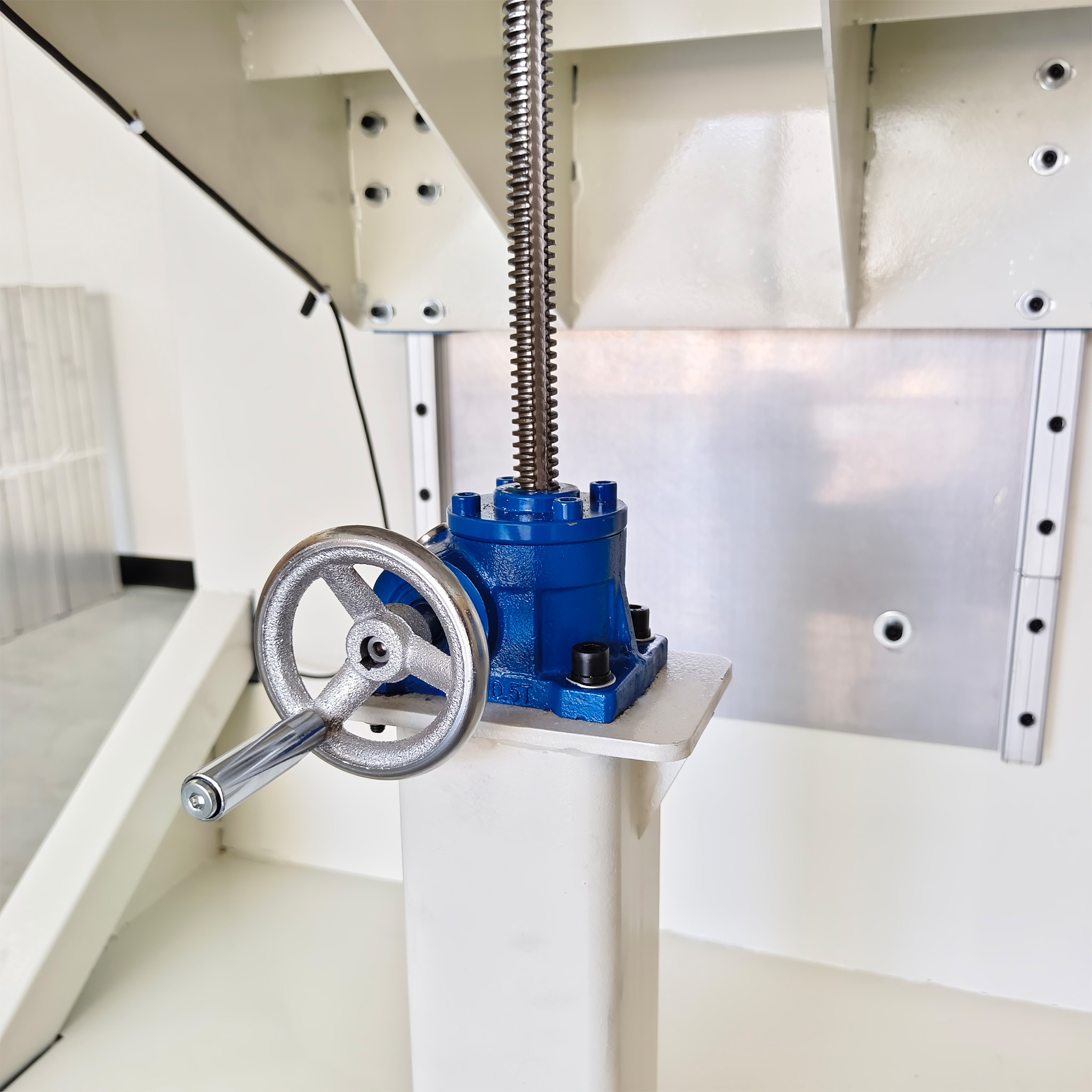

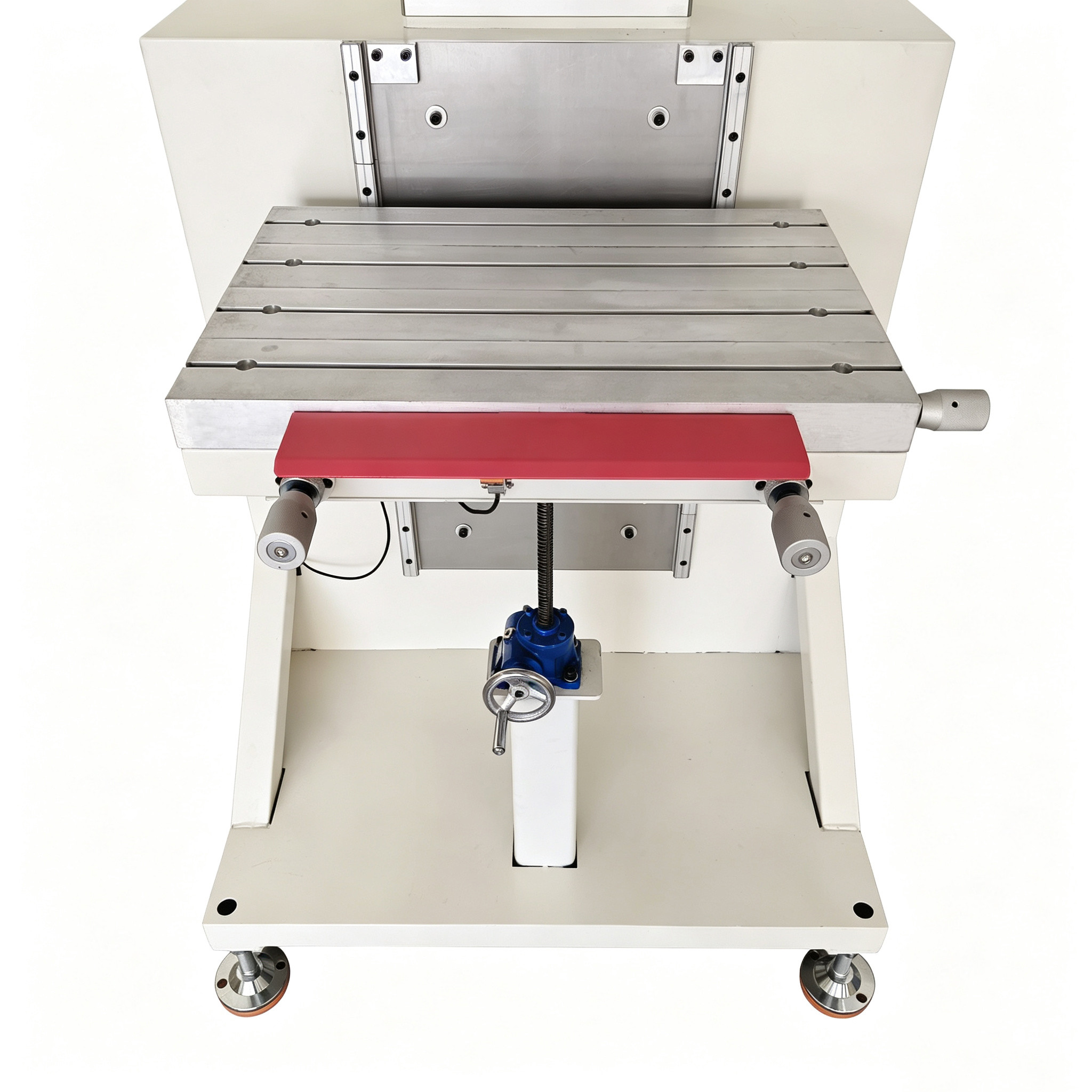

⑥ The printing platform is height-adjustable , and is equipped with precision micro-adjustment handles in both horizontal and vertical directions for accurate micro-adjustment and convenient color registration.

⑦ It has three printing modes: manual, semi-automatic, and fully automatic, with digital control of the automatic printing indirect time (1~9 seconds).

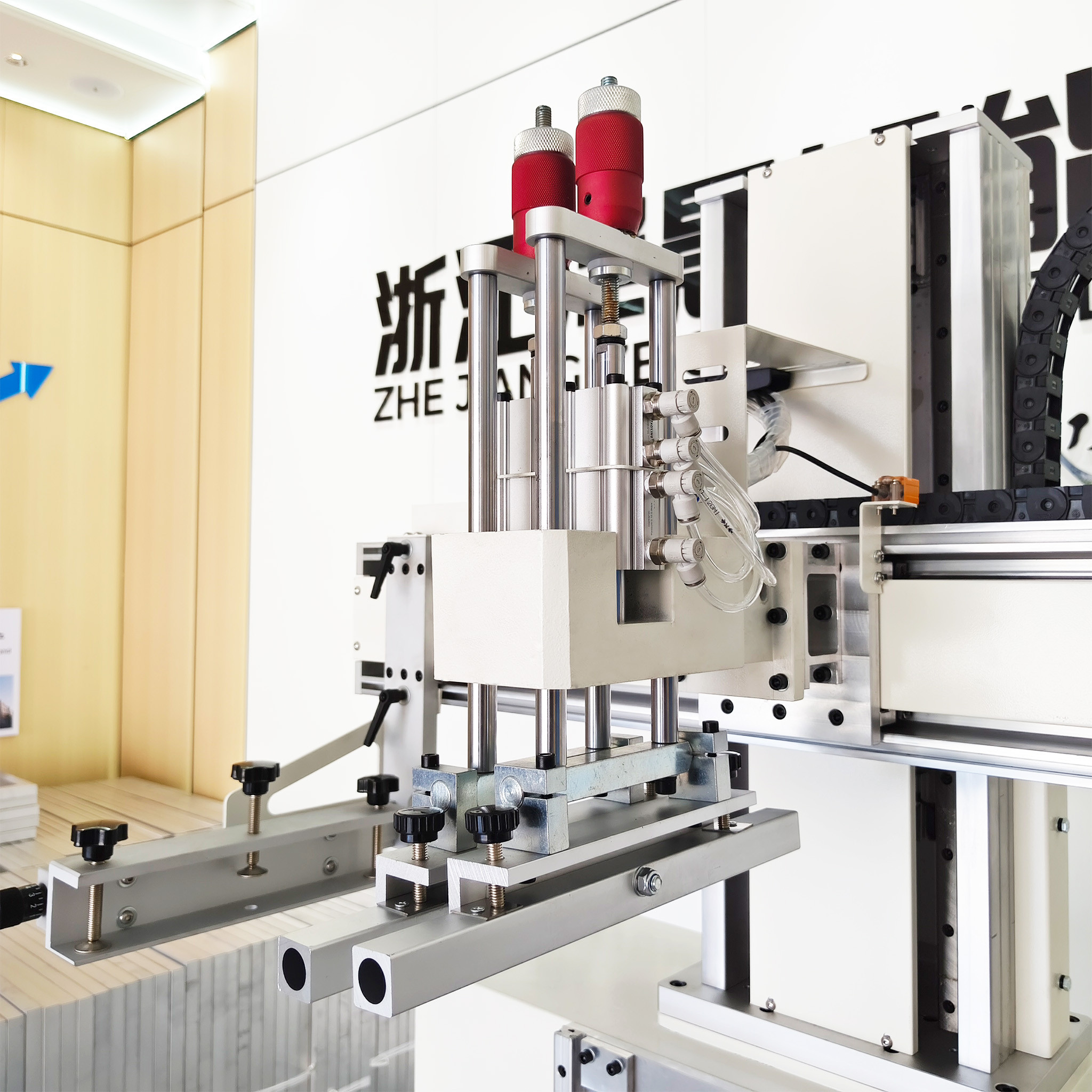

⑧ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

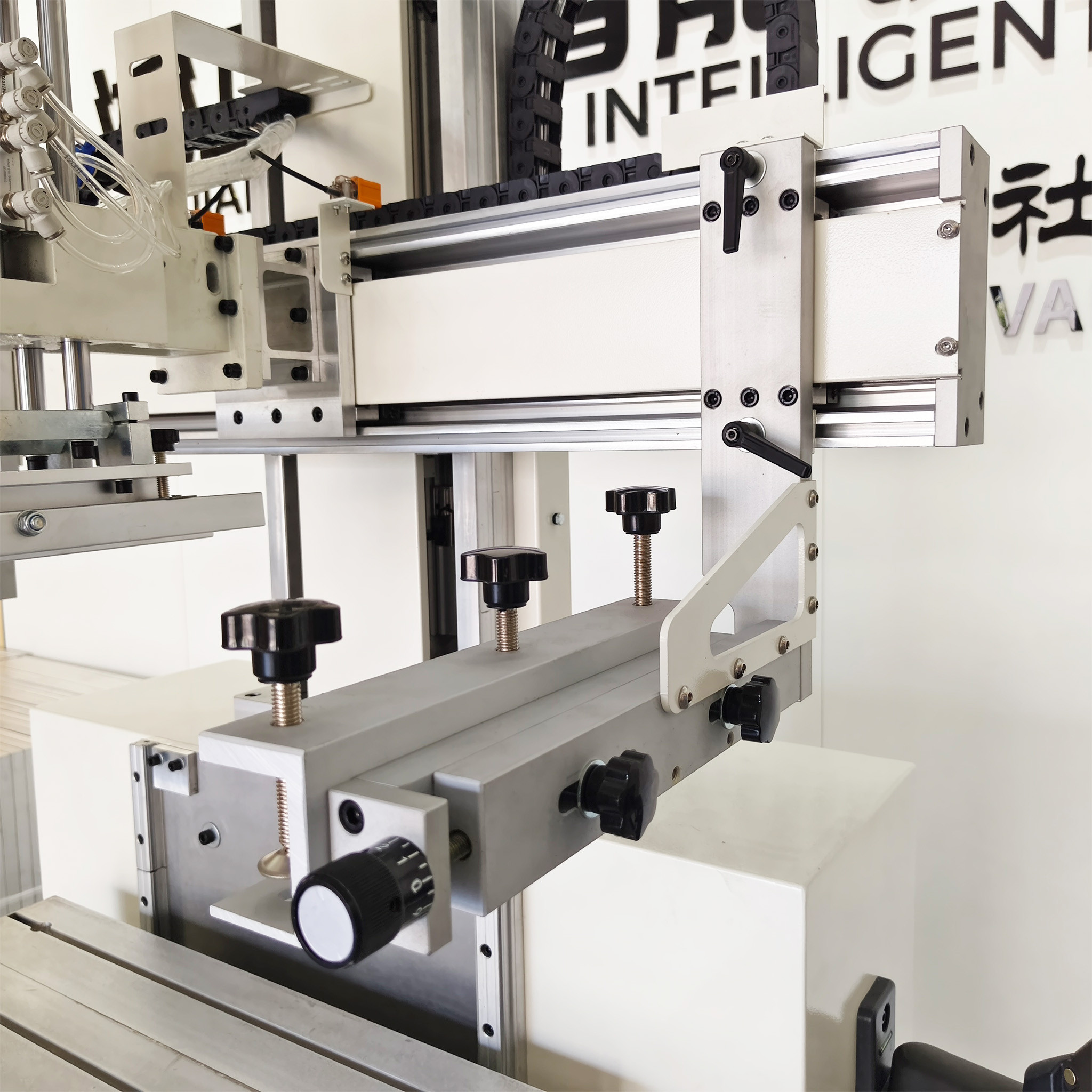

⑨ The left and right mesh clamp arms are equipped with a screen spacing adjustment device for easy adjustment.

⑩ The angle and balance of the squeegee and ink return can be adjusted.

⑪ The printing table adopts a vacuum suction work surface, which makes it easy to fix the printing sheet .

Specification

Model			TX-4060SF-L
Platform Size			500*700mm
Substrate Thickness			≤60mm
Max Printing Area			400*600mm
Printing speed			500-800 pcs/h
Maximum screen frame size			700*900mm
Printing product height			≤600mm
Worktable Displacement			±5mm
Power Consumption			220V/50HZ /1.2KW
Printing pressure			0.5-0.7 MPa
Machine Dimension			L1400 W900 H1850 mm
Machine Weight			200KG

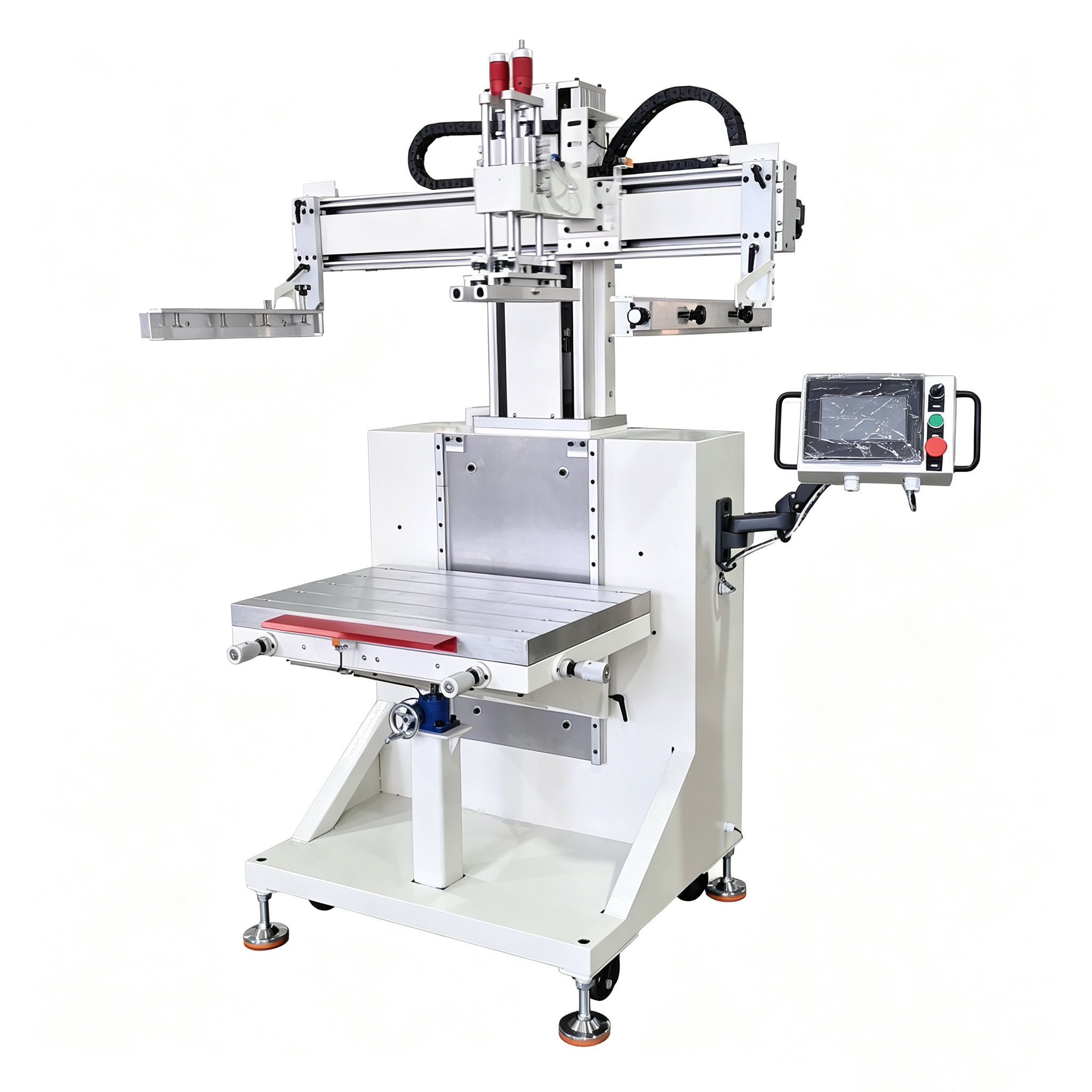

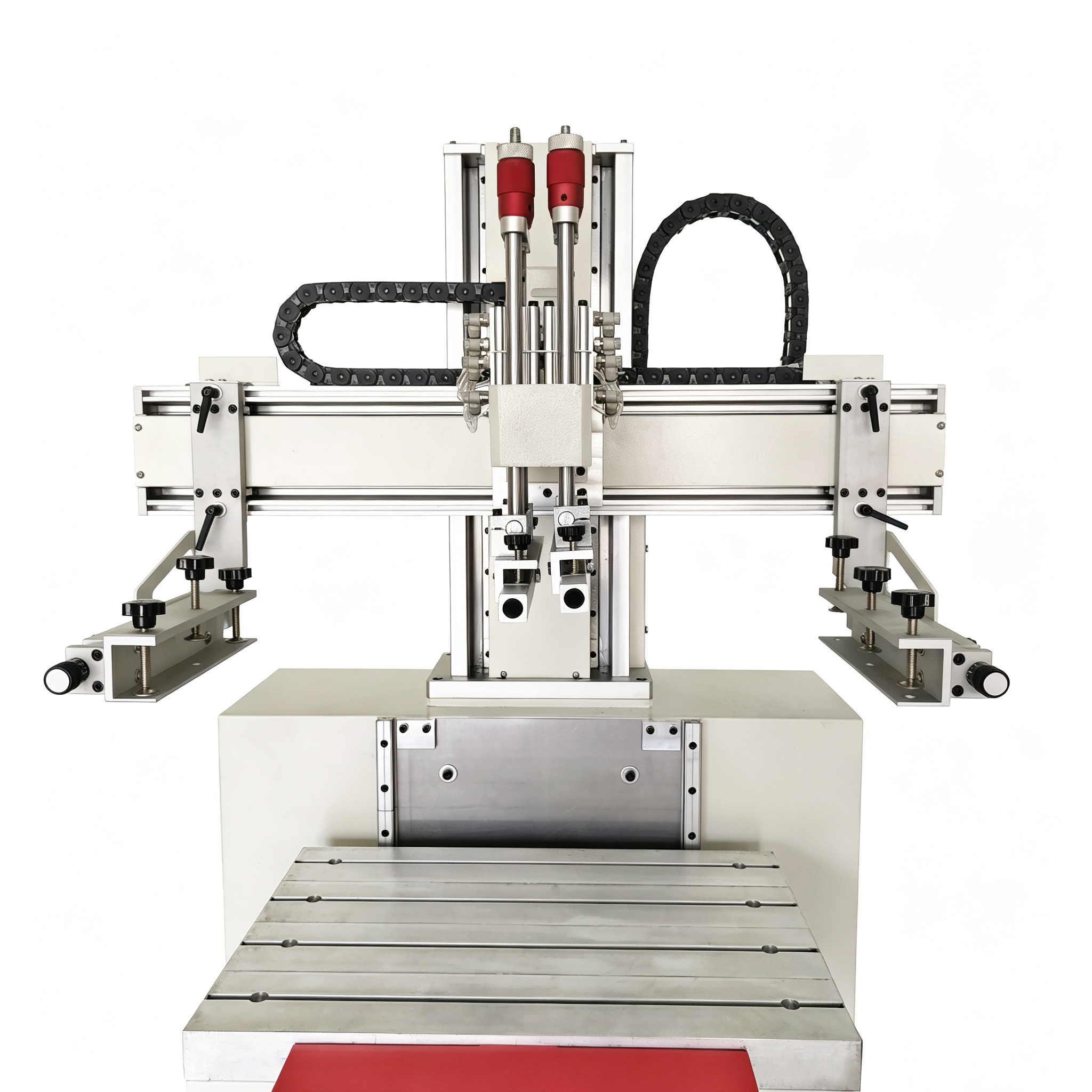

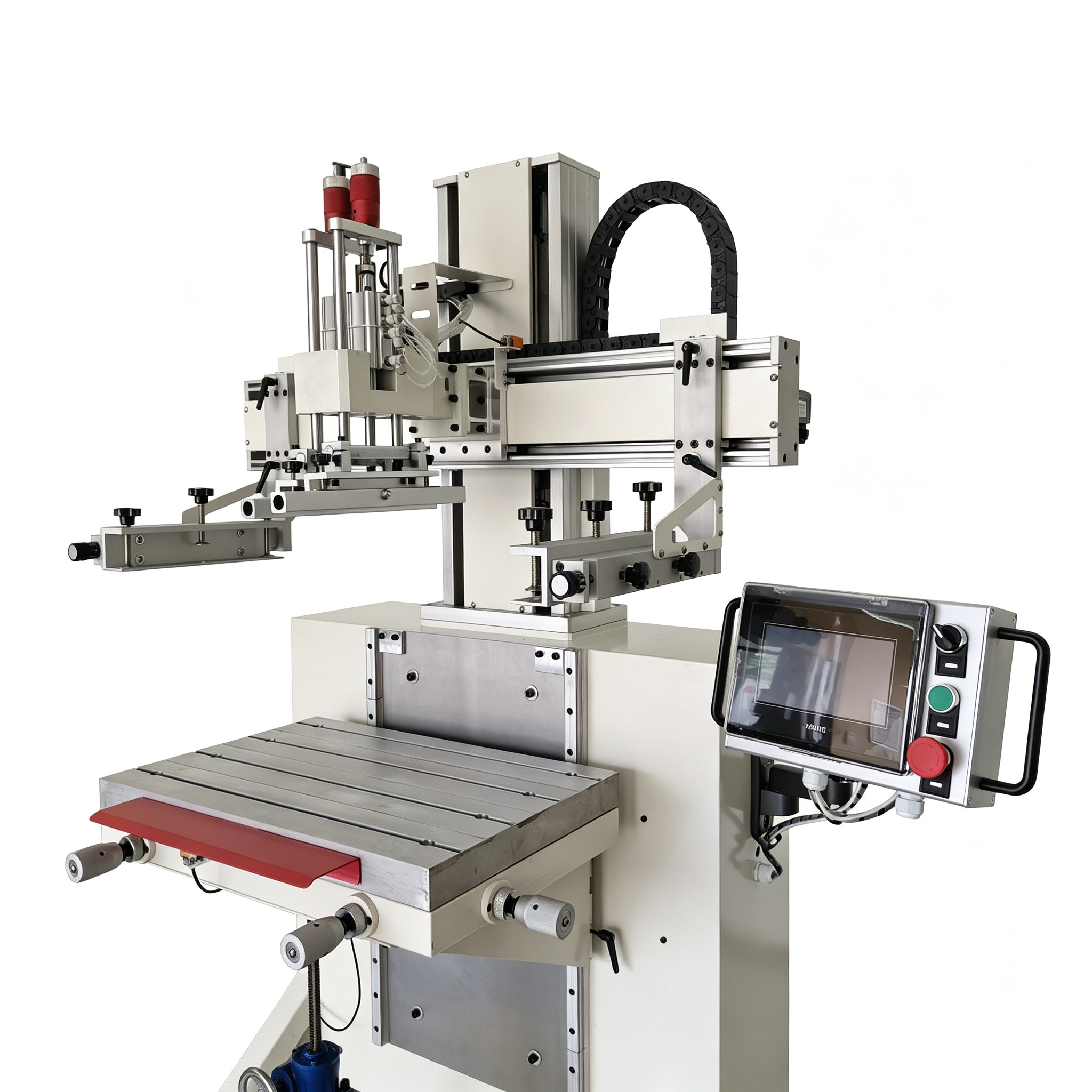

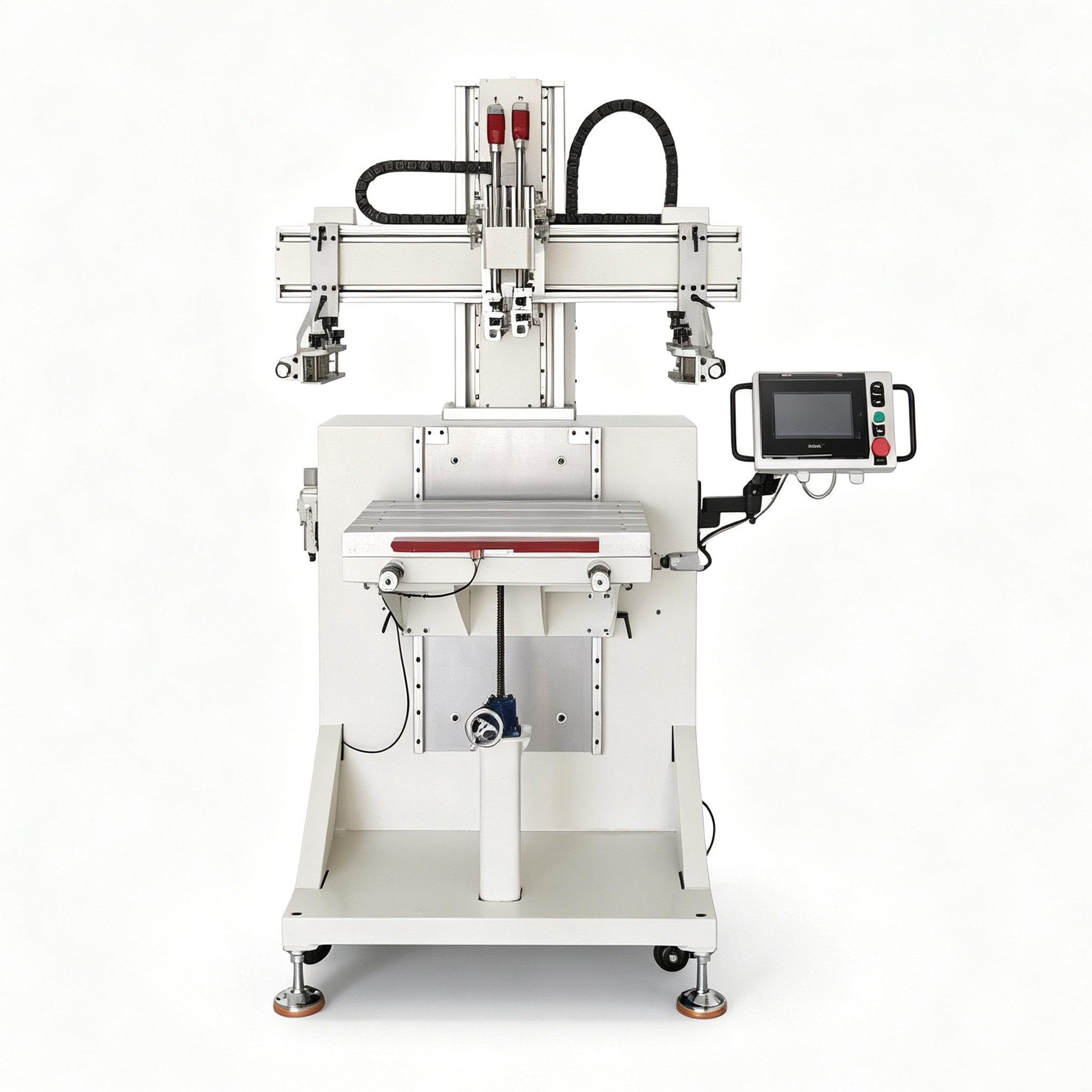

Machine image

Printing Samples

Configuration Instructions

① The machine is controlled by a microcomputer .

② The circuit uses Delixi AC contactors and Philicos photoelectric proximity switches.

③ The printing process uses a Taiwanese brand geared motor and a Taiwanese brand frequency converter to control the printing drive.

④ The printing doctor blade and ink return blade are controlled by pneumatic components from a Taiwanese brand .

⑤ The left and right horizontal scraping uses HIWIN precision linear guides made in Taiwan.

⑥ The printing plate is filled with an aluminum honeycomb structure, with a hard anodized surface and suction holes .
