T-Slot Heightened Electric Flatbed Screen Printing Machine TX-4060ST For Suitcase and Plastic Box

This 4060S-T type groove heightened flat screen printing machine is suitable for positioning printing of cuboid products such as plastic parts, sheet metal parts, storage boxes, and wooden boxes .

Share
Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-4060ST-T
Printing color	Single color
Operating mode	Semi-automatic
Printing speed	800 pcs/hr
Maximum mesh frame size	600*1000mm
Printing size	400*600mm
Printing Thickness	≤300mm
Printing pressure	4.0~6.0 kfg/c㎡
Voltage/power	AC220V / 2.5 KW
Dimension	L1200W900 H1950mm
Printing type	Screen Printing Machine
Weight	398KG
Platform size	500*700mm
Printing accuracy	± 0.02mm
FOB port	Shanghai or Ningbo
Terms of Payment	T/T
Download

Contact Now

Favorites

Detail Information

Introduction of TX-4060ST-T Slot Heightened Electric Flatbed Screen Printing Machine

Application:

This 4060ST-T type groove heightened flat screen printing machine is suitable for positioning printing of cuboid products such as plastic parts, sheet metal parts, suitcase,storage boxes, and plastic boxes .

Main performance

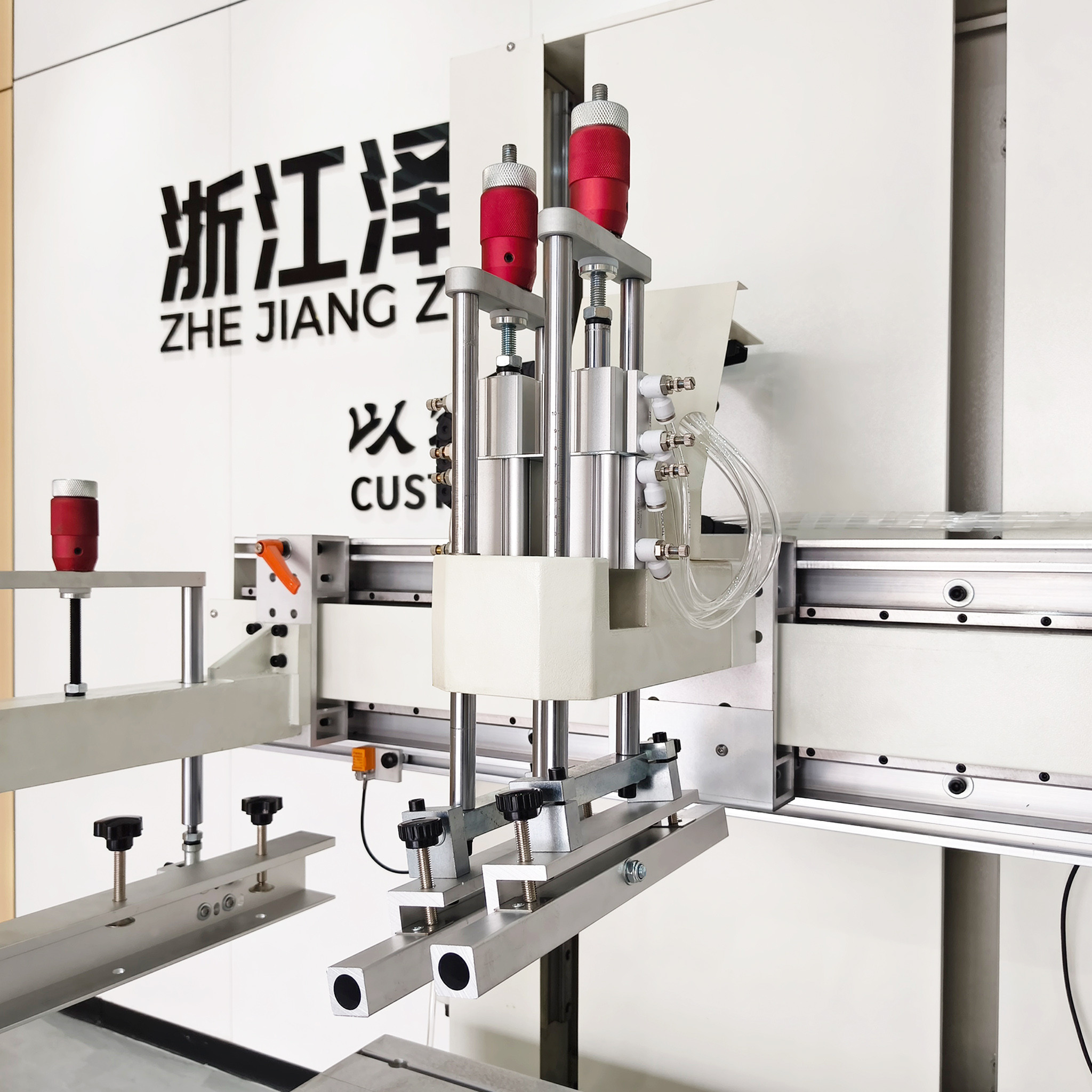

1. Vertical structure, the screen moves vertically up and down, and the printing head moves left and right.

2. The printing and screen printing elevators use independent drive sources, ensuring coordinated movements and stable, adjustable speeds.

3. The printing platform is equipped with precision torque handles in both the horizontal and vertical directions, ensuring accurate precision and convenient color registration.

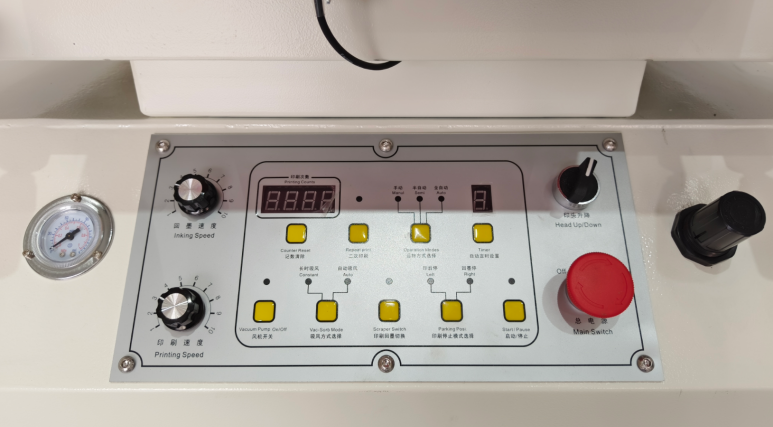

4. Set manual/semi-automatic/default printing mode, with digital control of automatic printing interval time (1~9 seconds).

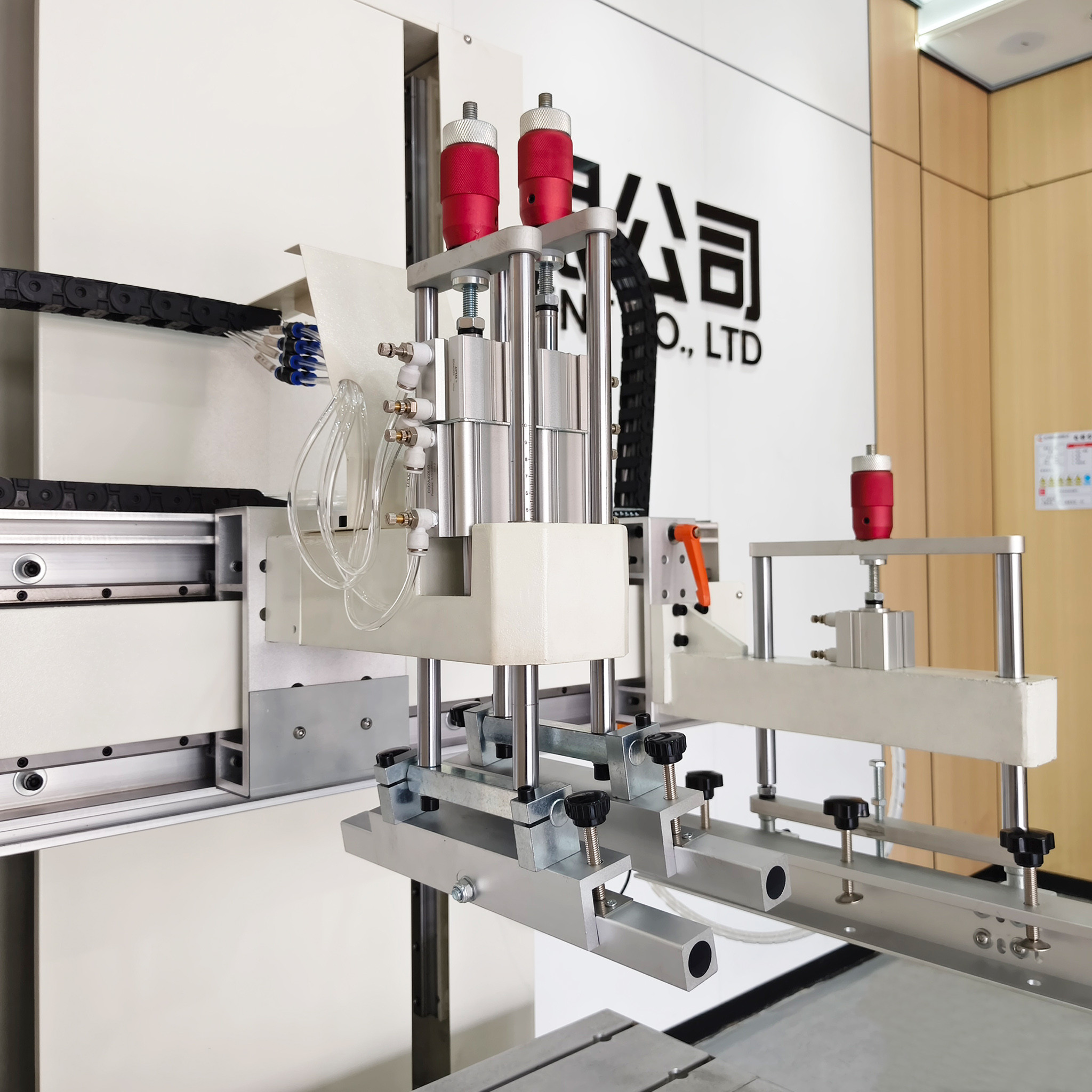

5. The independently designed printing head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

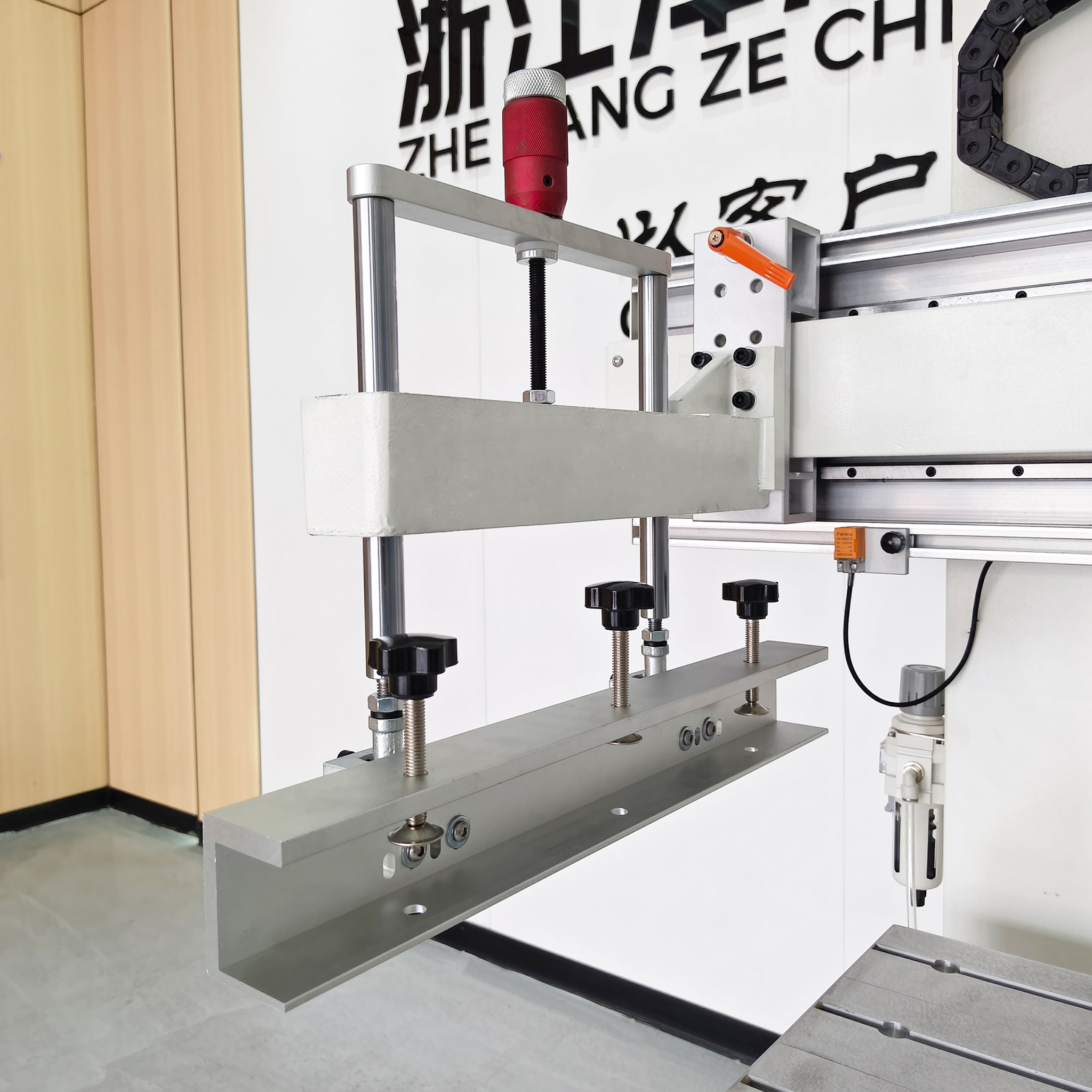

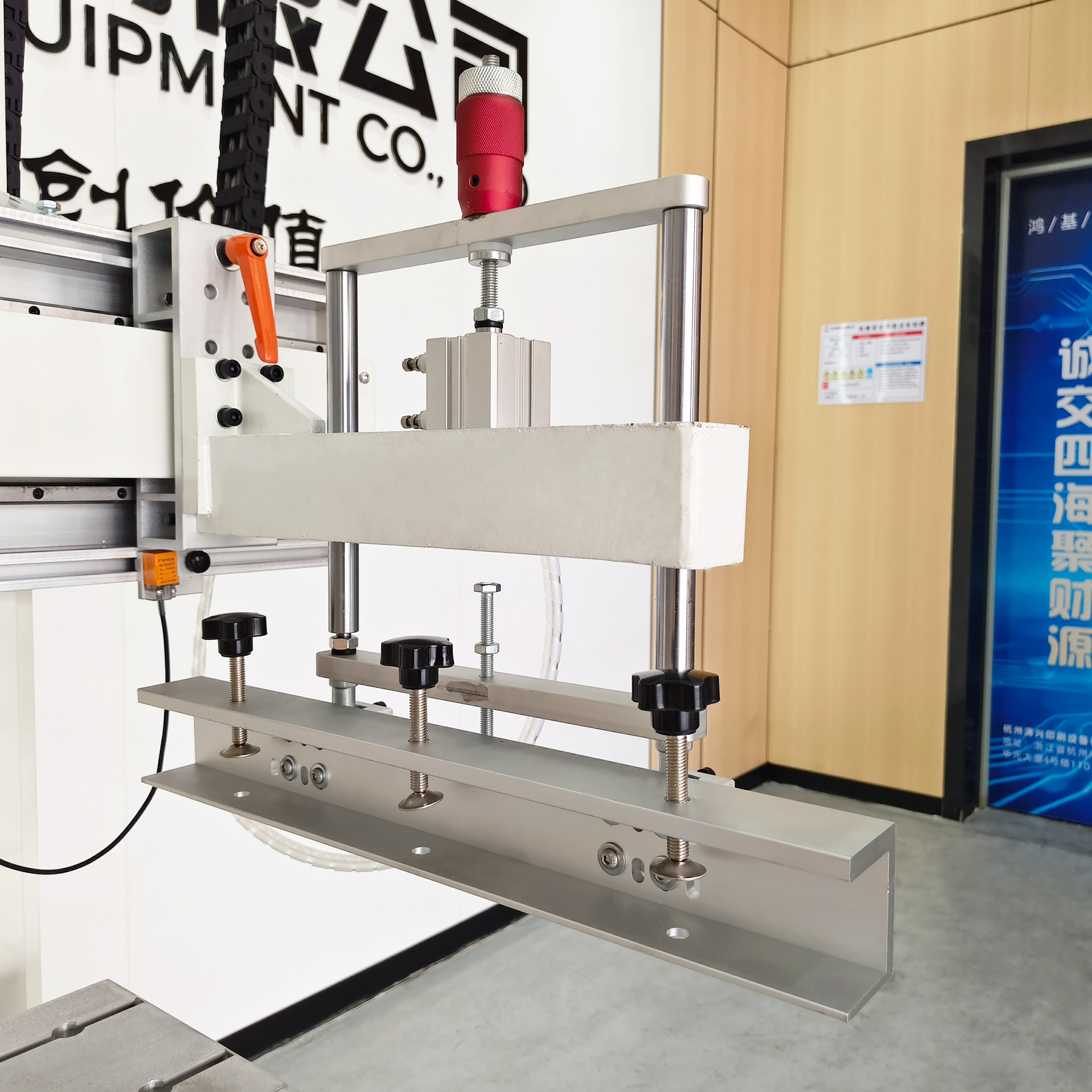

6. The left and right mesh clamp arms are equipped with a screen spacing adjustment device for easy adjustment.

7. The nurse adjusts the angle and balance of the scraping and ink return processes.

8. The machine is equipped with a screen distance adjustment handwheel at the rear, which can quickly adjust the screen distance.

9. The machine is equipped with safety protection devices, consistent with those of the safety department, to ensure the safety of workers during operation.

Specification

Model			TX-4060ST-T
Platform Size			500*700mm
Substrate Thickness			≤50 mm
Max Printing Area			400*600mm
Printing speed			800 pcs/h
Maximum screen frame size			600*1000mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /2.5KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			L1200W900H1950mm
Machine Weight			398KG

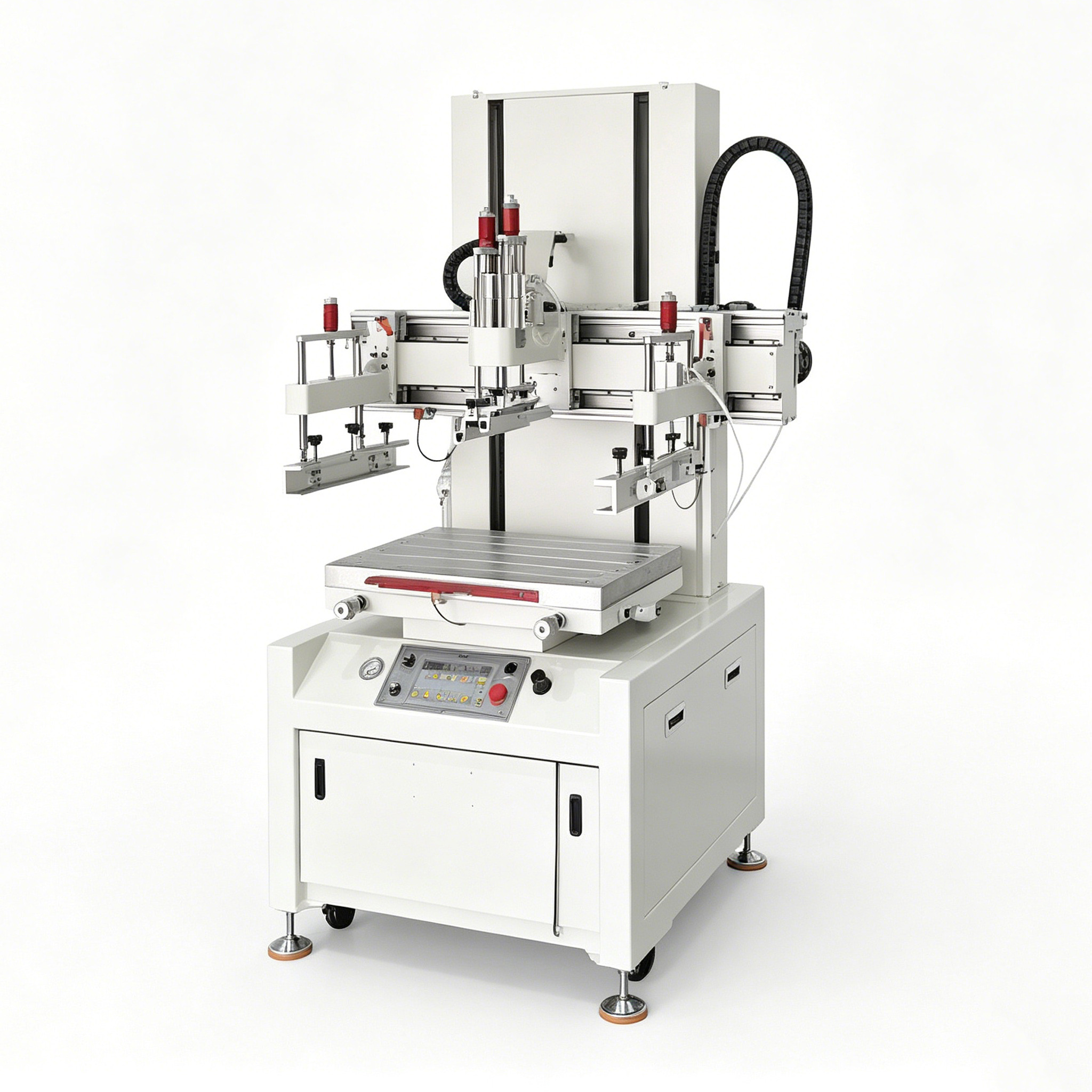

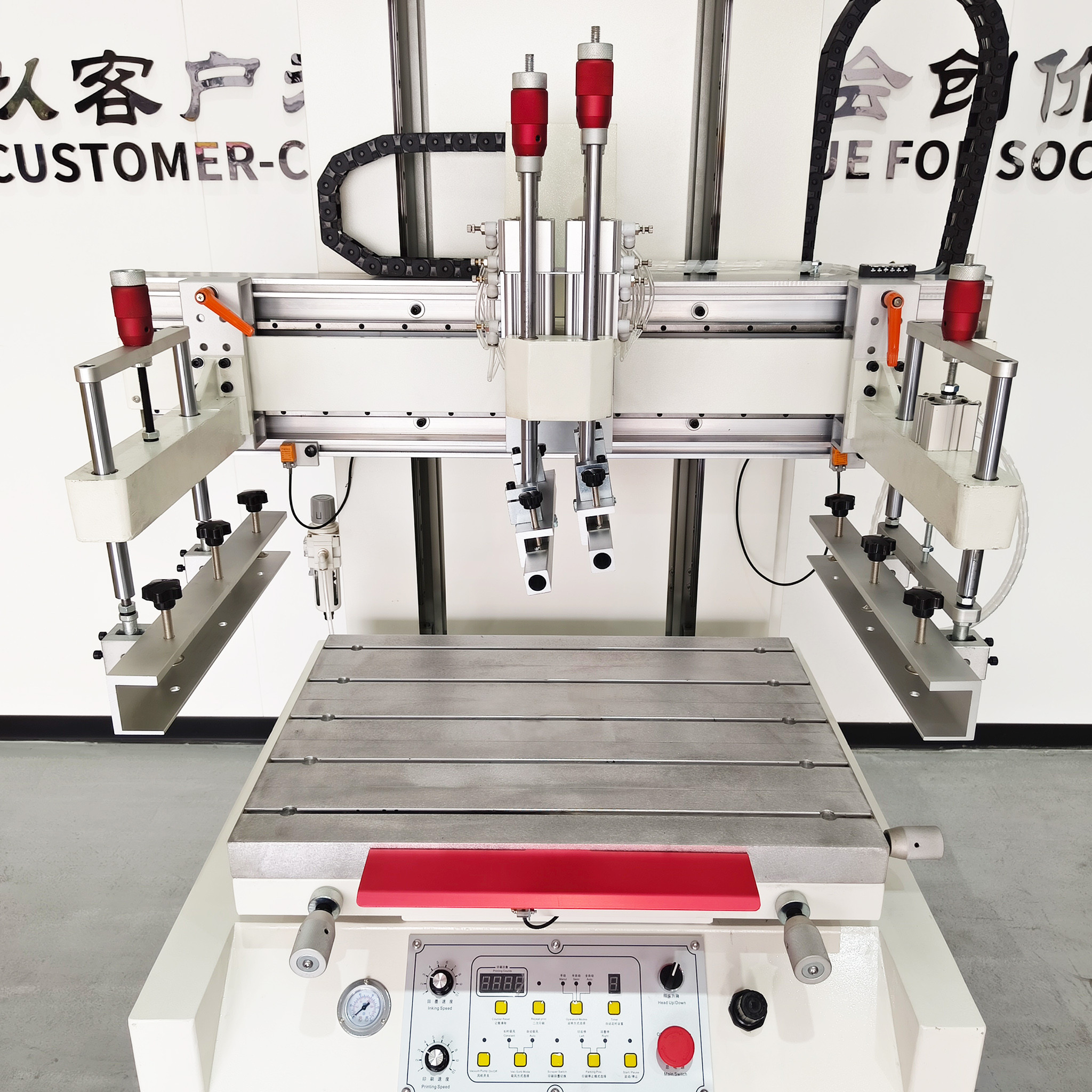

Machine image

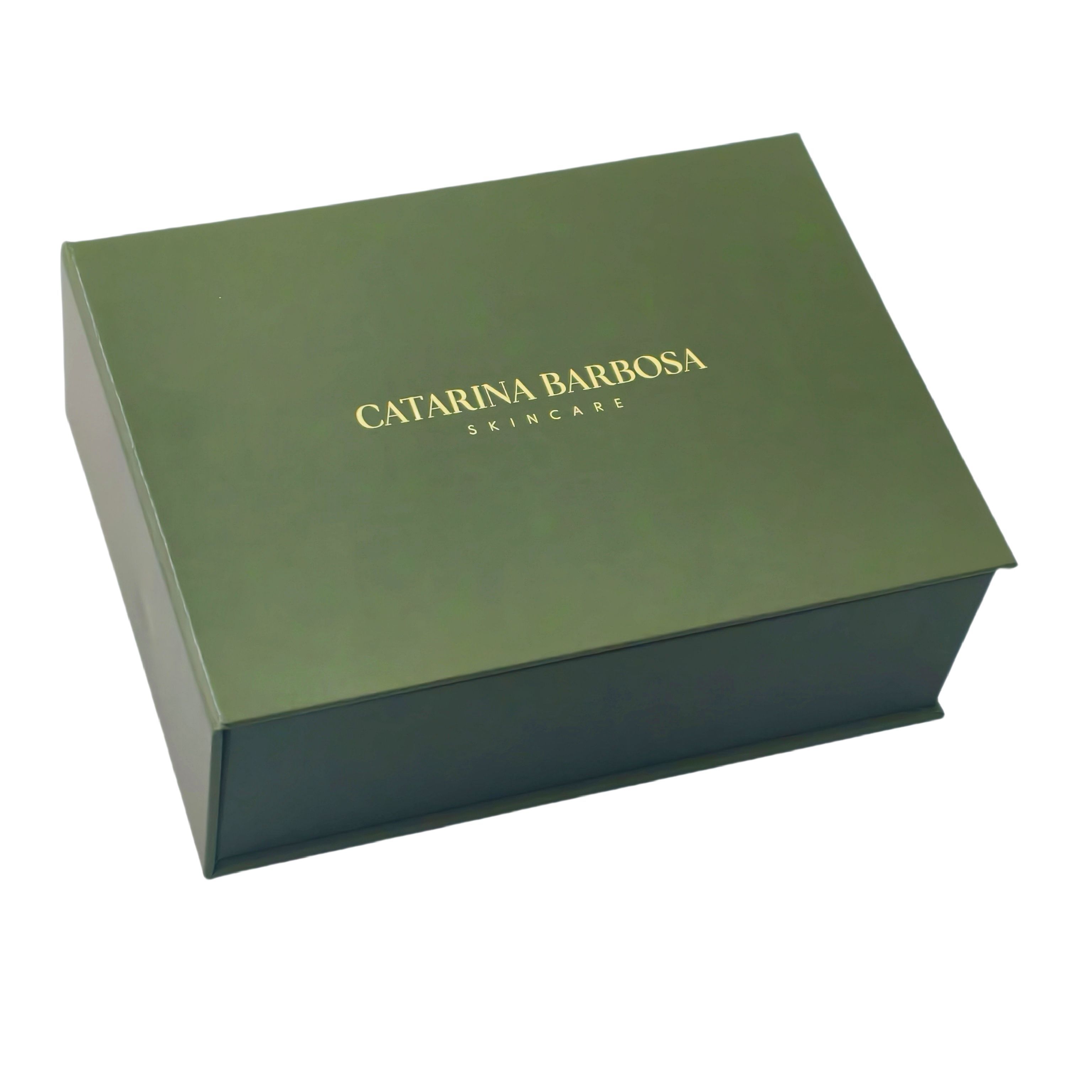

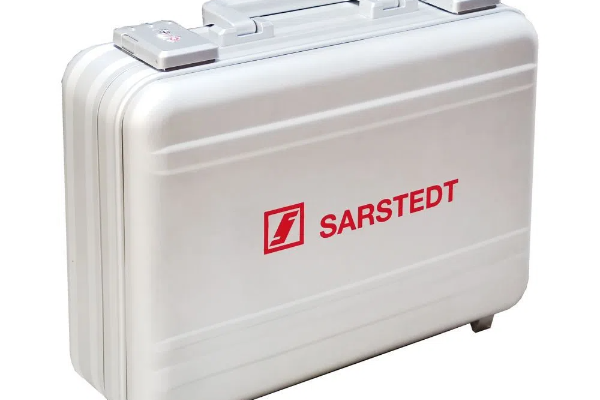

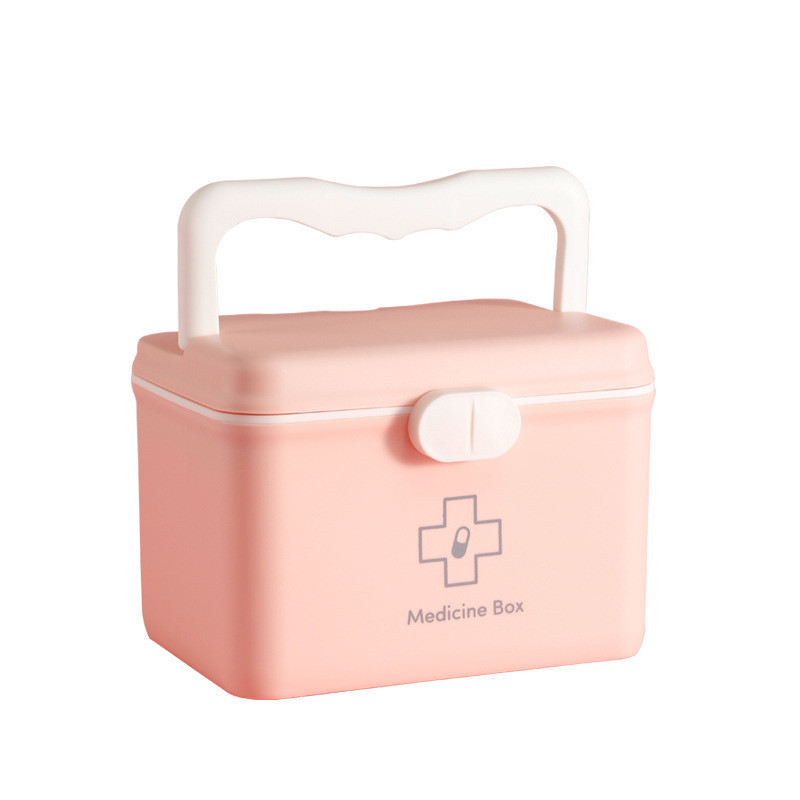

Printing Samples

Configuration Instructions

① The machine is controlled by a microcomputer .

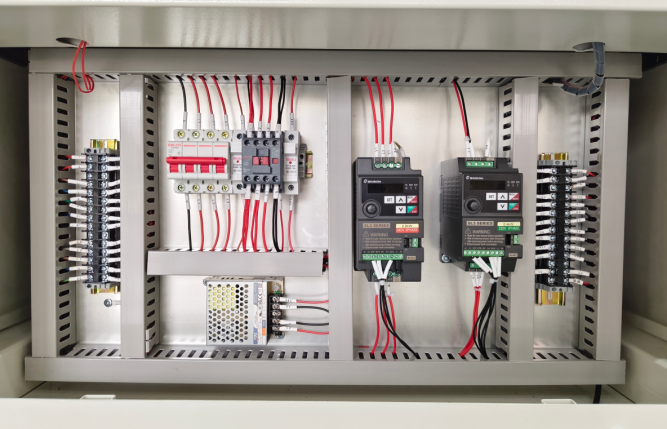

② The circuit uses Delixi AC contactors and Philicos photoelectric proximity switches.

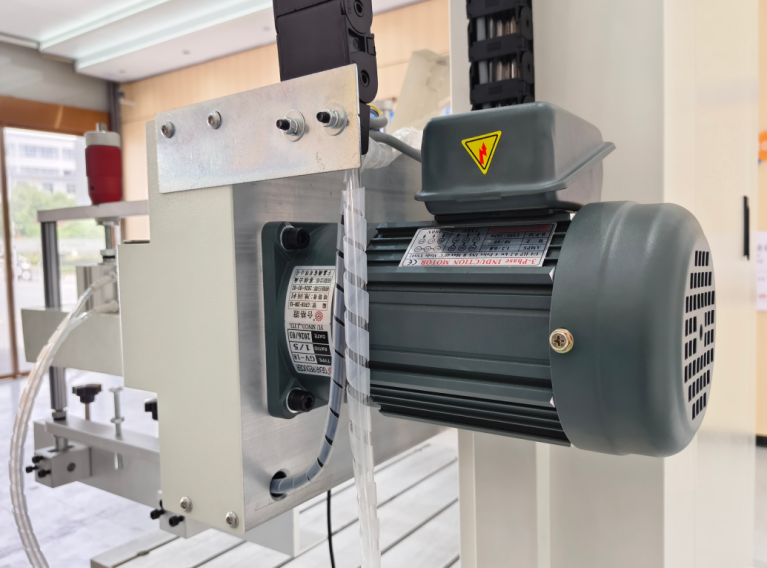

③ The printing process uses a Taiwanese brand geared motor and a Taiwanese brand frequency converter to control the printing drive.

④ The printing doctor blade and ink return blade are controlled by pneumatic components from a Taiwanese brand .

⑤ The left and right horizontal scraping uses HIWIN precision linear guides made in Taiwan.

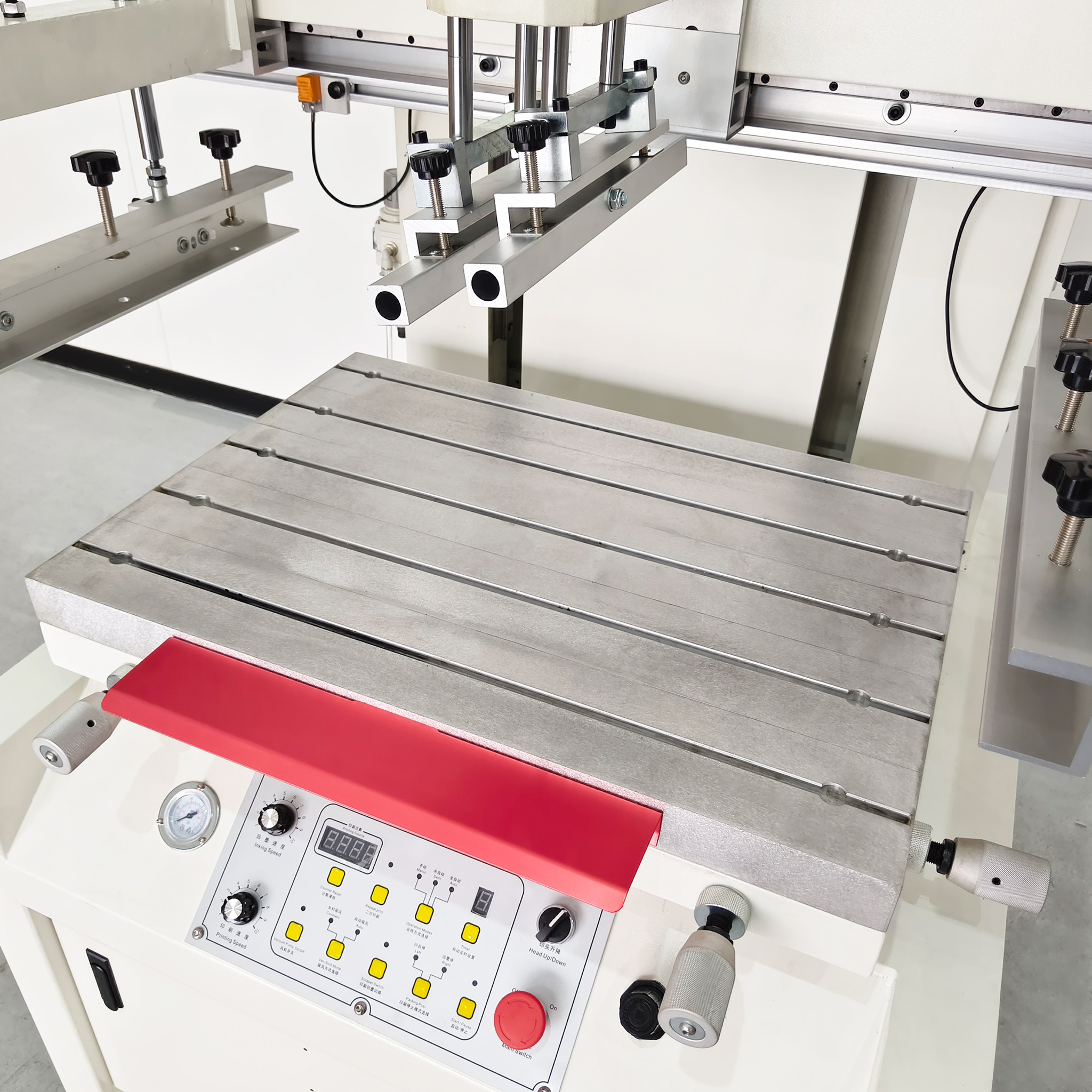

⑥ The printing plate is filled with an aluminum honeycomb structure, with a hard anodized surface and suction holes .
