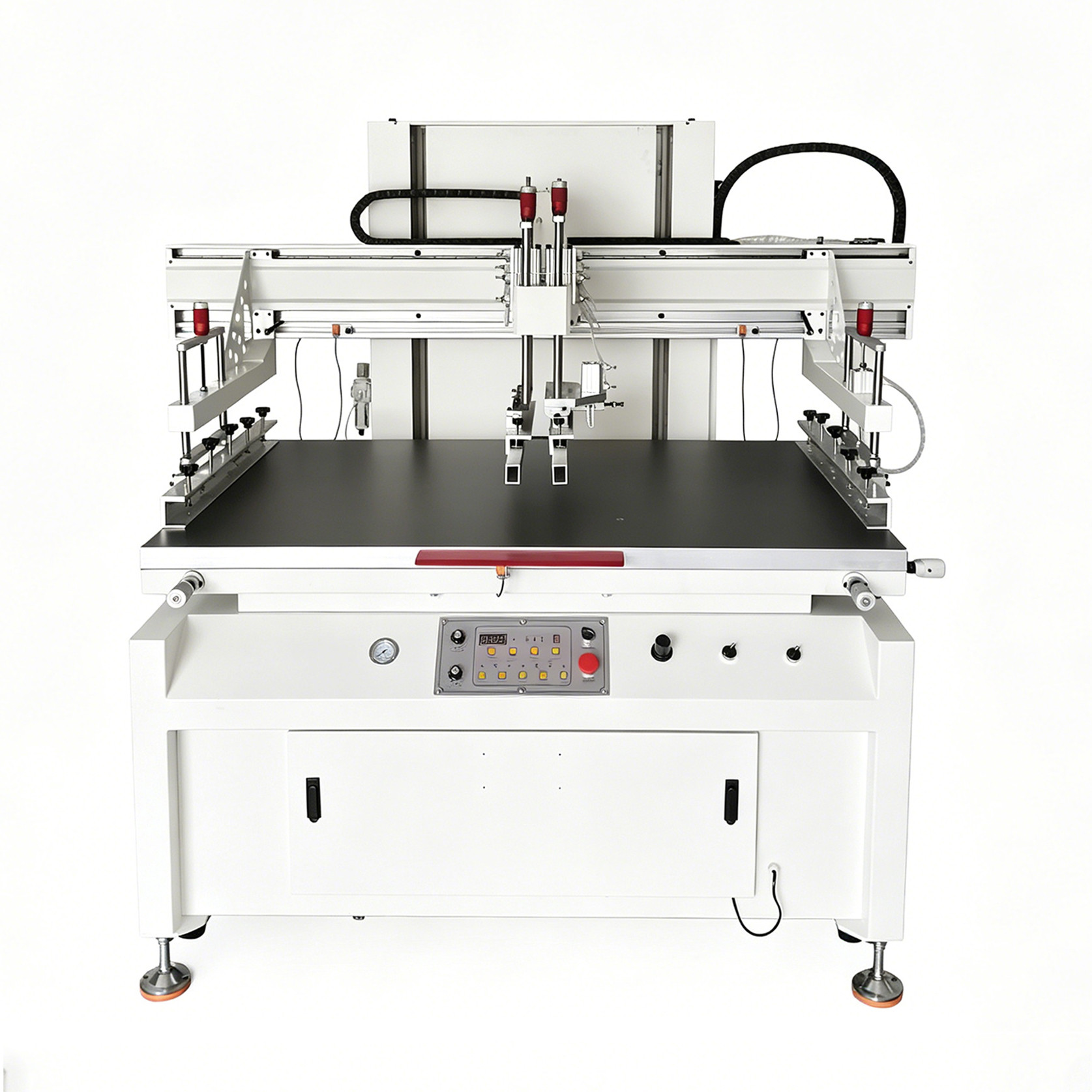

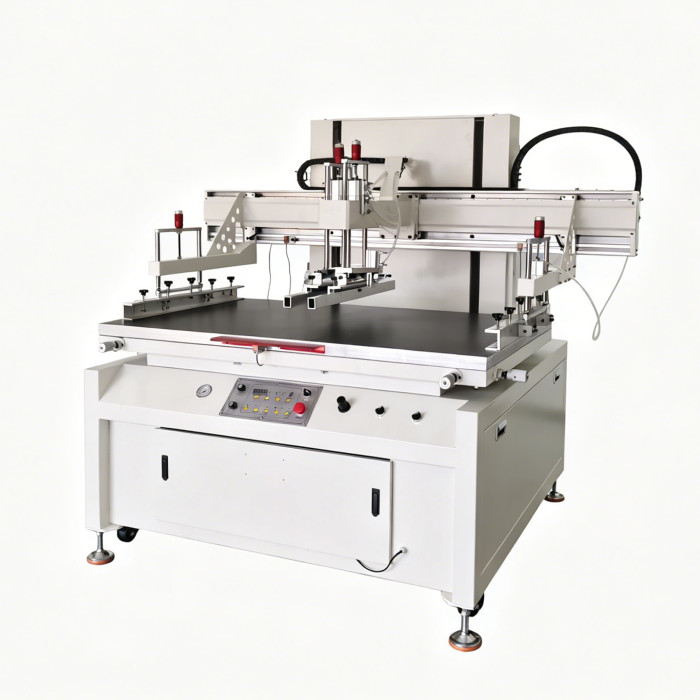

New Design Anti-drip Ink Electric Flatbed Screen Printing Machine TX-90140ST For Wooden Boards and Steel Plates

2. The microcomputer control circuit uses independent motors to drive both printing and screen lifting .

3. The switching of the printing /return ink blade holder is driven by a Taiwanese brand cylinder , with the stroke controlled by a photoelectric eye and independently calibrated.

4. Three modes are available: manual, semi-automatic, and fully automatic, with digital control of printing indirect time.

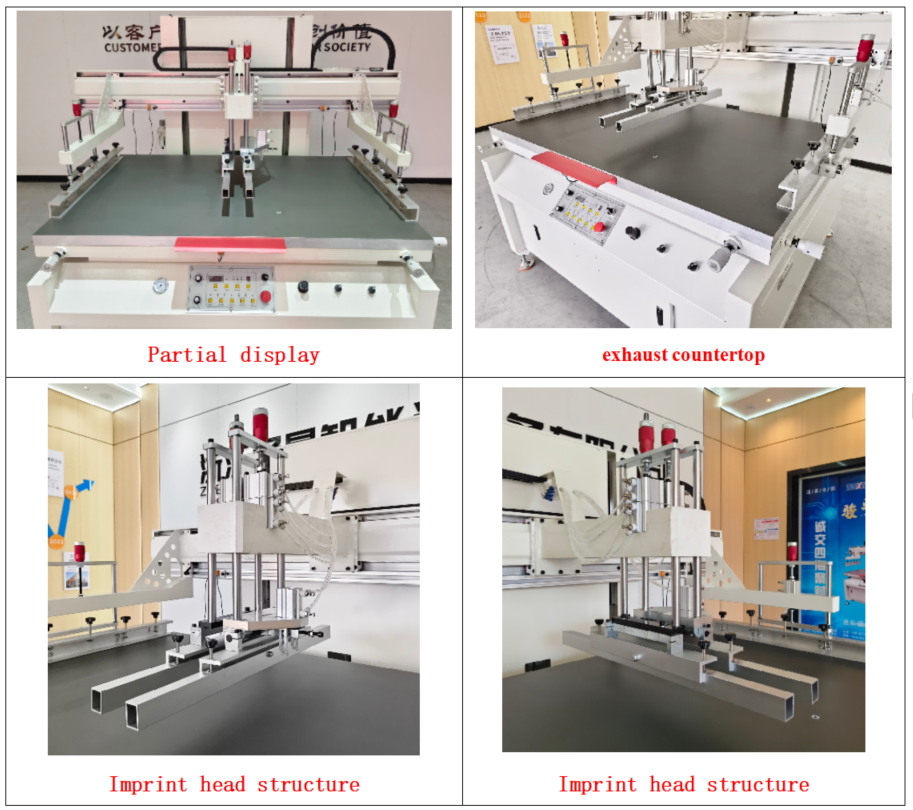

5. The independently designed printing head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.

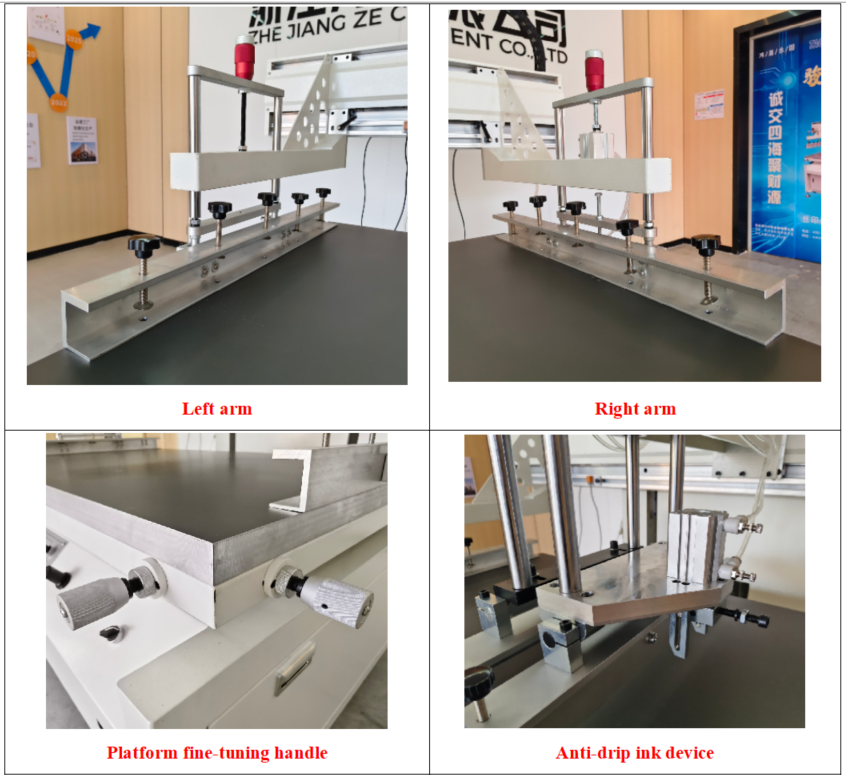

6. The left and right mesh clamps are equipped with double guide posts and a plate spacing adjustment device for easy adjustment.

7. The print head is equipped with an anti-drip device , which can effectively prevent ink from dripping onto the board when the print head is lifted.

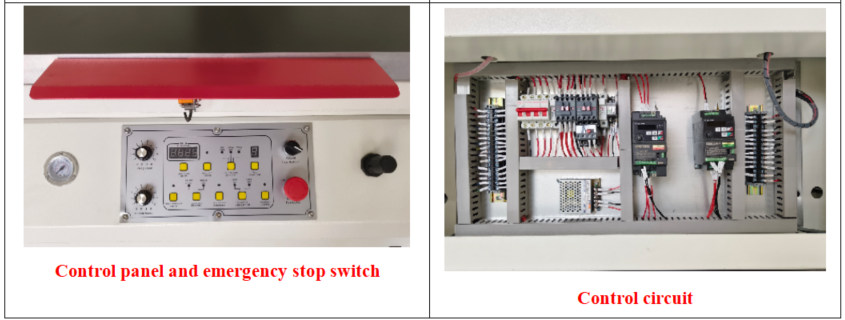

② The circuit uses Delixi AC contactors and Philicos photoelectric proximity switches.

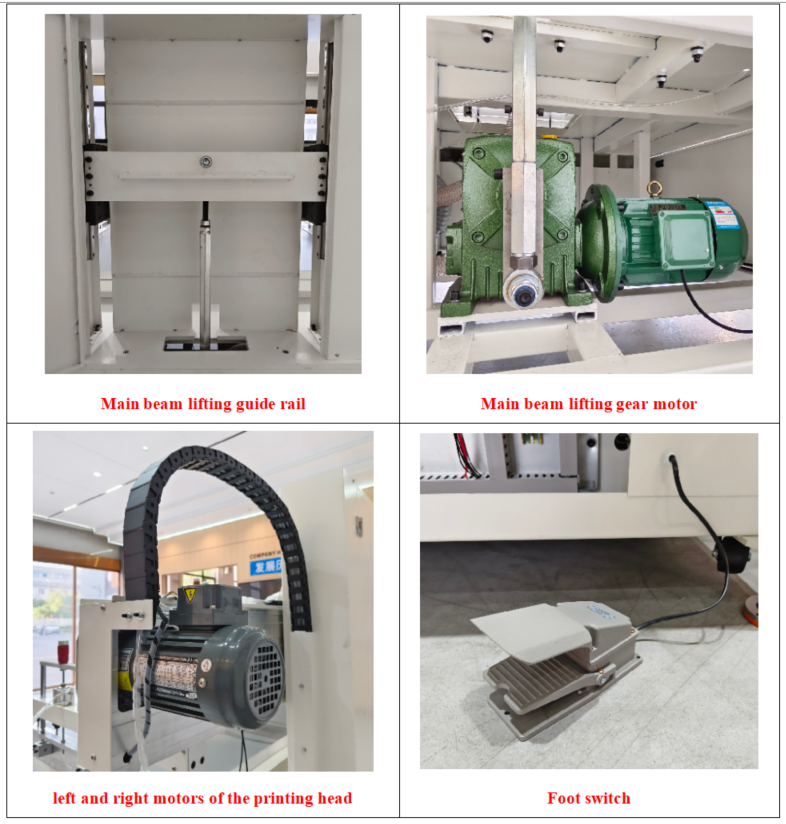

③ The printing process uses a Taiwanese brand geared motor and a Taiwanese brand frequency converter to control the printing drive.

④ The printing doctor blade and ink return blade are controlled by pneumatic components from a Taiwanese brand .

⑤ The left and right horizontal scraping uses HIWIN precision linear guides made in Taiwan.

⑥ The printing plate is filled with an aluminum honeycomb structure, with a hard anodized surface and suction holes .

② The worktable is a critical component affecting printing quality. To prevent impacts from hard objects, ink, thinner, and other organic solvents must not be dripped onto the worktable surface during printing.

③ The control panel and buttons should be protected from direct or indirect contact with solvents such as thinner and thinner to prevent damage.

④ The purpose of painting the frame is to prevent the machine from rusting. It is important to prevent solvents such as thinner and thinner from coming into direct or indirect contact with the machine and causing damage.

⑤ Wastewater and dirt should be drained from the oil mist combiner promptly to prevent them from entering the pneumatic components and affecting normal operation. The oil cup should be cleaned regularly, and 2 % lubricating oil should be added to the oil cup of the oil mist combiner.

⑥ When adjusting the flow restrictor valve, the tightening nut must be loosened first before adjusting by hand. The handle screw on the machine is for positioning; once it is securely positioned, it does not need to be tightened excessively.

⑦ After work, turn off the power / gas supply, clean the wire mesh, and store it properly. Protect it from dust , pressure , and puncture by hard objects.
